High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell

Large Image : High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE,ISO
Model Number:	GN-HS200

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD1260/PCS
Packaging Details:	wood
Delivery Time:	5-8work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100Pcs/days

Contact Now

High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell

Description

Product Description

1) The machine can be used for different sizes batteries and can be adjusted easily by speed governing (or changing) clamps or adjusting (or changing ) end cover.

2) Top and bottom end covers are drove by two cylinders, moving elastically.

3) The cover is made of cooper material, having good heat effectiveness and saving electricity.

4) The pressure of top end cover can be adjusted by valve regulation.

5) The temperature of top and bottom end covers can be adjusted by temperature controller.

6) The machine has the warning function on temperature anomaly.

7) The Machine has great protective function with safety light curtain and double buttons protection.

8) The machine has PLC controller for easily operating. It's light for carrying.

9) The machine's rack is made of aluminium with good-looking. It can take manual operation while testing machine and take PLC auto-operation while bulk producing.

Machine Specification:

Name	Model/Spec	Name	Model/Spec
Suitable size	≤20020012MM	Dimension	450×300×400MM
Production capacity	600EA/H	Weight	37KG
degree of parallelism of sealing head	±0.01mm	Input power supply	AC220V 50HZ
Sealing width	8MM	Power	1.0KW
Temperature error	±2°C	Input air source	0.6Mpa
Compressed air pipe diameter	Φ8MM	RH	20~90%RH
suitable thickness of aluminium film	0.1-0.3MM	Current temperature	10~35°C
Sealing method	Soft sealing

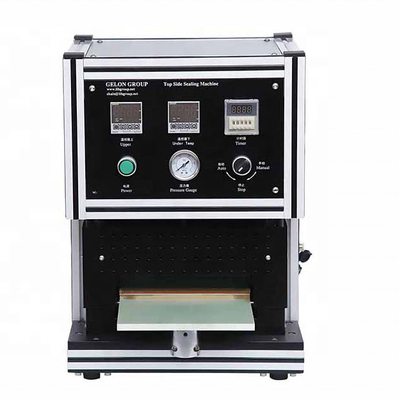

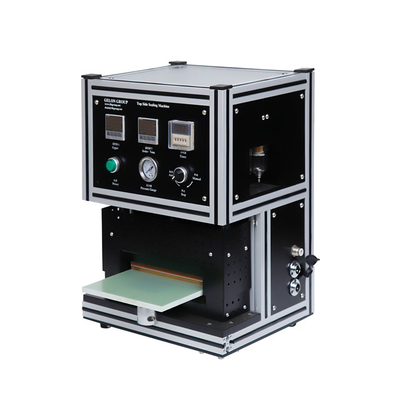

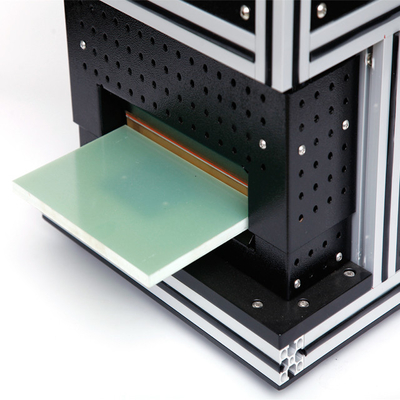

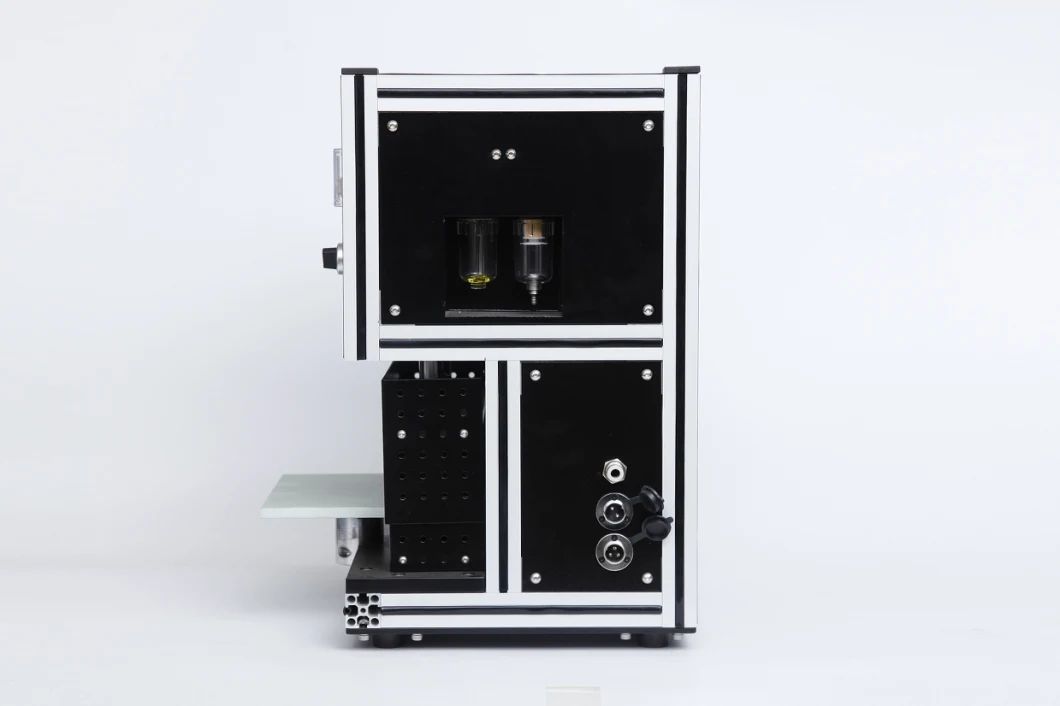

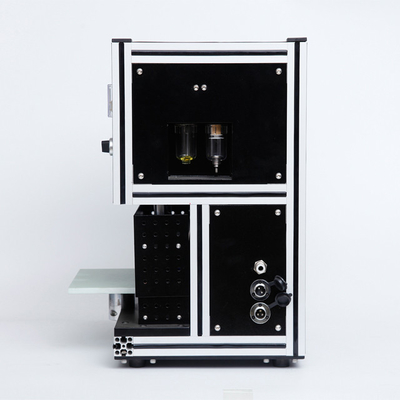

Picture:

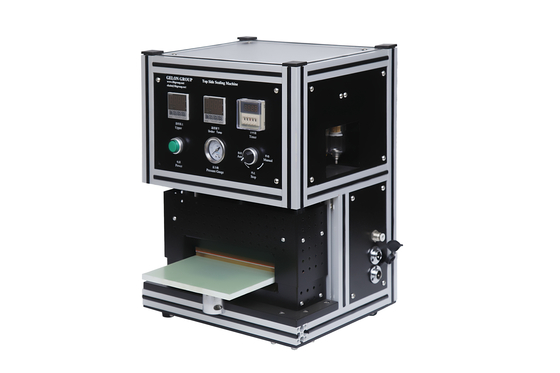

High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell 0

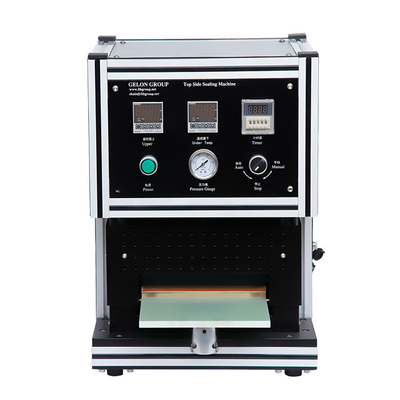

High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell 1

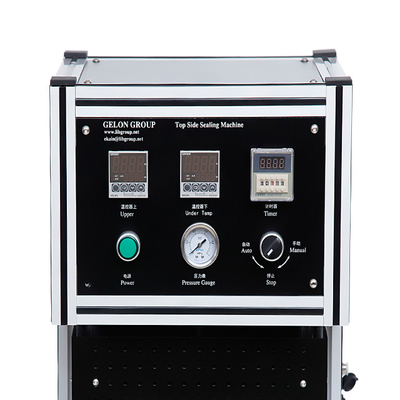

High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell 2

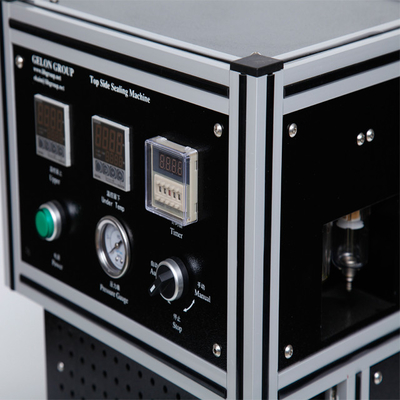

High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell 3

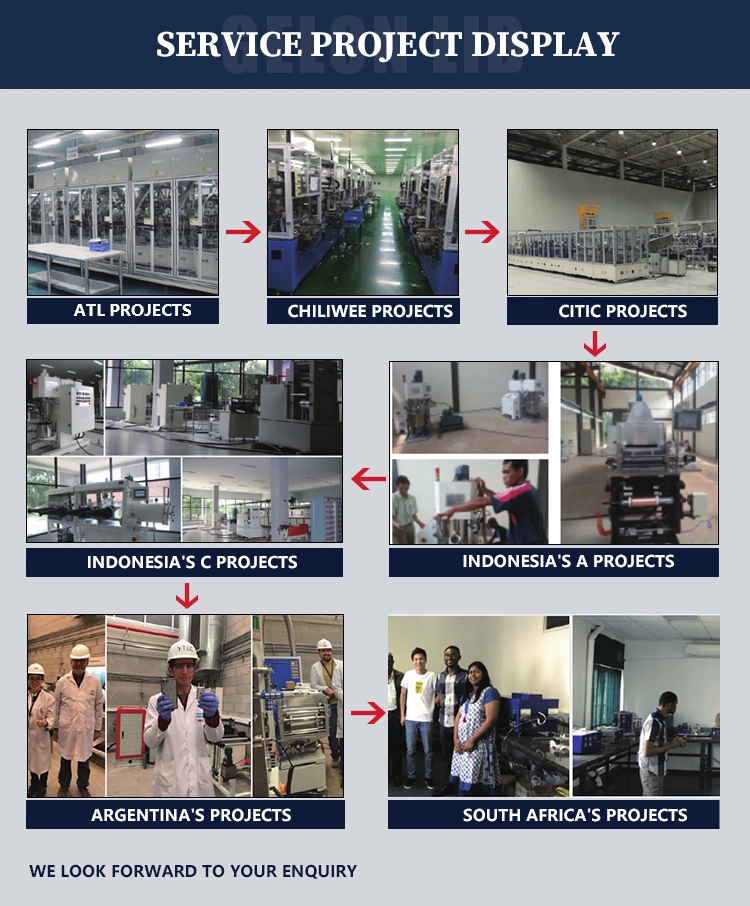

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
