100mm Roll Width Hot Rolling Press Machine with 0.01mm Gap Adjust Precision and SS316 Roll Material for Lithium Ion Battery Assembly

Large Image : 100mm Roll Width Hot Rolling Press Machine with 0.01mm Gap Adjust Precision and SS316 Roll Material for Lithium Ion Battery Assembly

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-MR-100H

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden box
Delivery Time:	within 15 days
Supply Ability:	100set/month

Contact Now

100mm Roll Width Hot Rolling Press Machine with 0.01mm Gap Adjust Precision and SS316 Roll Material for Lithium Ion Battery Assembly

Description

Product Name:	Battery Rolling Press Machine	Roll Diameter:	Φ96mm
Roll Gap:	0~1.2 Mm（can Be Adjusted）	Roll Width:	100mm
Roll Gap Adjust Precision:	0.01mm	Roll Material:	SS316
Speed:	Max.50mm/s	Power:	1800W
Net Weight:	About 65kg
Highlight:	Pouch Cell Assembly Equipment SS316 , 100mm hot rolling press machine , 50mm / s Pouch Cell Assembly Equipment

Lithium Ion Battery Pouch Cell Assembly Equipment 100mm Hot Rolling Press Machine

Lithium ion battery laboratory equipment 100mm width small hot rolling press machine designed for precision battery assembly applications.

Technical Specifications

Parameter	Specification	Remarks
Roll diameter	Φ96mm
Roll gap	0~1.2 mm	Can be adjusted
Roll width	100mm
Roll effective width	95mm
Roll gap adjust precision	0.01mm
Up/down roll heating temperature	Suggest heating temperature: 60℃-80℃	Roll heating temperature Max: 200℃
Roll material	S136
Roll hardness	Surface hardness ≥HRC55° Hardness layer thickness≥10mm	Hardness decays after heating at 200℃＜5%
Roll driving	Use special motor	Can be used under argon gas
Speed	Max. 50mm/s	Can be adjusted
Power supply	AC220V/50Hz, 110V/60Hz	Can be customized according to customer requirements
Power	1800W
Equipment size	About L550W250H390mm	Filler gauge size included
Package size	About L650W340H510mm
Net weight	About 65kg
Gross weight	About 74kg
Use the venue		It can be used in the glove box. Please check whether the space of the glove box matches the overall size of the equipment.

Packaging & Shipping

Standard exported package: Internal anticollision protection, external export wooden box packaging
Shipping by FedEx, by air, or by sea according to customers' requirements to find the most suitable way

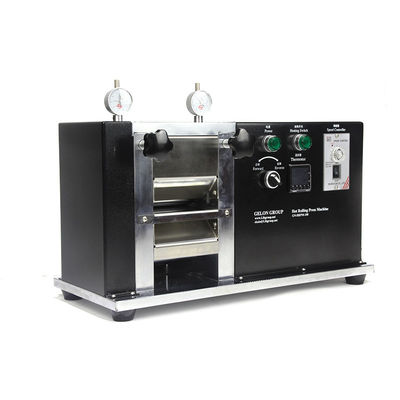

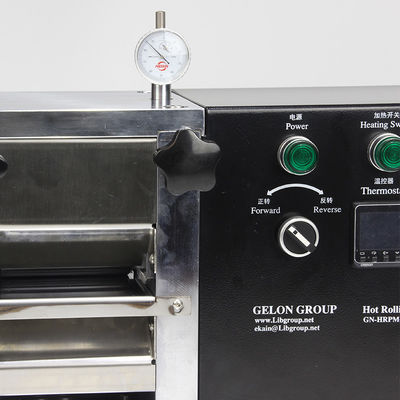

Product Images
