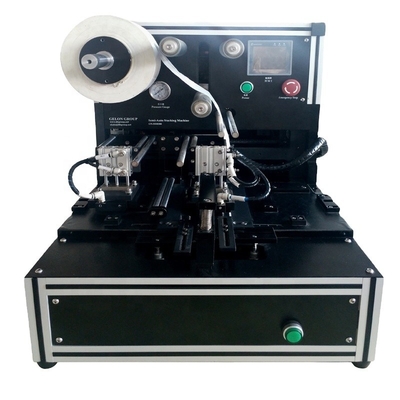

Large Image :  Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DP200S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 8100usd-8500usd
Packaging Details: Standard export package
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100sets /month

Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine

Description
Stacking Platform: L650mmW400mmH700mm Control Box: L200mmW300mmH380mm
Air Pressure Source: 0.5MPa Product Name: Pouch Cell Battery Assembly
Power Supply: AC220V/50Hz Air Pressure Source: 0.5MPa ~ 0.7MPa
High Light:

Pouch Cell Battery Assembly Semi Auto

,

Pouch Cell Electrode Stacking Machine

,

50Hz Pouch Cell Battery Assembly

Semi-auto Electrode Stacking Machine for Pouch Cell Assembly Battery Electrode

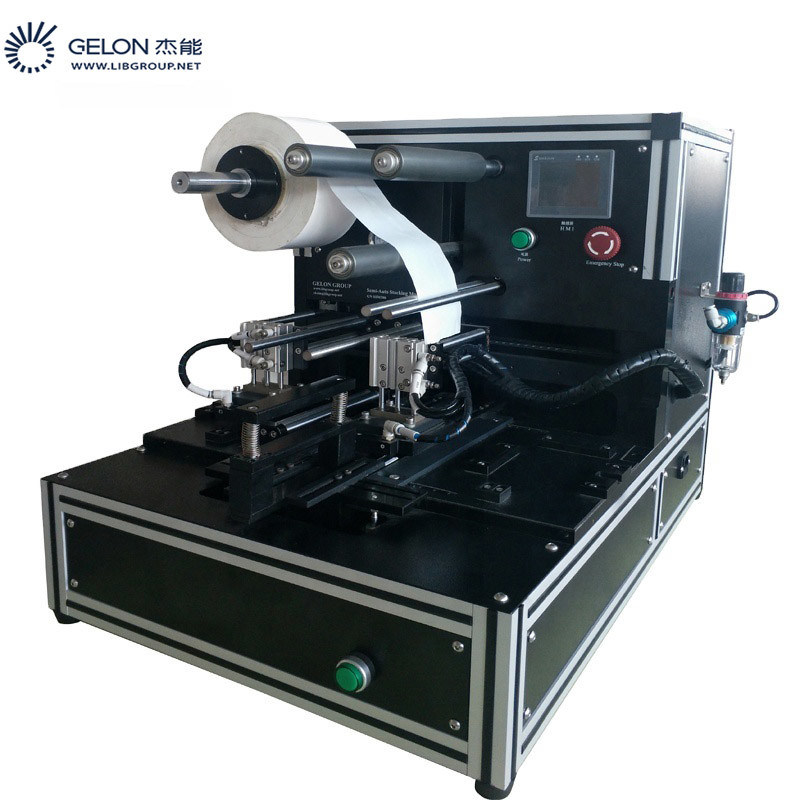

Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine 0

SPECIFICATIONS FOR POUCH CELL STACKING MACHINE
φ250mm Maximum installed diaphragm roll

φ250mm
Applicable pole piece specifications
long (0 ~ 200) mm
wide (0 ~ 200) mm
Diaphragm width
200mm
Pendulum roller moving stroke
400mm
Correction accuracy
0.05mm
Power supply
AC220V/50Hz
Air pressure source

0.5MPa ~ 0.7MPa
Equipment size
L465mm × W585mm × H540mm

Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine 1



Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine 2Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine 3

Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine 4Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine 5
