Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell

Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell
Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell

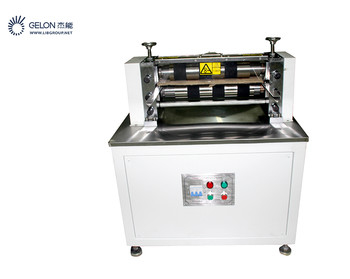

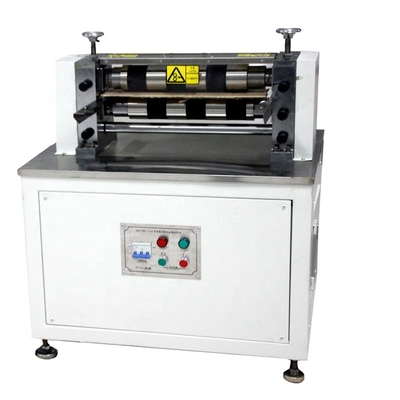

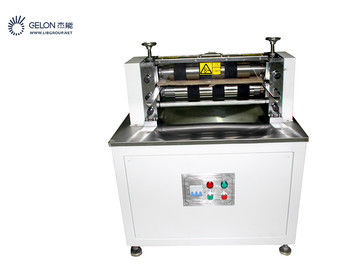

Large Image :  Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-500A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 4000usd-4600usd
Packaging Details: Standard export package
Delivery Time: 15 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 sets/month

Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell

Description
Product Name: Battery Assembly Machine Type: Cylinder Cell Electrode Slitting Machine
Slitting Precisiong Pump: ±0.05mm Max Slitting Size: 500mm
Size: 880x620x950mm
High Light:

Semi Auto Battery Assembly Machine

,

Cylinder cell electrode slitting machine

,

500mm Battery Assembly Machine

Battery Assembly machine semi-auto electrode slitting machine for cylinder cell

Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell 0

Product Description



The equipment is used in slitting the pasted electrodes-plates of rechargeable Li-ion batteries. The substrate of electrode-plate is steel belt or copper belt. The verge of the cut plate is tidy, size of cut plate is of high precision, and the slit plates loss no powder, so the equipment is the important one in processing the electrodes-plates.



The specification:



1. Power:1.1KW, 220V
2. Dia:Φ80mm
3. Speed:600m/h
4. Slitting Precision:±0.05mm
5. Max Slitting Size:300mm (400mm, 500mm is also ok)
6. Min slitting size: 20mm(as customer's request)
7. Slitting Quantity:According to User's Battery Technology(Standard size above 35mm);
8. Set a slitting knife at random.
9. Quality:Tidy, No Burr.
10. Materials thickness: 15-350um
11. Slitting length: >1000mm



SPECIFICATION OF SEMI-AUTO SLITTING MACHINE
Power
1.1KW 380V
Dia
84mm
Speed
10m/min
Slitting Precision
±0.05mm
Max Slitting Size
500mm
Size
880*620*950mm


Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell 1

Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell 2Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell 3Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell 4

Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell 5Semi Auto Battery Assembly Machine Electrode Slitting Machine For Cylinder Cell 6
