Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine

Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine
Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine

Large Image :  Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $20,000.00 - $24,900.00/ set |1 set/sets(Min. Order)
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging.
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets /month

Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine

Description
Weight (KG): 200 Applicable Industries: Lithium Ion Battery
Name: Semi-Auto Winding Machine Powder: 2KW Max
Winding Rod: 3.5mm O.D Electrode Winding Size: 14-32mm OD
Cathode Winding: Alu. Foil Coated With An Active Material Anode Winding: Copper Foil Coated With Graphite
Separator Winding: PP Or PE Thickness Range: Less Than 100um
Maximum Width: 70mm Width: 30-80mm
High Light:

Semi Automatic winding machine

,

Lithium Ion Battery Production Machine

,

Power automatic winding machine

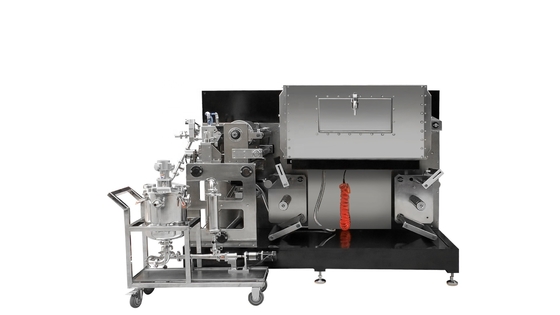

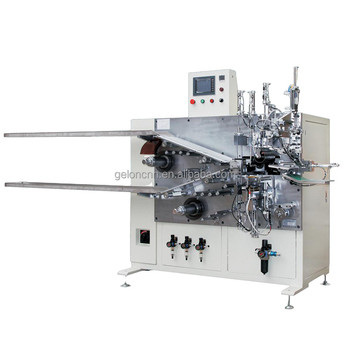

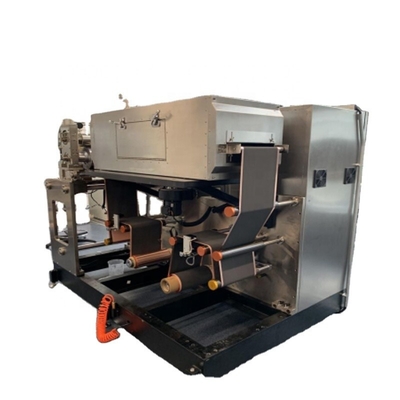

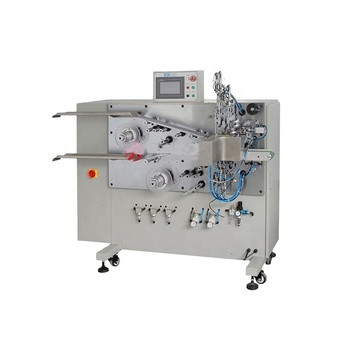

Gelon High Quality Semi-automatic power winding machine used for lithium ion battery production machine



Product Description



Semi-automatic power winding machine used for lithium ion battery manufacture

Powder 2KW Max
Winding Rod 3.5mm O.D
Electrode winding size 14-32mm O.D/25-70mm L
Cathode/Anode winding

Cathode: Aluminum foil coated with an active material

Anode: Copper foil coated with graphite

Thickness range: 100-300μm

Suggested Overall Length: <1200mm

Maxium Width: 700mm

Separator winding

PP or PE

Thickness Range: <10mm

Max.adaptable size: thickness <10mm

Width:30-80mm

Length: 30-100mm

Electrode winding size

14-32mm O.D

25-70mm L

1.GN series semi-automatic winding machine for cylinder & square cells core.

Functions of equipment: Winding the electrode flakes and separator into cell core (cylinder or square cells)

2,Equipment characteristic

a. Single winding core and taking out winding needle from both side structures.

b. Feeding the electrode flakes manually, automatic winding, automatic replacing the needle, automatic adhere the glue tape and automatic output the finished cell core;

c. Active unreeling of two rolls of separator, with adjustable constant tensile force;

d. The software can be set as “Cathode Feeding First”, “Anode Feeding First” or “Both Feeding”.

e. Can wind the electrode with length of 1800mm. (Core Dia. is no more than 26mm)

f. Electrode feeding with manual, tension is steady.

g. Winding speed is steady, tension of core is steady.;

3,Technology Index

a. The dia. of winding needle:φ4(standard),φ3.5;

b. Separator width:30 ~ 60 mm;

c. Electrode Width:33 ~60 mm;

d. Electrode length:300 ~1500 mm;

e. Winding Dia.: φ14-26 mm;

f. Separator Dia.: φ76 mm(3inch),Max Dia.250 mm;

g. The width of terminated tape:10 ~ 40 mm;

h. Terminated tape circle: 0.2-1.5 circle

i. Tension of separator is adjustable.

j. Tension of cathode and anode electrode: adopting vac-sorb way.

k. Winding precision: the error for separator and Anode, Anode and cathode less than ±0.5 mm; (length of electrode less than 500mm).

P.S.: Width of electrode error < ±0.1mm;

Electrodes S bending error <±0.2mm/500mm;

Separator turriform error<±0.2mm

l. Equipment capacity:6 PPM ;(Electrode length<800mm).

m. FTY>98%

Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine 0Semi Automatic Power Winding Machine For Lithium Ion Battery Production Machine 1
