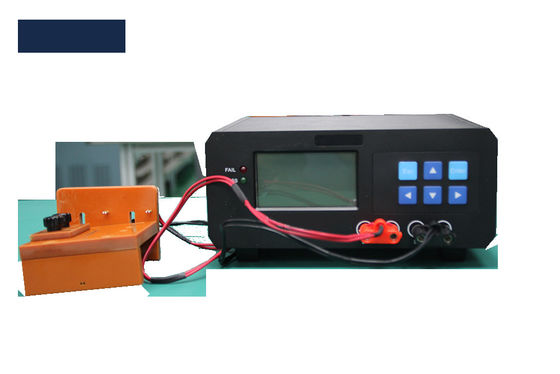

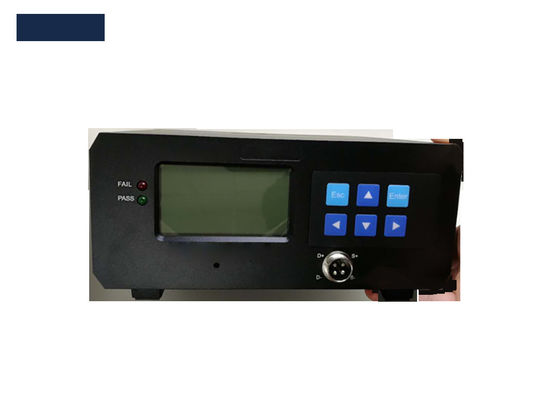

18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement

Large Image : 18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Model Number:	GN-BTS100

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Carton box
Delivery Time:	within 10 days
Payment Terms:	L/C,T/T
Supply Ability:	10set/month

Contact Now

18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement

Description

Product Name:	Battery Internal Resistance Tester	Temperature:	0~40℃
Height Application:	Less Than 2KM Elevation	RH:	40~80%RH
Consume Power:	Max 50W	1voltage Measurement Range:	0-5V Minimum Resolution:1mV
2voltage Measurement Range:	0-50V Minimum Resolution:10mV
Highlight:	50W Coin Battery Research , 18650 battery test machine , Batteries Internal Resistance Tester

18650 Battery Test Machine Coin Battery Research Battery Internal Resistance Tester

18650 Battery Test Machine Battery Internal Resistance Tester

Specifications

Applied Environment

Temperature: 0~40℃

Height application: Less than 2KM elevation

Relative Humidity: 40~80%RH

Measurement Range

Voltage measurement range: 0-5V (minimum resolution: 1mV)

Voltage measurement range: 0-50V (minimum resolution: 10mV)

Internal resistance measurement range: 0-40mΩ (minimum resolution: 0.01mΩ)

Internal resistance measurement range: 0-400mΩ (minimum resolution: 0.1mΩ)

Internal resistance measurement range: 0-4000mΩ (minimum resolution: 1mΩ)

Performance & Physical Specifications

Testing speed: 0.5 seconds

Electric source: 220V±10% 50Hz

Consume power: Maximum 50W

Tester size: 190mm (L) × 153mm (W) × 90mm (H)

Net weight: 1.5kg

Gross weight: 2kg

Our Services

We provide comprehensive one-stop solutions (turnkey projects) for your battery manufacturing needs.

Full Set of Lithium Battery Materials

LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2
Graphite (MCMB) and other cathode & anode battery materials
Aluminum foil, copper foils, battery separator, etc.

Full Set of Lithium Battery Equipment

Mixing machine
Coating machine
Oven
Rolling machine
Welding machine
Slitting / cutting machine
Winding machine
Sealed machine, etc.

Full Set of Lithium Battery Technology

We can design laboratories and production lines according to customer requirements.
