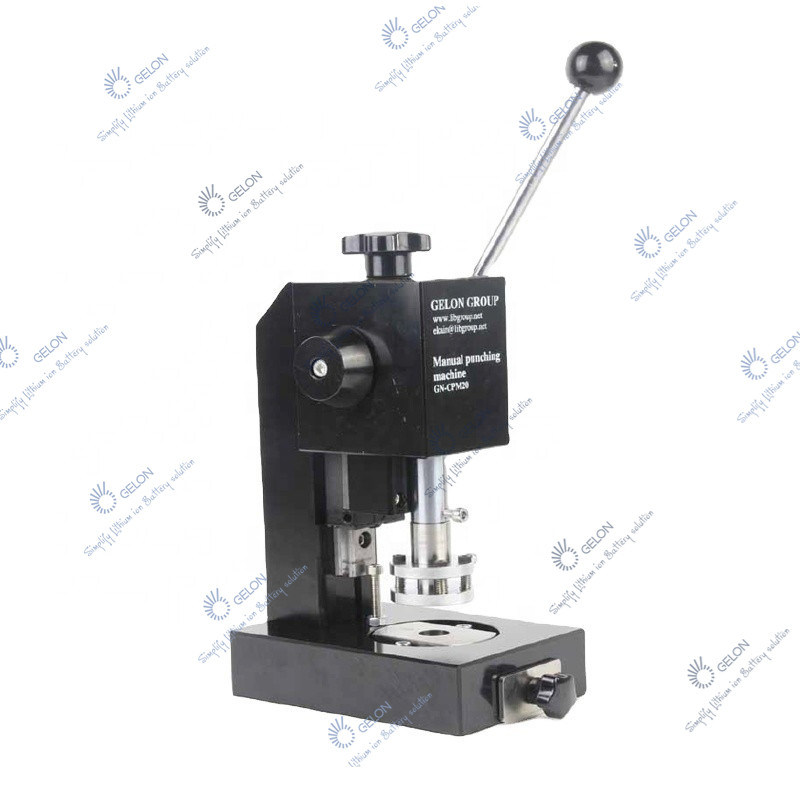

Desktop Coin Battery Research Punching Machine Lab Coin Cell Electrode Puncher

Large Image : Desktop Coin Battery Research Punching Machine Lab Coin Cell Electrode Puncher

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-CP20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD750/pcs
Packaging Details:	Standard exported package : Internal anticollision protection, external export wooden box packaging
Delivery Time:	15days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500pcs/month

Contact Now

Desktop Coin Battery Research Punching Machine Lab Coin Cell Electrode Puncher

Description

Punching Type:	Round Shape	Dimension:	L208W160H326mm
Weight:	6kg	Power:	Manual
Brand:	Gelon	Warranty:	1 Year
High Light:	Desktop Coin Battery Research , Coin Cell electrode punching machine , Lab Coin Battery Research

Desktop Punching Machine Lab Coin Cell Electrode Puncher

Desktop Coin Battery Research Punching Machine Lab Coin Cell Electrode Puncher 0 OVERVIEW

The product is a self-developed patented product of Gelon.

Dedicated to the punching process, the mold can be equipped with different specifications punching, blanking and other processes in the sheet material.

Machine design compact, easy to use and flexible, ideal for the 0.005 ~ 0.5mm thickness of the battery anode and cathode electrodes, separators and performed blanking punch paper on the diaphragm material.

FEATURES AT A GLANCE

High precision, no edges, burrs

small size, freely pass through the glove box, Easy cleaning


			Item
			Data

			Common mold size
			dia.8/10/12/14/15/16/17/18/19/20mm

			Equipped mould size
			dia.15 &dia.19 or dia.20mm &dia.24mm

			Optional mould size
			dia.8~dia.24mm as customers’request.

			Punching size
			dia14mm(optionaldia8mm~dia24mm)as customers’request

			Punching strode
			25mm

			Size(L X W X H)(mm)
			L110×W150×H235mm

			Weight
			6Kg

Pneumatic version available

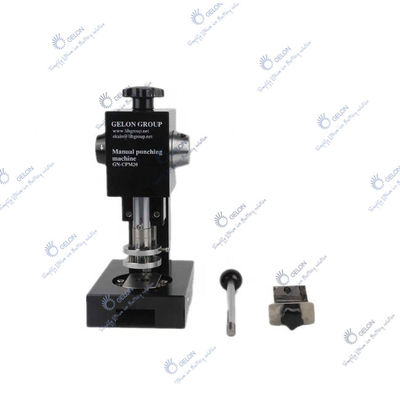

Desktop Coin Battery Research Punching Machine Lab Coin Cell Electrode Puncher 4

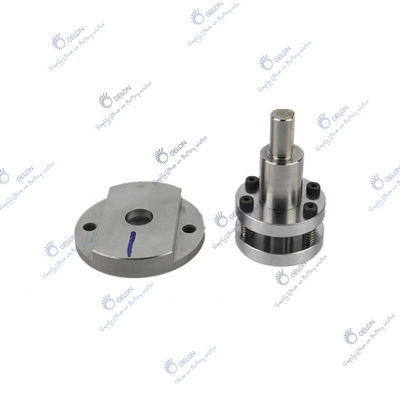

Desktop Coin Battery Research Punching Machine Lab Coin Cell Electrode Puncher 5

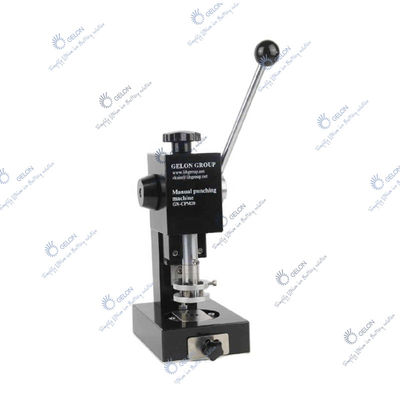

Desktop Coin Battery Research Punching Machine Lab Coin Cell Electrode Puncher 6
