CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research

CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research
CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research

Large Image :  CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Manual crimping machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$1250~1350
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month

CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research

Description
Brand: Gelon Sealing Stroke: 30mm
Sealing Efficiency: 20 S / Unit Used For: Coin Cell Battery
Max Speed: With Customization Maximum Sealing Pressure:: 1MPa
Warranty: 1 Year
High Light:

Coin Cells manual crimping machine

,

CR2025 battery crimping machine

,

CR2016 manual crimping machine

High Quality Battery Research CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine

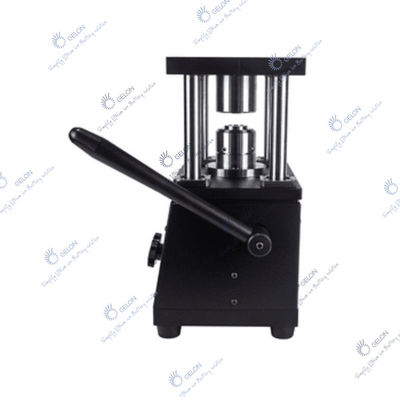

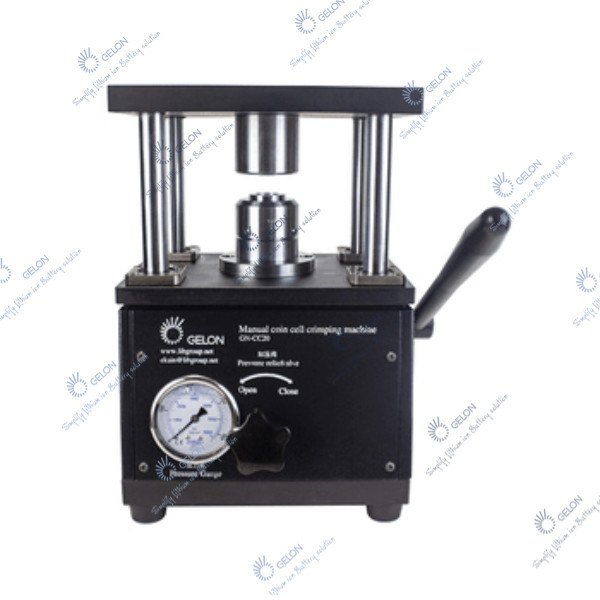

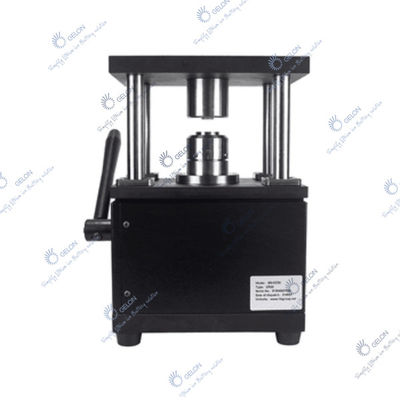

The equipment mainly drives the hydraulic pump with a hand rocker rod, put the battery into the mold, drives the hand rocker rod, automatically closes the upper and lower dies, forms the battery seal.It applies to the production of the coin cell battery with samples developed by the laboratory battery materials. Capacitor scientific research seal, can also be used in the factory small batch trial production. Different molds can also be used in dry powder pressing, wet powder pressing, nickel foam pressing, pressing forming, riveting and so on.





No
Item
Data
4
Sealing pressure
Min.80Kg, Max.1400Kg(Pressure can be adjusted on the panel)
5
Sealing stroke
30mm
6
Pressure precision
±1.5%
7
Sealing efficiency
20 s / unit
8
Weight
27KG
9
Size
L280*W300*H340mm





CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research 0

CR2032 CR2025 CR2016 Hydraulic Press Coin Cells Manual Crimping Machine Battery Research 1
