Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension

Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension
Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension

Large Image :  Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-S100F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2110-2980 set
Packaging Details: Standard export package
Delivery Time: 30 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets per month

Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension

Description
Product Name: Pouch Cell Case Forming Machine Maximum Feed Size: L150mm X W60mm
Max Punching Depth: 6mm Power: Single-phase 220v, Frequency 50Hz/60Hz, Power 100w
Compressed Air Source: 0.5-0.8Mpa Outer Size: L445mm X W225mm X H420mm
Air Source: 0.8-1MPa Compressed Air Approximate Weight: 45 Kg
High Light:

Battery Pouch Cell Case Forming Machine

,

aluminum laminated film forming machine

,

150mm X 60mm Pouch Cell Case Forming Machine

Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension for Battery Equipment



Description:

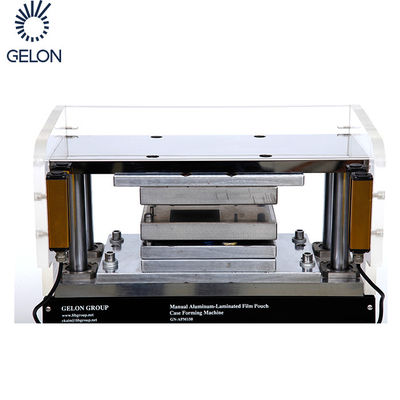

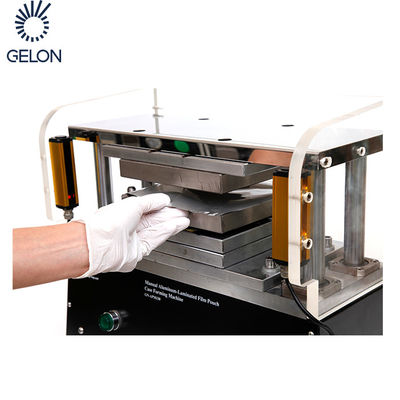

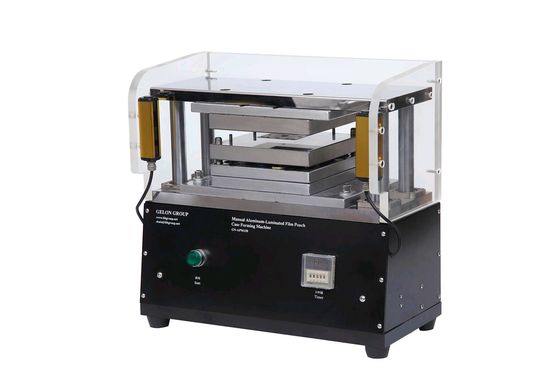

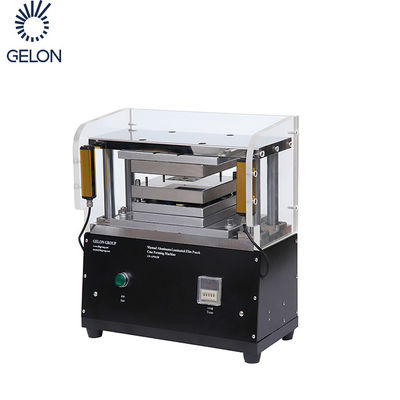

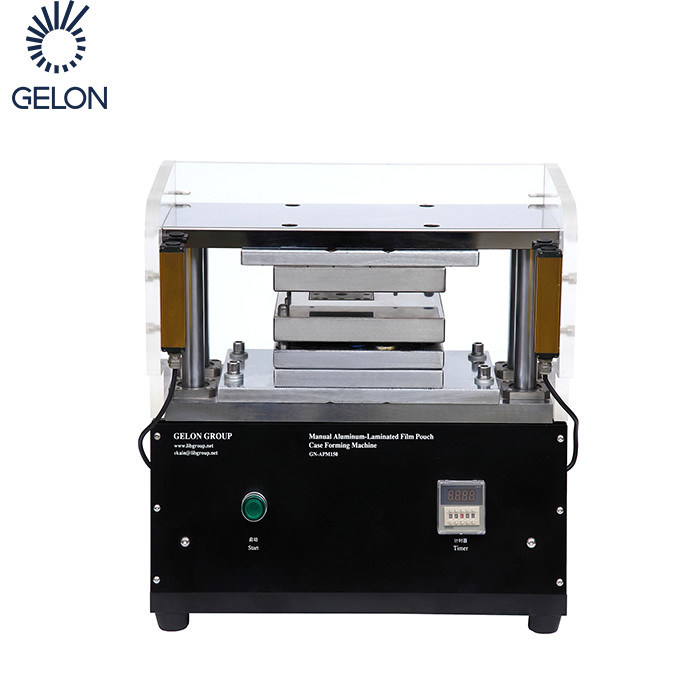

The aluminum laminated film forming machine is an equipment used in the aluminum laminated film forming of lithium-ion pouch cell. The equipment is driven by an air cylinder, and the upper and lower forming dies can be made according to customer requirements to realize different sizes of aluminum laminated film shells of lithium-ion batteries. Sheet aluminum laminated film forming, suitable for R&D and sample preparation applications;

Cylinder drive, no need for electricity, adjustable molding pressure and molding speed; high-strength frame, upper and lower precision templates to ensure molding accuracy; the molded product stretches evenly, the stretching effect is high, and there is no badness such as strain or crack; standard configuration A set of standard size molds can also be made according to customer requirements.



Technical Parameter:

Air source: 0.8-1MPa compressed air

Standard mold: L62*W46mm, the required aluminum laminated film size is 160mm long and 110mm wide

Molding pressure: Max. 1T (1MPa compressed air), adjustable

Punching depth: Max. 6mm, high tensile strength is related to the quality of the aluminum-plastic film, standard depth gauges of 3, 4, 5, 6mm

Forming accuracy: ±0.05mm

Forming thickness: 0.1~ 0.2mm aluminum plastic film

Approximate weight: 45Kg



Index:

Maxium feed size: L150mm X W60mm
Max punching depth: 6mm
Power: single-phase 220v, frequency 50Hz/60Hz, power 100w
Compressed air source: 0.5-0.8Mpa
Outer size: L445mm x W225mm xH420mm



Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 0Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 1Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 2Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 3








Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 4Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 5Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 6



Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 7Lithium Ion Battery Pouch Cell Case Forming Machine Customized Dimension 8



What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
