Lithium Battery Roll To Roll Electrode Calendaring Machine With Heating Function

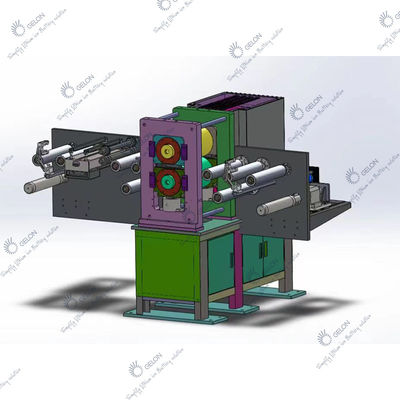

Large Image : Lithium Battery Roll To Roll Electrode Calendaring Machine With Heating Function

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-HR-330

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 36,000-38,850 per set
Packaging Details:	wooden box package
Delivery Time:	2 months
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	10 sets per month

Contact Now

Lithium Battery Roll To Roll Electrode Calendaring Machine With Heating Function

Description

Product Name:	Roll To Roll Electrode Calendaring Machine	Function:	Electrode Pressing And Slitting
Equipment Type:	Semi Automatic	Voltage:	380V
Width:	1-330mm	Speed:	0.8-5M/min
Calender Thickness:	0.01-2mm Adjusted	Max Working Pressure:	80T
Highlight:	Lithium Battery Electrode Calendaring Machine , Battery Making Machine 380V , Roll Electrode Calendaring Machine

Lithium Battery Roll to Roll Electrode Calendaring Machine with Heating Function

GN-HR-330 Hydraulic Roller pressure machine is an Automatic Battery Electrode Rolling Press System with precision digital pressure control . The pressure can be adjusted easily by touch screen.

			Name

			Pressure Adjust Hydraulic Rolling Press Machine

			Function

			Calender battery electrode

			Calender Model

			Hydraulic press

			Roller Size

			210mmDia*300mmW, 9Cr3Mo materials

			Calender Thickness

			0.01-2mm adjusted

			Effective Working Width

			Max 300mm

			Speed

			2-8r/min

			Efficiency

			0.8-5M/min

			Accuracy

			0.003mm

			Main Motor Power

			0.75KW(380V 50Hz)

			Heating

			Without heating function 1.75KW*2

			Max Working Pressure

			80T

			Rolling Press Machine Size

			About L1870mm*W795mm*H1120mm

			Weight

			About 1200kg

			Warranty

			One-year limited warranty with all lifetime support

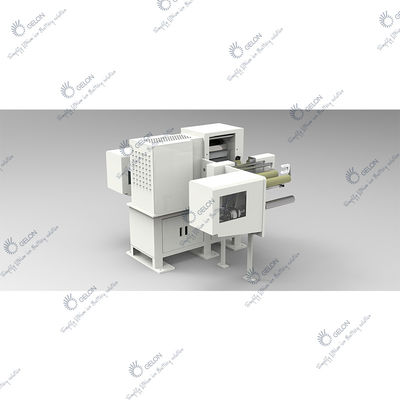

Lithium Battery Roll To Roll Electrode Calendaring Machine With Heating Function 0

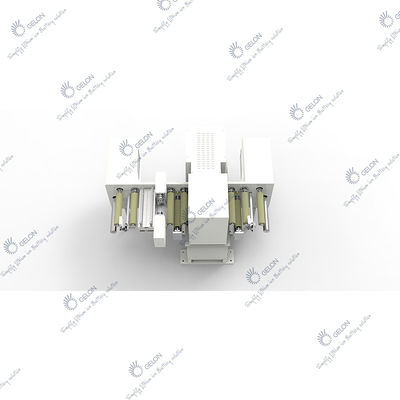

Lithium Battery Roll To Roll Electrode Calendaring Machine With Heating Function 1

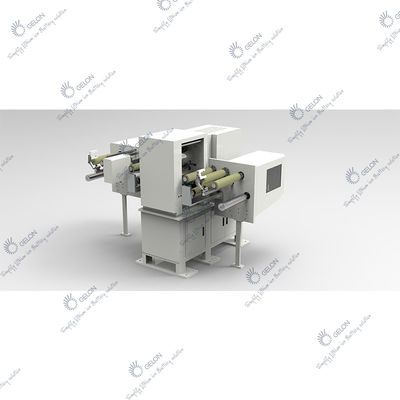

Lithium Battery Roll To Roll Electrode Calendaring Machine With Heating Function 2

We also provide other full automatic production line .

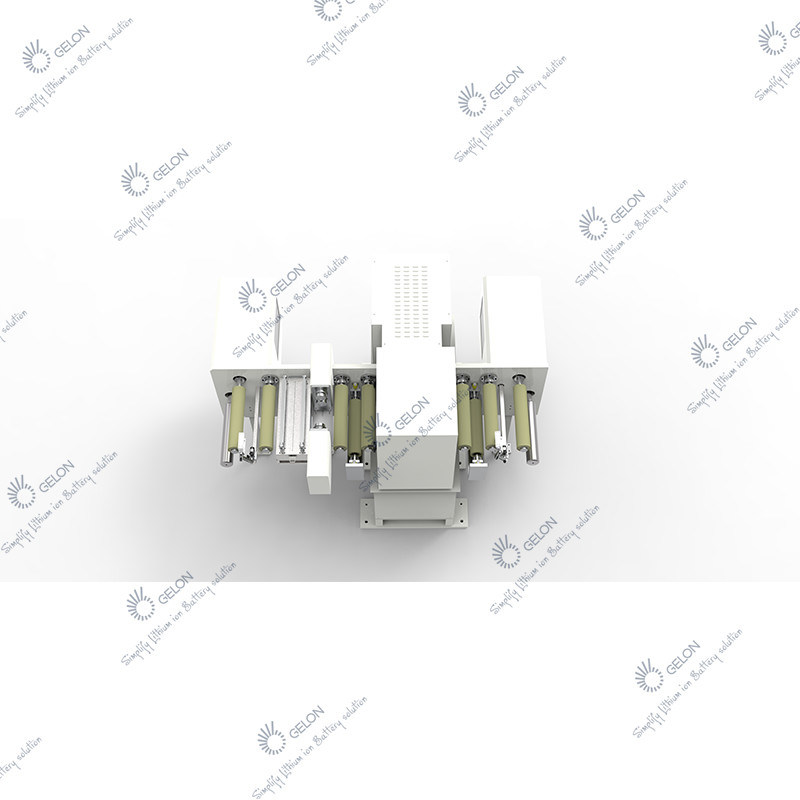

Lithium Battery Roll To Roll Electrode Calendaring Machine With Heating Function 3

Lithium Battery Roll To Roll Electrode Calendaring Machine With Heating Function 5
