Product Details:
|
| Name: | Roll To Roll Integrated Calendaring & Slitting Machine | Brand: | Gelon |
|---|---|---|---|
| Effective Rolling Width: | 700mm | Roll Size: | 800*800mm(can Be Customized) |
| Max Working Pressure: | 400T | Calendaring Accuracy: | ≤ ±2um |
| Correction Accuracy: | ≤ 0.1mm | Width Cutting Accuracy: | ≤ ±0.3mm |
| Incoming Electrode Width: | 50-800mm | Warranty: | 1 Year |
| High Light: | Roll To Roll automatic calendering machine,400T automatic slitting machine,700mm automatic calendering machine |
||

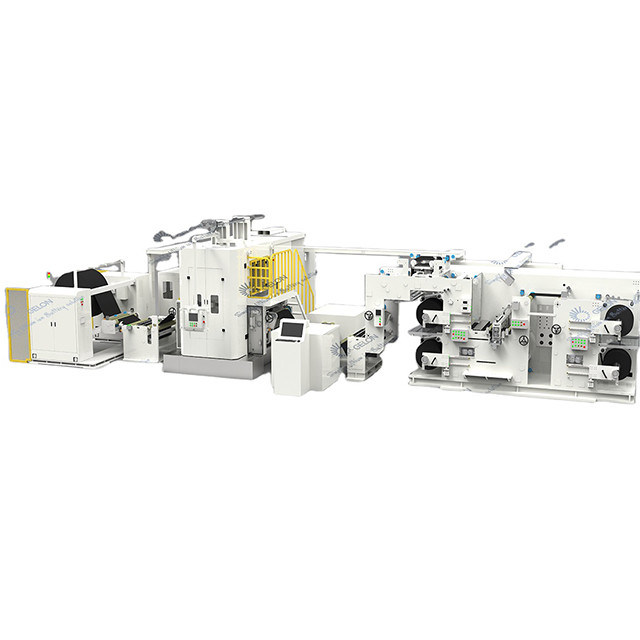

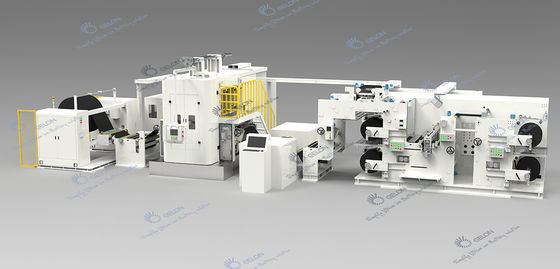

Lithium Ion Batteries Equipment Roll to Roll Integrated Calendaring & Slitting Machine
The machine is to roll the positive / negative electrodes after coating continuously through the continuous hydraulic pressure roller machine, evenly calender the electrodes to the thickness required by the process, and then slit it into 2-4 electrodes that meet the technological requirement width, and rewind with alignment.
Incoming electrode width: 50-800mm;
Calendaring accuracy: ≤ ±2um
Width cutting accuracy: ≤ ±0.3mm;
Cutting burrs: Foil: ≤10um, Vertical direction of coating area: ≤7um;
Correction accuracy: ≤ 0.1mm
Our Services
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
