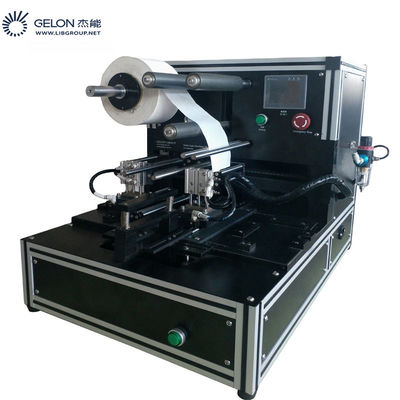

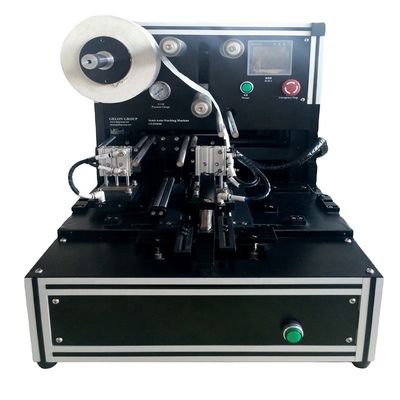

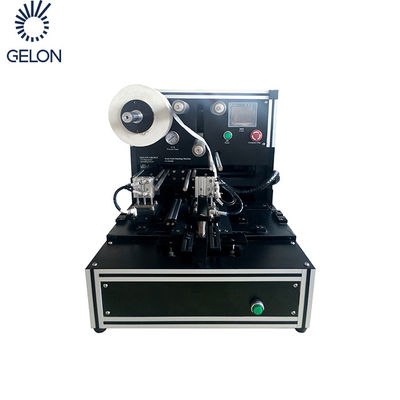

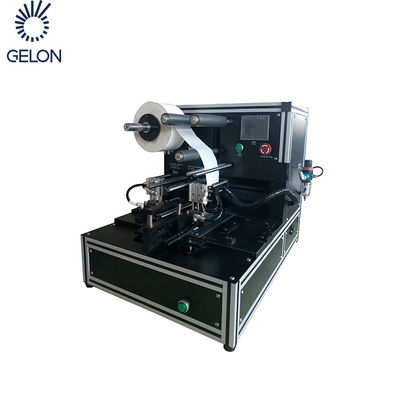

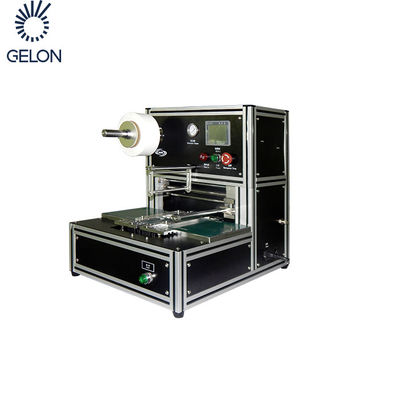

Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width

Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width
Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width

Large Image :  Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width

Product Details:
Place of Origin: Made in China
Brand Name: GELON
Certification: CE
Model Number: GN-DP200S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD7000-10000/set
Packaging Details: wooden package
Delivery Time: 50days
Payment Terms: T/T
Supply Ability: 30 sets per month

Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width

Description
Product Name: Pouch Cell Stacker Application: Lithium Battery Lab
Color: Black Cutomized: Yes
Type: GN-DP200S Payment Terms: T/T Payment
After-sales Service: Yes

Semi-auto Stacking Machine For Pouch Cell Assembly In Lithium Battery Lab 200mm 250mm 300mm Electrode Width 0

This equipment is suitable for the lamination process of lithium ion battery electrodes. The equipment adopts a tension roller structure design, automatic constant tension control of the coil isolation film, and the motor drives the left and right movement to realize the Z-type lamination. In this way, the entire cell’s stacking assembling is realized. the separator feeding adopts constant tension, and there is the automatic correction function of the electrode during the feeding process, and the feeding is neat and consistent; it has the characteristics of high stacking efficiency and high precision. Different electrode sizes can be realized by adjusting the fixture, which is suitable for R&D and sample production of laminated lithium-ion batteries.





Aliging accuracy ±0.5mm for stacked electrodes
Separator width ≤105mm
Max Separator diameter φ200mm
Appliable electrode size L(55-100)mm, W(40-105)mm, T:2-8mm
Tab length ≤25mm
Swing stroke 180mm
Power supply AC220V/50Hz or others
Compressed sir source 0.5MPa~0.7MPa
Outer size L710mm×W600mm×H770mm
NT weight 80Kg
