Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries

Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries
Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries

Large Image :  Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Roll to Roll Electrode Calendaring Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$36000~40000 per set
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month

Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries

Description
Name: Roll To Roll Electrode Calendaring Machine Roller Size: 210mmDia*300mmW, 9Cr3Mo Materials
Effective Working Width: Max 300mm Efficiency: 0.8-5M/min
Speed: 1-8r/min Accuracy: 0.003mm
Warranty: 1 Year

Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries

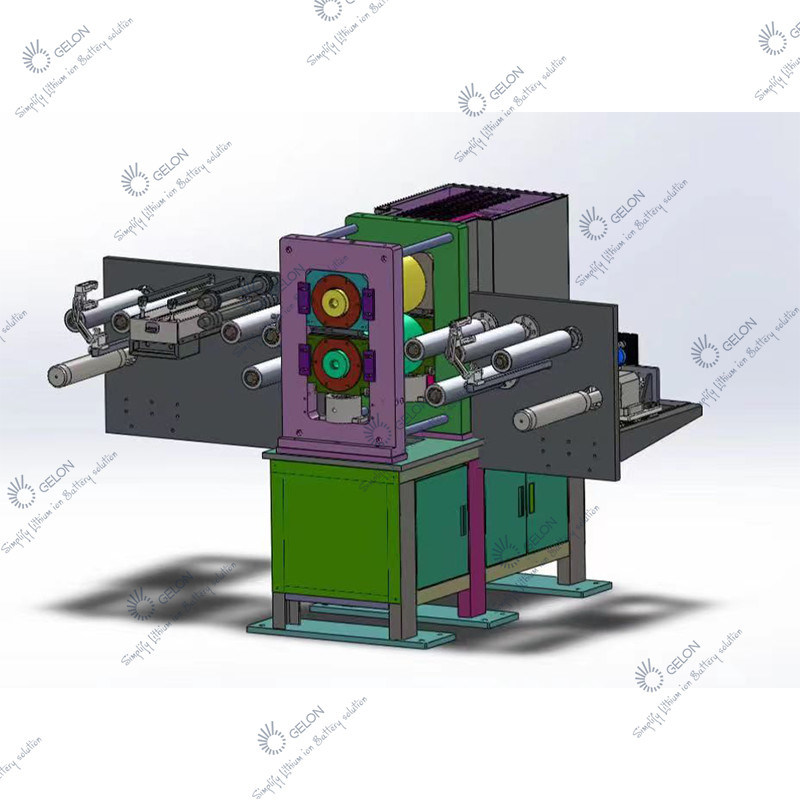

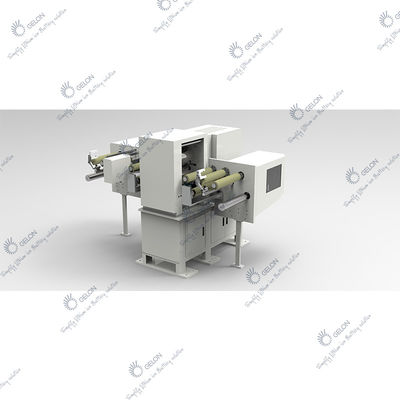

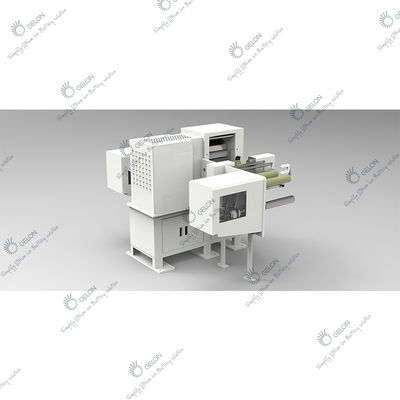

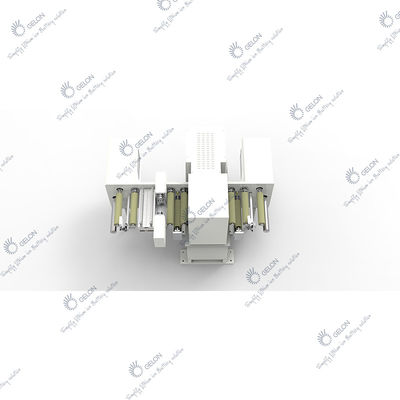

GN-HR-330 Hydraulic Roller pressure machine is an Automatic Battery Electrode Rolling Press System with precision digital pressure control . The pressure can be adjusted easily by touch screen.





Name
Pressure Adjust Hydraulic Rolling Press Machine
Function
Calender battery electrode
Calender Model
Hydraulic press
Roller Size
210mmDia*300mmW, 9Cr3Mo materials
Calender Thickness
0.01-2mm adjusted
Effective Working Width
Max 300mm
Speed
2-8r/min
Efficiency
0.8-5M/min
Accuracy
0.003mm
Main Motor Power
0.75KW(380V 50Hz)
Heating
Without heating function 1.75KW*2
Max Working Pressure
80T
Rolling Press Machine Size
About L1870mm*W795mm*H1120mm
Weight
About 1200kg
Warranty
One-year limited warranty with all lifetime support





Easily Operation Roll To Roll Electrode Calendaring Machine Lithium Ion Batteries 0



Our Services



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
