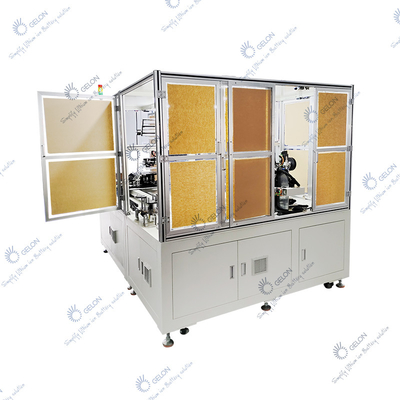

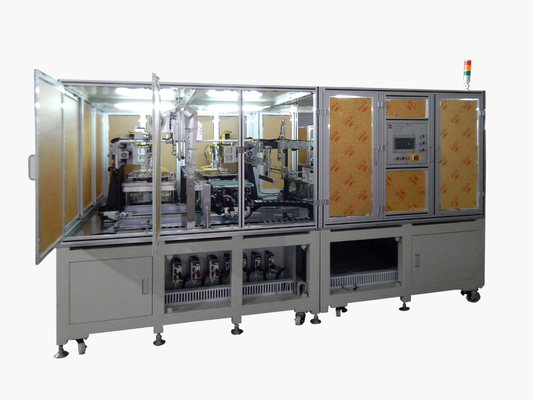

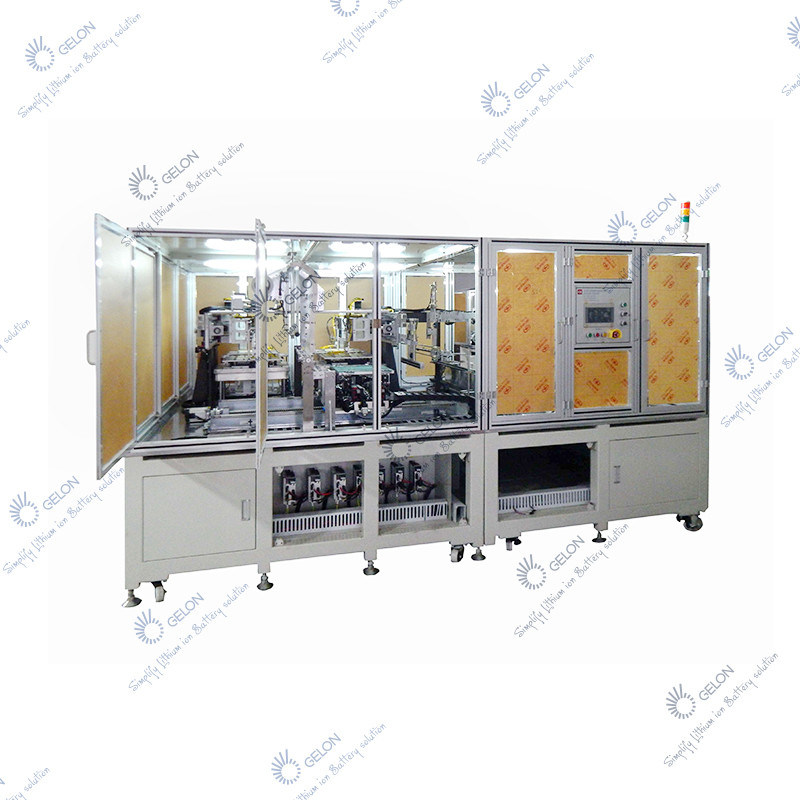

Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine

Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine
Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine
Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine

Large Image :  Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DP200A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 75000usd-80000usd
Packaging Details: Standard export package
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets /month

Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine

Description
Name: Automatic Stacking Machine Application: Pouch Cell Electrode Winding

Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine



Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 0

Product Description





The device uses the machianical arm to move the left and right sides to pick up the electrode pole pieces in the middle of the two extreme positions and alternately discharge the electrode while completing the Z stacking of the diaphragm during the left and right movement, so that the reciprocating relization of the electorde pole pieces assembly of the entire cell core; The linear servo motion module is used to achieve hight-speed smooth and discharge adopts constant tenstion, and the correction mechanism controls the uniformity of the discharge duing the discharging process; the electrode pole pieces silo uses the linear servo motion moudule to convert different pole pieces.

Applicable battery specifications(can be customized according to customer requirement).



Technology Index



Power AC220V±10%/2.0KW
Compressed Air 0.5 ~ 0.7Mpa
Vacuum 90Kpa ~ -60Kpa
Weight 900kg
Outside size 2000mm*1800mm*1700mm (L*W*H)
Productivity 1.1~1.5S/pc
Electrode putting precision ±0.2mm
Separator putting precision ±0.2mm

Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 1Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 2Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 3
Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 4
Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 5
Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 6
Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 7Pouch Cell Assembly Equipment Pouch cell electrode automatic stacking machine 8
