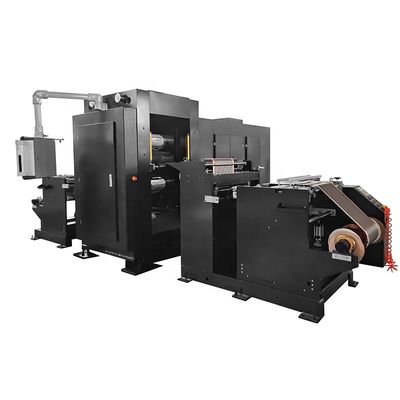

Lithium Ion Batteries Making Machine Roll To Roll Calender Press Machine

Roller Pressing Machine Continuous Hydraulic Calendaring Pressing Machine Battery Gigafactory Automatic Production Line

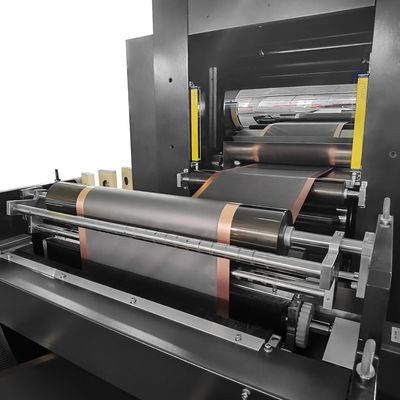

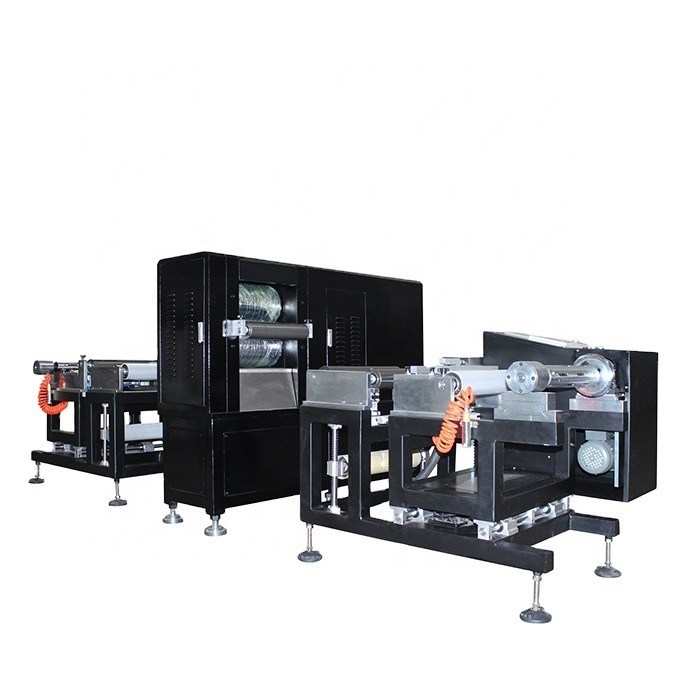

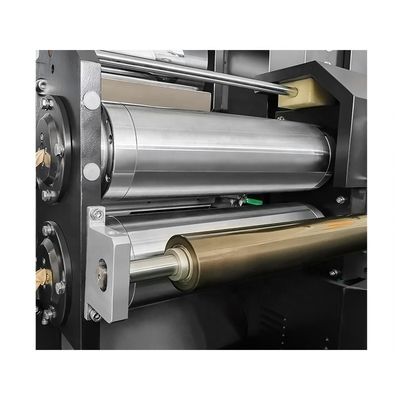

Rolling machine is the main equipment in continuous rolling production line. It is composed of rigid frame, roll pair, motor reducer, gas-liquid supercharging system, clearance adjustment system, electrical control system, feed plate and roller surface cleaning mechanism.

The main function is made electrode under the rolling,to bring the electrode to a proper density. And according to the coating thickness to achieve the electrode thickness requirements. This equipment adopts the lead screw wedge iron gap adjustment structure to adjust the roller gap, and the linear speed is adjusted by frequency converter to realize stepless speed regulatio.

Specification:

1)Power requirement::380V/50Hz. Power: 10KW

2)Compressed air:pressure 0.5Mpa~0.7Mpa. Flow rate:0.04M3/min

3)Total equipment weight: about 4.0T

Equipment installation ground load requirements: >2.5T/m2,and place cushions at the bottom of the equipment

4)Equipment size:Roller part about2600mm L×750mm W×1500mm H

Our Services

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
