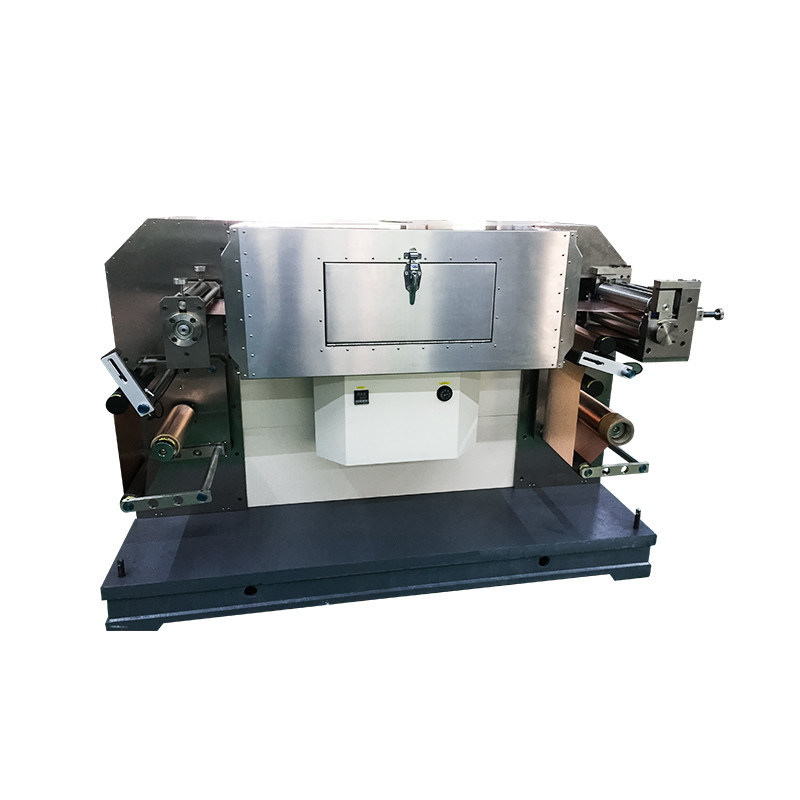

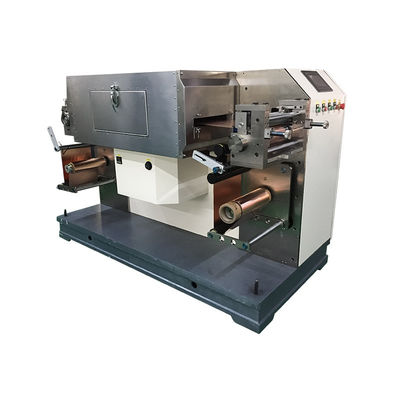

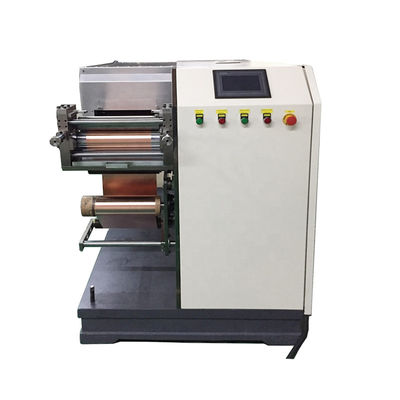

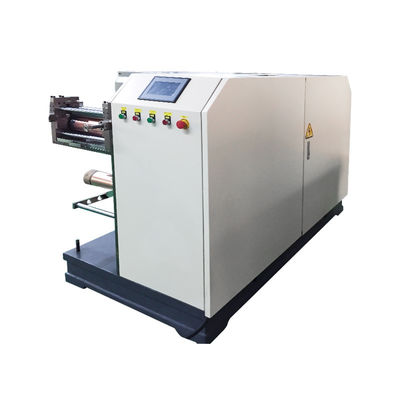

Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment

Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment
Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment
Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment

Large Image :  Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Battery Intermittent Coating Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$35000~40000 per set
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~35days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month

Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment

Description
Brand: Gelon Product Name: Batery Intermittent Coating Machine
Suitable System: Cathode And Anode Electrode Coating Process Equipment Coating Speed: 0.3m/min
Equipment Mechanical Running Speed: 1m/min Warranty: 1 Year
High Light:

lithium ion battery coating machine

,

0.3m/min lithium battery making machine

,

Intermittent battery coating machine

Manufacture Battery Equipment Intermittent Coating Machine Continuous Coating Equipment



The intermittent lab coating machine is a three-roll transfer coating equipment, which can be used for continuous and intermittent coating. It is convenient to be used in the surface coating process of various substrates. Especially in the lithium ion battery industry, the equipment is convenient for researchers to use, while meeting the requirements of coating accuracy and consistency is the same as the design of production, drying effect is excellent is lithium ion batteries, super capacitors, Ideal choice for nickel batteries and other secondary battery R & D and small trials.



Characteristic:
1. Can freely switch to realize continuous and intermittent coating;
2. Base material tension control, stable strike-band, and equipped with rectifying devices;
3. Hot-air oven, blowing on top and bottom, with good drying effect;
4. Three roll transfer coating with wider coating windows;
5. Comma scraper metering, with precision adjustment mechanism, to obtain high coating accuracy;
6. PLC control, touch screen operation, easy to use;
7. Alternative solvent recovery treatment units;





No
Item
Data
1
Suitable system
Cathode and anode electrode coating process of Lithium Iron Phosphate, Lithium Cobalt, LiMnO4, etc.
2
Operating substrate thickness
Al: 11~30um Cu: 8~30um
3
Guaranteed coating width
Within 300mm
4
Equipment mechanical running speed
1m/min
5
Equipment coating speed
0.3m/min
6
Suitable viscosity of slurry
2000~12000 Cps
7
Single side coating dry thickness range
50-150μm
8
Minimum intermittent length
5mm
9
Multistage minimum coating length
20mm
10
Maximum roll diameter
Ф250mm
11
Doctor knife structure
Double-sided comma scraper
12
Oven structure
Single layer independent heating, upper and lower arrangement
13
Oven length
1 m / block
14
Oven temperature
Design Max 120 ℃, temperature difference in single oven ≤ 5 ℃
15
Mechanism
Rewinding and unwinding
16
Control system
Touch screen, PLC, module, servo system





Lithium Ion Battery Coating Machine Intermittent Continuous Coating Equipment 0



Our Services



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
