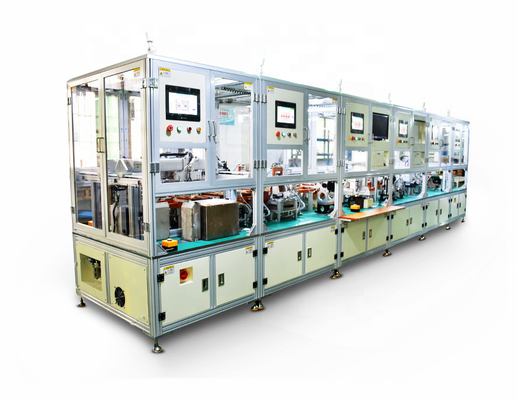

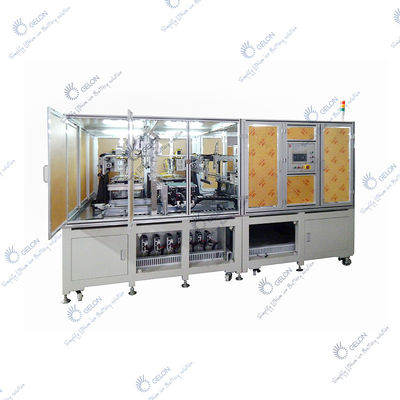

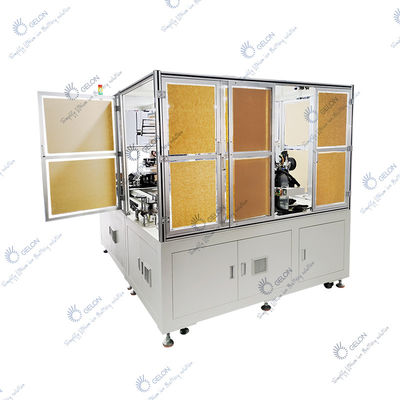

Full Automatic Pouch Cell Stacking Machine

Full Automatic Pouch Cell Stacking Machine
Full Automatic Pouch Cell Stacking Machine Full Automatic Pouch Cell Stacking Machine Full Automatic Pouch Cell Stacking Machine Full Automatic Pouch Cell Stacking Machine Full Automatic Pouch Cell Stacking Machine

Large Image :  Full Automatic Pouch Cell Stacking Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Full Automatic Stacking Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$15000~150000 set
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~35days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month

Full Automatic Pouch Cell Stacking Machine

Description
Product Name: Battery Manufacturing Machine Brand: Gelon
Type: Full Automatic Stacking Machine Stacking Type: Z Fold Stacking
Electrode Putting Precision: ±0.2mm Warranty: 1 Year
High Light:

Pouch Cell Stacking Machine CE

,

Full Automatic Battery Equipment

,

Battery pouch cell stacking machine

Full Automatic Battery Equipment Pouch Cell Stacking Machine



This machine is designed for large square lithium-ion battery, use Z-shaped stacking method. The machine through four manipulator to take the cathode and anode electrodes from the material cabinet to the position taken place on the second platform, after framing station and then placed on the stacking platform, it is with automatic clamping device.





Model
GN-DP300S   Can be customization
Suitable battery core specs
0~20mm thickness
Suitable battery core specs
150~200mm width
Suitable battery core specs
250~300mm length
Tabs length(mm)
Q≤30
Temhumidity
5-45℃; 5-65%
Compressed air
pressure 0.5-0.7Mpa
Single piece efficiency
2~2.5s/pcs
Ingle cell making time
20S-40S
stacking core width
Min: anode electrode +0.6mm ,
Max: anode width+1.3mm
Battery core thickness
≤20
Fixture
Suitable the single side tab





Full Automatic Pouch Cell Stacking Machine 0



Our Services



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
