Product Details:
|
| Brand: | Gelon | Product Name: | Cylinder Cell Crimping Machine |
|---|---|---|---|
| Materials: | Heavy Duty Steel Platform ,plating And Spraying No Rust | Air Supply: | Compressed Air 0.6~1.0MPa |
| Sealing Pressure: | 10~150kg/cm2 | Power: | 120w |
| Warranty: | 1 Year | ||
| High Light: | Laboratory Batteries Crimping Equipment,Cylinder Cell Crimping Machine,Lab Batteries Crimping Equipment |
||

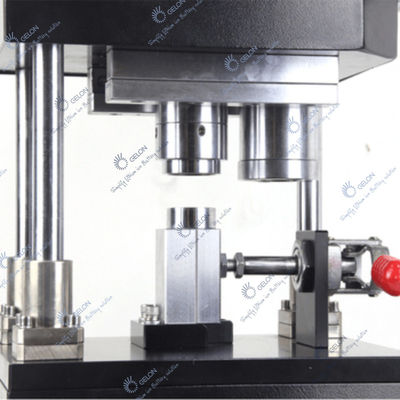

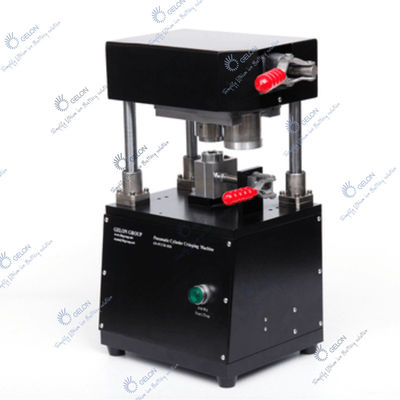

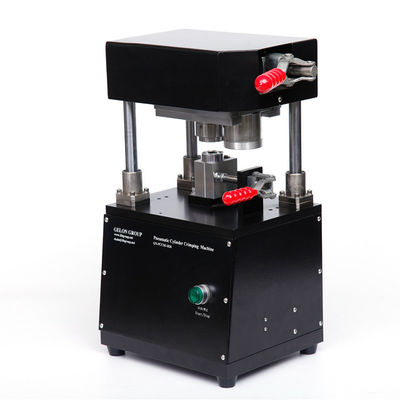

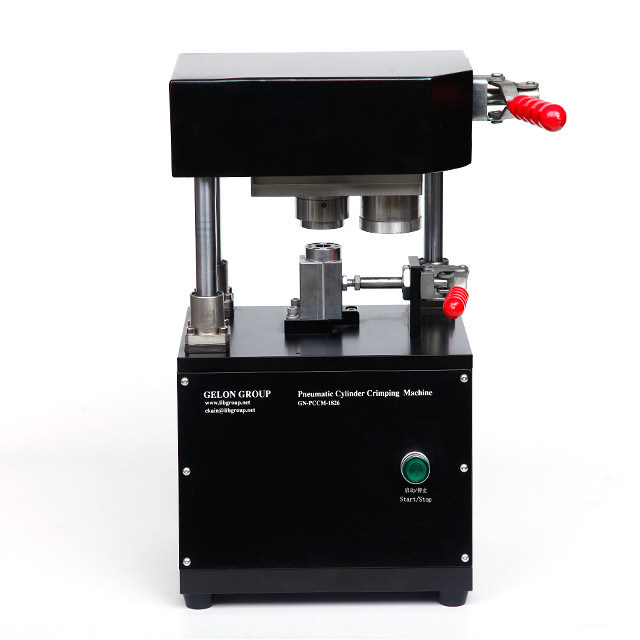

Gelon Laboratory Lithium Ion Batteries Crimping Equipment With First Sealing And Second Sealing In One Equipment
The pneumatic crimping machine is driven by a cylinder to realize the packaging process for the cylindrical battery. The standard configuration mold can be used for the sealing of 18650 batteries. After replacing the mold, other cylindrical batteries (such as 26650) can be sealed.
| Driving Force | Manual hydraulic pressingup to 5T |
| Pressure Gauge | 0-3500 psi (0-250 kg/cm^2) |
| Body | Stainless Steel |
| Crimping Dies | Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA |
| Compliance | CE certified |
| Warranty |
|
| Product Dimensions | 320mm(L) x 240mm(W) x 400mm(H) |
| Application Notes |
|
| Net Weight | 40kg |
