Product Details:
|
| Transferring Speed: | 1m/min Continuously Adjustable | Furnace Temperature: | Room Temperature ~ 150 ℃ Adjustable |
|---|---|---|---|
| Electrode Width: | ≤ 300mm | Coated Precision: | ≤ ±0.003mm |
| Retractable Tension: | Adjustable | Coating Method: | Single Row |
| Current Collector: | Copper Foil, Aluminum Foil, Etc. | Color: | Black |
| High Light: | 1m/min Battery Manufacturing Machine,lithium ion battery coating machine,single row Battery Manufacturing Machine |
||

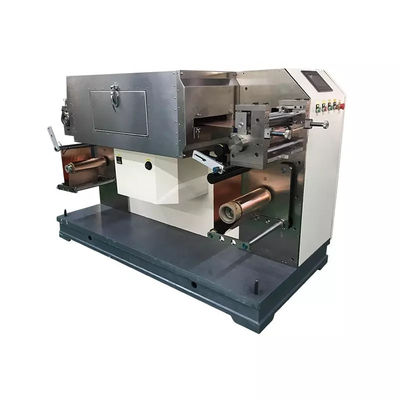

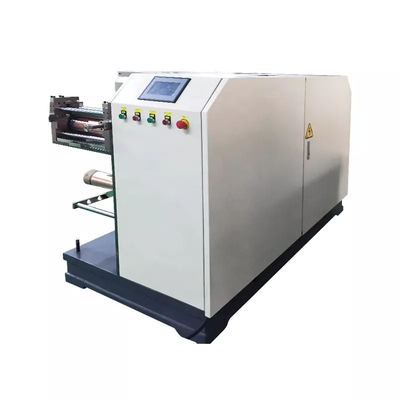

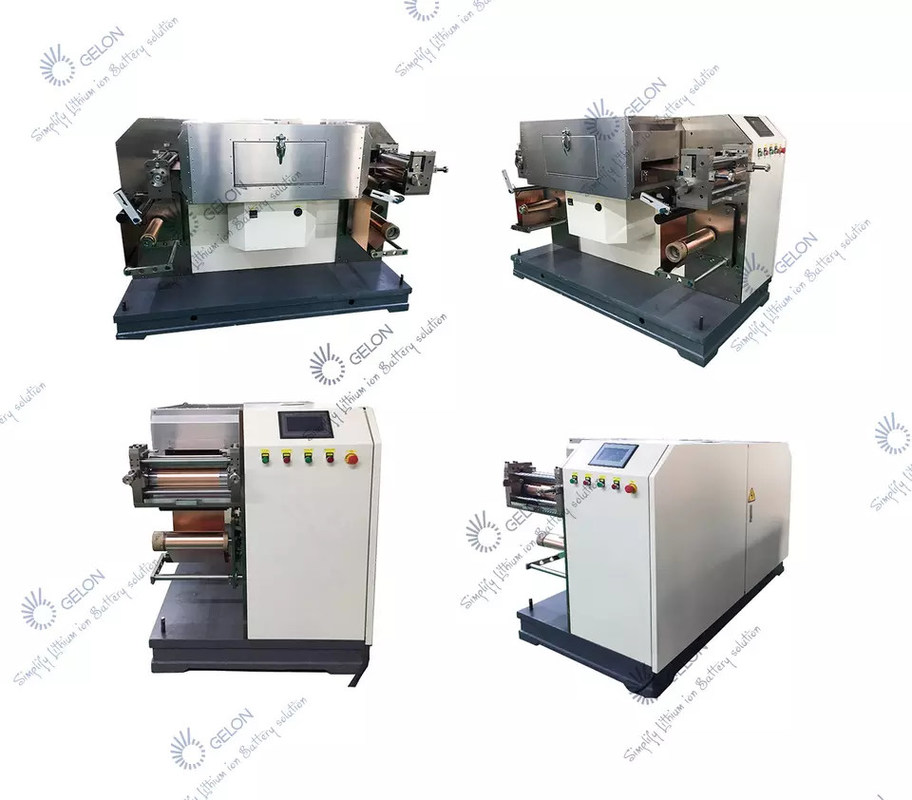

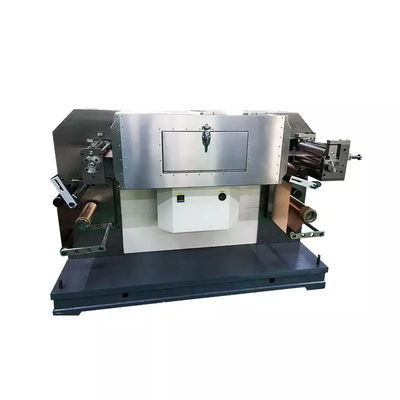

Gelon EV battery Manufacturing Machine Lithium Ion Battery Coating Machine
Product feature:
This equipment is mainly used for lithium battery electrode in the production process slurry drying process, is mainly used in the experiments ,using this technology can replace the original production of hand-scraped pulp, oven drying operations, and improve the uniformity and scrape pulp drying efficiency is indispensable equipment for mass production.
The technical parameters
| 1. Transferring Speed: 1m/min continuously adjustable |
| 2. Furnace temperature: room temperature ~ 150 ℃ adjustable; |
| 3. Electrode width: ≤ 300mm; |
| 4. Coated precision: ≤ ±0.003mm |
| 5. Retractable tension: Adjustable |
| 6. Coating method: single row; |
| 7. Current collector: copper foil, aluminum foil, etc.; |
| 8. Heating zone: 1 zone; |
| 9. Power supply voltage: 380V/50HZ three-phase power supply; |
| 10. Power consumption: 6.5KW; |
| 11. Dimensions: L *W *H = 1800 *800 *1200; |
Device structures:
This equipment received by the main drive pulley driven movement, metal belt pulley mounted on the release, in the driving wheel driven slowly walked from scratch slurry tank, slurry coated tapes made by scraping pulp slurry evenly after attached to the belt by adjusting the roll gap scraping pulp and process to achieve the required size. Then after oven drying, and then Re-rolling good.
The equipment features:
The equipment brought by the discharge roller, magnetic powder brake unwinding, scraping slurry tank, coating roll, closing with a roller, to close with a tension adjusting mechanism, dry boxes, some of the main drive, fan and chassis, electrical parts etc., simple structure , compact, and also simple and convenient.
1, scrape pulp systems, precision machining parts, slurry for the stainless steel contact parts, scrape pulp thickness adjustable.
2, The main drive with frequency conversion control, wide speed range and speed constant and reliable torque for the constant speed control system.
3. Drying box with quartz heating tube, thermal efficiency, long life, easy installation;
4. With hot air circulation system inside the temperature uniformity can not easily burn great film;
5. Temperature control with PID regulation system, control of high precision reliable;
