800W Ultrasonic Welding Machine Pouch Cell Battery Machine

800W Ultrasonic Welding Machine Pouch Cell Battery Machine
800W Ultrasonic Welding Machine Pouch Cell Battery Machine 800W Ultrasonic Welding Machine Pouch Cell Battery Machine 800W Ultrasonic Welding Machine Pouch Cell Battery Machine 800W Ultrasonic Welding Machine Pouch Cell Battery Machine

Large Image :  800W Ultrasonic Welding Machine Pouch Cell Battery Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-800
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $6350-$87500/set
Packaging Details: Standard wooden box for export.
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 50 sets per month

800W Ultrasonic Welding Machine Pouch Cell Battery Machine

Description
Production Name: Ultrasonic Welding Machine Usage: Lithium Ion Battey Research And Production
MOQ: 1 Set Customzie: YES
Shipping: By Sea/Air/Express/Land Supply: Lithium Ion Battery Production Equipment
Max Input Power: 800 Frequency: 40 KHZ
High Light:

800W Ultrasonic Welding Machine

,

pouch cell battery Machine 40 KHZ

,

lithium ion battery production equipment

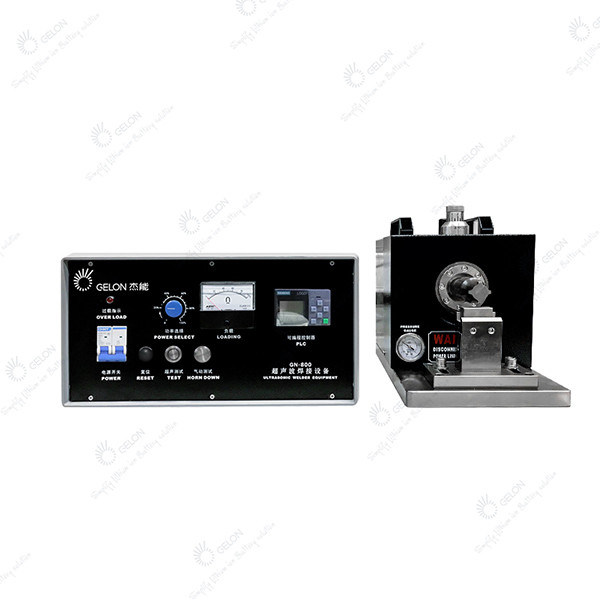

High-Power Ultrasonic Welding Machine Pouch Cell Battery Machine



GN-800 is a ultrasonic metal welder designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories.This welder is suit for max.of 20 layers electrodes welding.(If you need more layers welder,pls contact us).



Index:

1. Input voltage: 220V AC 50Hz
2. Max. Power Consumption:0-800W
3. Welding Area:4mm(L) x 4mm(W)
4. Ultrasonic Frequency:30 - 40 kHz Adjustable frequency
5. Pneumatic Control:Air pressure at 0.5-0.8MPa (Air Compressor is not included)

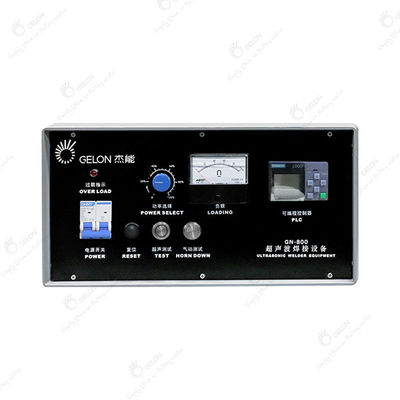

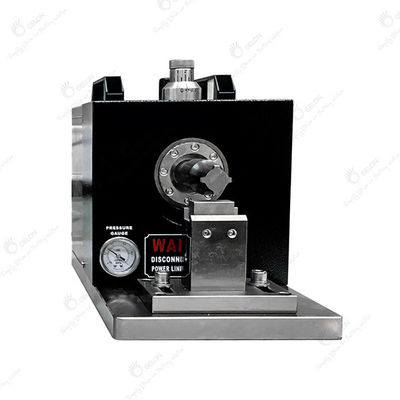

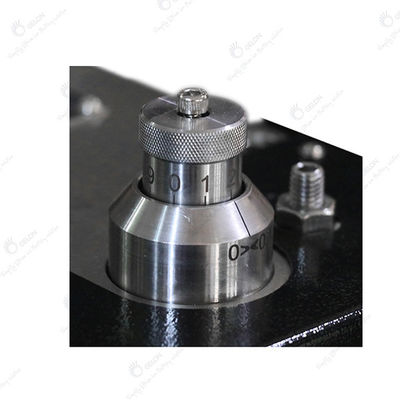

800W Ultrasonic Welding Machine Pouch Cell Battery Machine 0800W Ultrasonic Welding Machine Pouch Cell Battery Machine 1800W Ultrasonic Welding Machine Pouch Cell Battery Machine 2

Items and Specifications:





Item No. Frequency
(KHz)
Input Max
Electric Power
(VA)
Power Air Pressure
(Mpa)
Time
control(S)
NW(kg)
GN700 40 700 220V±10% 0.1-0.5 <1s 50-60
GN800 40 800 220V±10% 0.1-0.5 <1s 50-60
GN1000 25 1000 220V±10% 0.1-0.5 <1s 50-60
GN2000 20 2000 220V±10% 0.2-0.5 <1s 70-80
GN3000 20 3000 220V±10% 0.-0.5 <1s 70-80
GN4000 20 4000 220V±10% 0.2-0.5 <1s 70-80
GN4500 20 4500 220V±10% 0.2-0.5 <1s 70-80
GN5000 20 5000 220V±10% 0.2-0.5 <1s 70-80
GN5500 20 5500 220V±10% 0.2-0.5 <1s 70-80
GN6000 20 6000 220V±10% 0.2-0.6 <1s 70-80
GN6500 20 6500 220V±10% 0.2-0.6 <1s 70-80
GN8000 20 8000 220V±10% 0.2-0.6 <1s 70-80





800W Ultrasonic Welding Machine Pouch Cell Battery Machine 3

800W Ultrasonic Welding Machine Pouch Cell Battery Machine 4



800W Ultrasonic Welding Machine Pouch Cell Battery Machine 5

Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

800W Ultrasonic Welding Machine Pouch Cell Battery Machine 6800W Ultrasonic Welding Machine Pouch Cell Battery Machine 7

800W Ultrasonic Welding Machine Pouch Cell Battery Machine 8
