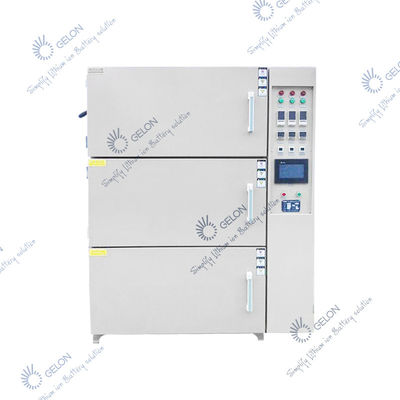

Large Image :  sus304 stainless steel plate three layers vacuum oven pouch cell assembly equipment

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-ZD3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 9500 -10500USD
Packaging Details: wooden box package
Delivery Time: 2months
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30sets per months

sus304 stainless steel plate three layers vacuum oven pouch cell assembly equipment

Description
Product Name: Three Layers Vacuum Oven Battery Type: Cylinder, Pouch, Prismatic, Coin Cell
Equipment Type: Full Automatic Efficiency: High Efficiency
Timing Range: 0~9999min Vacuum: <133Pa
Power: 4.5KW*3 Supply: Three-phase 380v

SUS304 stainless steel plate three layers vacuum oven pouch cell assembly equipment







  This series of vacuum drying oven is specially designed for the production process of lithium battery industry. The temperature range, the degree of vacuum, and the size of the working room and the height of the interlayer all meet the needs of the lithium battery industry to the greatest extent. There are three chambers in total, each of which is independently controlled, with independent temperature control and no interference with each other.

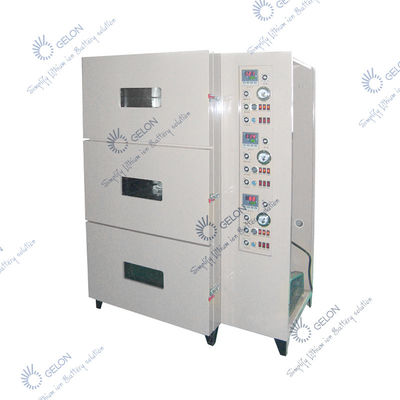

sus304 stainless steel plate three layers vacuum oven pouch cell assembly equipment 0

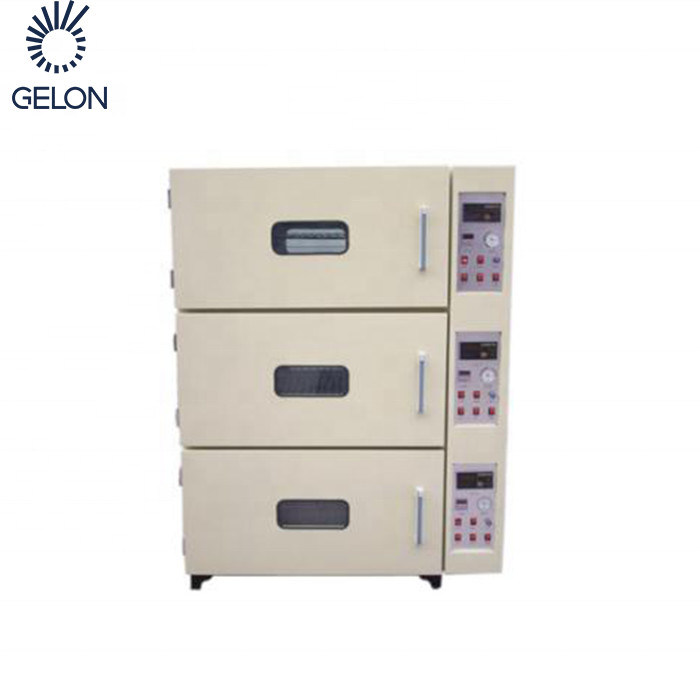

sus304 stainless steel plate three layers vacuum oven pouch cell assembly equipment 1sus304 stainless steel plate three layers vacuum oven pouch cell assembly equipment 2



Main technical parameters


1. Dimensions: about H1840× W1450× D800mm
2. Liner size: 300mm high* 800mm wide * 600mm deep × 3;
3. Studio material: stainless steel SUS304 3.0mmT;
4. Insulation material: high-quality aluminum silicate fiber insulation cotton to effectively prevent heat loss
5. Insulation thickness: 90mm
6. Sealing method: tight type, temperature-resistant silicone rubber integral sealing strip
7. Door opening method: single door opening (without window), aluminum plate installed on the door with auxiliary heating, with over-voltage protection;
8. Layering: divided into 2 layers, stainless steel mesh;
9. Heating device: Niluo alloy wire;
10. Heating method: external heating

sus304 stainless steel plate three layers vacuum oven pouch cell assembly equipment 3





SPECIFICATIONS
Supply
Three-phase 380v
Heating power
4.5KW*3
Working temperature
15~200℃
Gas leakage
≤1.0kPa/h
Temperature control mode
PID regulator
Working room material
SUS304 stainless steel plate





sus304 stainless steel plate three layers vacuum oven pouch cell assembly equipment 4



We also provide other full automatic production line .





sus304 stainless steel plate three layers vacuum oven pouch cell assembly equipment 5
