Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine

Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine

Large Image :  Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: Gelon
Certification: CE
Model Number: GN-HS200V-III
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: usd4800/ set - usd7000/set
Packaging Details: Standard export wooden package of 3-in-1 hot sealer
Delivery Time: 10-15 work days
Payment Terms: T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability: 200 pcs/days

Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine

Description
Product Name: Pouch Cell 3-IN-1 Hot Sealer Machine Air Supply: 0.5~0.8MPa Compressed Air Or Inert Gas
Sealing Length: Max.250mm Heat Sealing Time: 0~99s Adjustable, Recommended 5-6s
Head Temperature: 200℃ For Upper And 180℃ For Lower Heads Battery Size: Max. L220mm*W128mm*H12mm
Sealing Width: Standard 5mm( Customizable) Sealing Pressure: Through Air Pressure Regulation
Vacuum Degree: Adjustable, Up To -90 Kpa Or More Applicable Industries: Lithium Ion Battery Making

Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine​

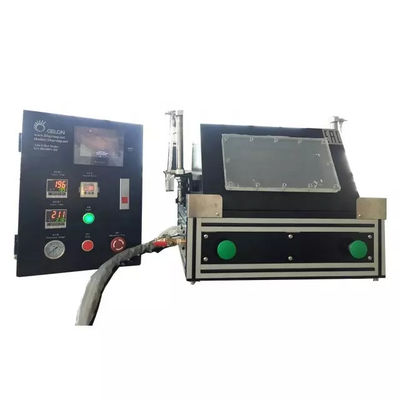

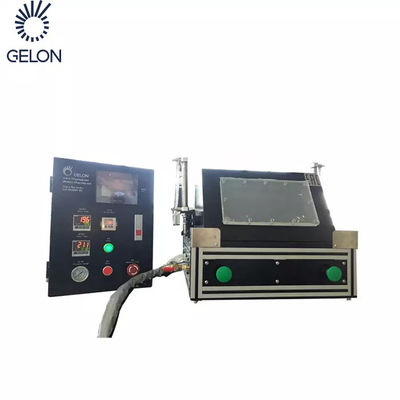

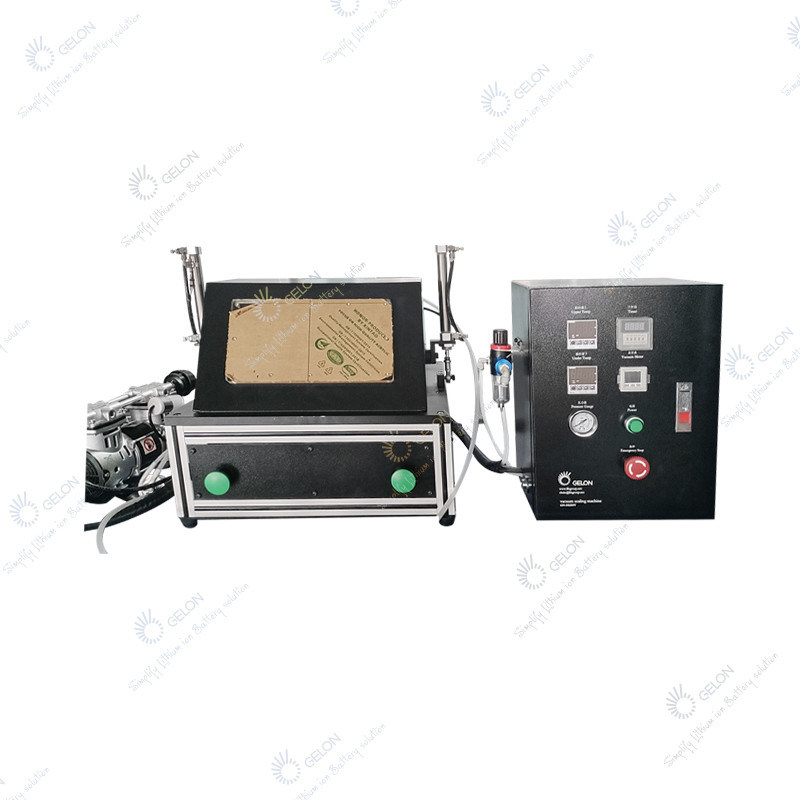

The 3-in-one machine (top-side sealing, vacuum standing ,vacuum sealing machine) can be applied to the sealing process of pouch cell battery. This machine is compact in design, can be placed in a glove box, and can be heat sealing, vacuum degassed, and vacuum sealing. The vacuum degree of the working chamber of the equipment is good, the sealing effect is excellent, and the finished battery is good.
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 0
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 1
PRODUCT SPECIFICATIONS
Specification
Datas
Power
Voltage single phase 220 VAC±10%(customizable 110 VAC),
frequency 50 Hz/60Hz, power 700 W
Air supply
0.5~0.8MPa Compressed air or inert gas
Head temperature
Up to 250℃ for upper and lower heads ,
200℃ for upper and 180℃ for lower heads
Temperature control accuracy
±2℃
Battery size
Max. L220mm*W128mm*H12mm
Sealing width
Standard 5mm( customizable)
Sealing length
Max.250mm
Sealing pressure
Through air pressure regulation
Heat sealing time
0~99s adjustable, recommended 5-6s
Vacuum degree
Adjustable, up to -90 Kpa or more
Equipment size
Main boday:about L470mm*W550mm*H430mm
Control box :about L420mm*W320mm*H430mm
SIMILAR PRODUCTS
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 2
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 3
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 4



Top and Side Sealing Machine
Vacuum Pre-sealing Machine
Second Sealing Machine
Company Profile


Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 5
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 6
We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 7
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 8
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 9
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 10
Top-side Sealing Machine 3-In-1 Pouch Cell Making Machine 11


RFQ:
Q: Are you trading company or manufacturer ?
Q: Can I visit your factory?
A:Yes,very welcome.

Q:How can I visit your company?
A:You can take flight to Linyi or Shenzhen airport ,we can pick you up there.
Please mail us when you have the visit plan,we will confirm the schedule with you.

Q:What is your terms of delivery?
A:We accept EXW, FOB, CIF,DAP etc. You can choose the one which is the most convenient or cost effective for you.

Q: How is your delivery time?
A: 1-3 days for sample orders or some equipments in stock.
10-30 days for mass production order(based on different quantities)

Q: What about the after-sale service?
A: One years warranty and lifetime free technical support.

Q: Do you provide other equipments or materials?
A: Yes, we provide full set lithium ion battery materials, equipments and technology for lab line ,pilot line and production line.
