Product Details:
|
| Forming Size: | Max.L60*W60mm | Forming Pressure: | Max. 10T |
|---|---|---|---|
| Punch Depth: | Max. 7mm | Forming Dimension Tolerance: | ±0.5mm |
| The Thickness Of Al Plastic Film: | 0.1~ 0.2mm | Gas Source: | 0.5-0.8MPa Compressed Air |
| Power: | 2500W | Equipment Dimension: | About L2000*W940*H1900mm |
| Equipment Weight: | About 1.5T | ||
| High Light: | pouch cells GELON lab,pouch cells GELON lab,pouch cell GELON lab |
||

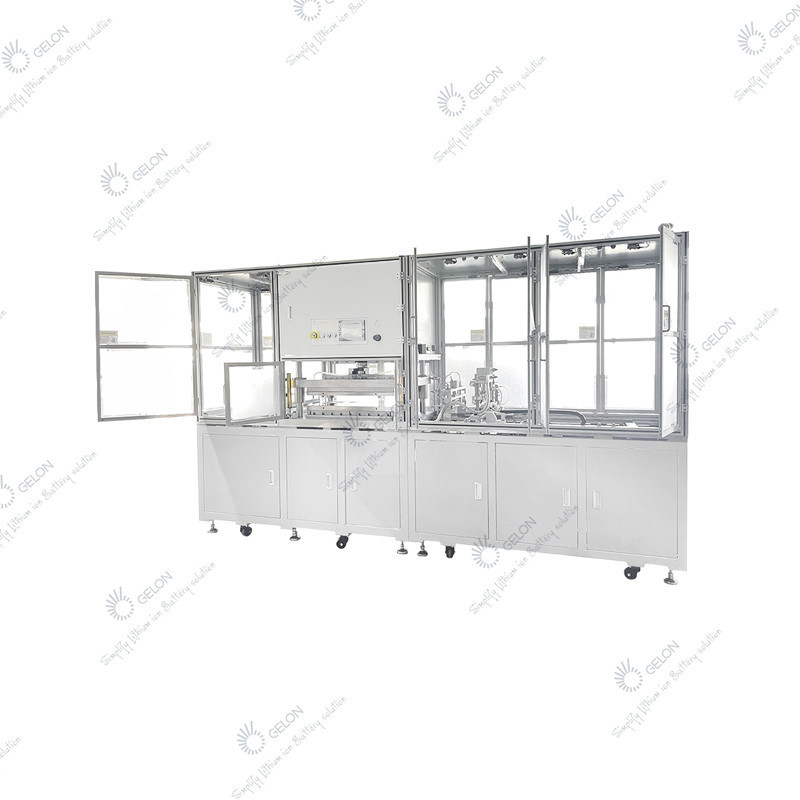

Pouch Cell Battery Polymer Case Cup Forming Machine Lithium Assembly Line Equipment
I.Equipment overview
1. Equipment function: The automatic roll to sheet cup forming machine is a machine specially designed for the aluminum-plastic film forming of lithium batteries. The forming molds made according to customer requirements , can realize the forming of aluminum-plastic film casings of lithium-ion batteries of different sizes, and have high safety performance , easy maintenance and other advantages.
2. Scope of applicability: The mold can also be designed with corresponding mechanical dimensions according to different specifications and different products provided by customers.
3. The working principle of the equipment: apply a high-precision forming pressurized cylinder to drive a set of precision forming molds. After reaching the lower mold, a pressurized space with a high precision can be formed. When the pressurizing work reaches the set range, the lower mold works to press and form.
II.Process effect
|
|
III.Technical parameters of equipment
| Name | Parameter | Remark |
| Forming size | Max.L60*W60mm | Can be customized according to customer requirements |
| Forming pressure | Max. 10T | Can be adjusted |
|
Punch depth |
Max. 7mm |
High tensile strength is related to the thickness of aluminum plastic film |
| Forming Dimension Tolerance | ±0.5mm | |
| The thickness of Al plastic film | 0.1~ 0.2mm | |
| Gas source | 0.5-0.8MPa compressed air | |
| Power | 2500W | |
| Equipment Dimension | About L2000*W940*H1900mm | |
| Equipment weight | About 1.5T |
