High Speed Auto Electrode Punching Machine Cutter Disc Battery Production Line

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

High Speed Auto Electrode Punching Machine Cutter Disc Battery Production Line

High Speed Auto Electrode Punching Machine Cutter Disc Battery Production Line
High Speed Auto Electrode Punching Machine Cutter Disc Battery Production Line

Large Image :  High Speed Auto Electrode Punching Machine Cutter Disc Battery Production Line

Product Details:
Place of Origin: CHINA
Brand Name: GELON
Certification: CE
Model Number: GN-S300P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 93000 / set
Packaging Details: Wood frame
Delivery Time: 30~45 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 sets / month

High Speed Auto Electrode Punching Machine Cutter Disc Battery Production Line

Description
Standard Cutting Die: 1 Pc (Customized) Punching Size: Max. L60*W60mm
Punching Force: Max. 1T(1MPa Compress Air) Punching Stroke: 12mm
Cutter Life Cycle: 10,000 Times Punching Thickness: Max. 0.5mm
Punching Accuracy: ±0.1mm Air Source: 0.6-1MPa Compress Air
Power: 3000W Size: L2000mm*W1000mm*H1800mm
Weight: About 1000Kg
High Light:

Pouch Cell Equipments

,

Pouch Cell Equipments

,

Pouch Cells Equipments



High Speed Auto Electrode Punching Machine Cutter Disc Battery Production Line 0





I.Introduction

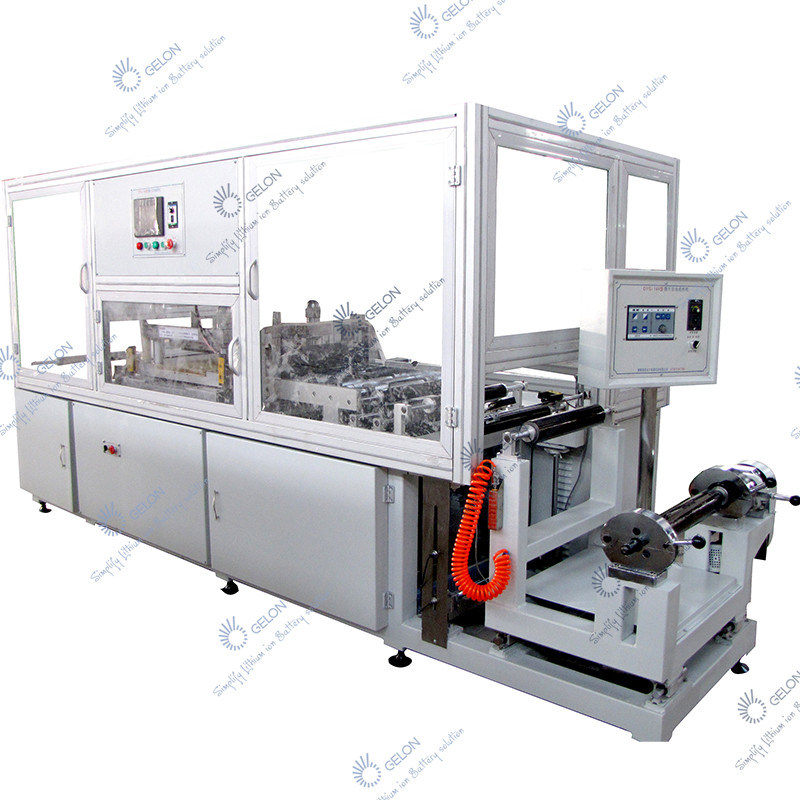

1. The automatic electrode punching machine is a kind of equipment cutting the cathode and anode electrode of lithium-ion batteries. The equipment adopts pneumatic method , to carry out single die punching electrode, and can provide various shapes of dies, according to customer requirements. So as to realize the molding and punching of different sizes of electrode . After the electrode is fed, and it will punching by cutting die.



  • Drive by cylinder , punching force and speed could be adjustable ; High strength frame, upper and lower precision pressing plates, high-performance tools, ensuring die cutting accuracy; The die-cut products have small burr, no powder falling, no indentation and other poor appearance; It is equipped with a set of standard cathode and anode cutting dies as standard, also can be customized; The drawer design of the upper and lower punching dies ensures safe operation.



3. Process : roll feeding - automatic deviation correction - automatic tension - automatic punching - receiving .



II. Technologic effects






  High Speed Auto Electrode Punching Machine Cutter Disc Battery Production Line 1



III.Parameter



Item Description Remark
Standard Cutting Die 1 pc Customized
Punching Size Max. L60*W60mm
Punching Force Max. 1T(1MPa compress air) Recommended regulating pressure: 500kg (0.5MPa)
Punching stroke 12mm Distance between cutter die and blanking plate
Cutter Life cycle 10,000 times
Punching thickness Max. 0.5mm Al / Cu foil as basic material
Punching accuracy ±0.1mm
Air Source 0.6-1MPa compress air
Power 3000W
Size L2000mm*W1000mm*H1800mm
Weight About 1000Kg
