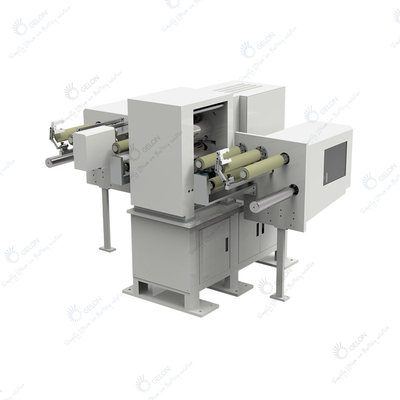

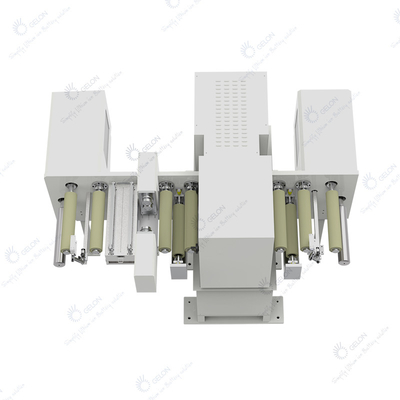

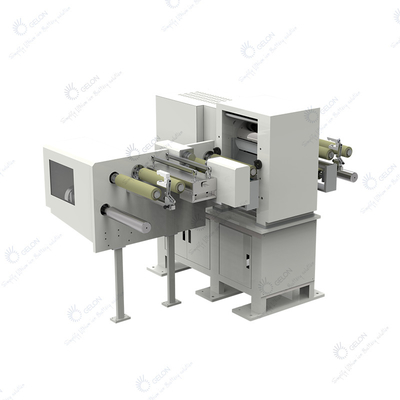

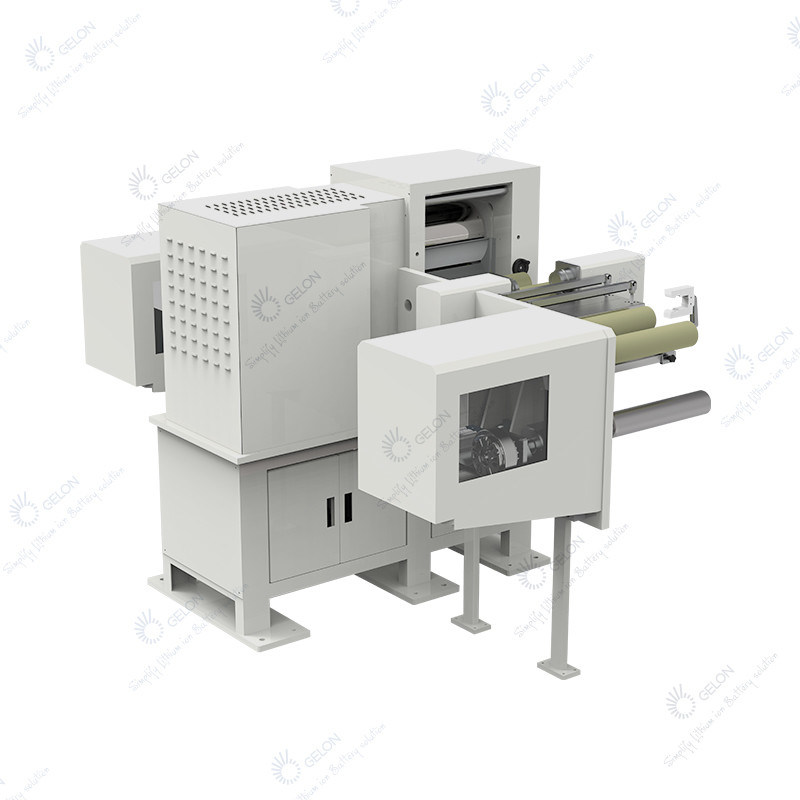

Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind

Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind
Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind

Large Image :  Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind

Product Details:
Place of Origin: CHINA
Brand Name: GELON
Certification: CE
Model Number: GN-HR-350H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 58000 / SET
Packaging Details: WOOD FRAME
Delivery Time: 30~45 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 SET/ MONTH

Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind

Description
Main Function: Pressing Electrode Reaches A Certain Thickness Roller Specification: ∮ 210x330mm (diameter * Width)
Roller Material: 9Cr3Mo Series Alloy Steel Roller Roller Surface Hardness: Above Hrc66
Roller Hardening Depth: ≥ 8mm Roller Chrome Plating: 0.08-0.12mm
Roller Surface Roughness: Ra ≤ 0.4 Gap Adjustment Roller Gap Adjustment: Manual
Maximum Working Pressur: 30T
High Light:

pouches cell GELON lab

,

pouches cell GELON lab

,

ni200 pouches cell GELON lab ni 201



Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind



Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind 0



I.Introduction

The calender is the main equipment in the electrode pressing production line. It is composed of cast steel gantry, rolls, variable frequency motor reducer, gap adjustment system, electrical control system, feeding guard plate and roll surface cleaning mechanism.



The main function is press electrode to reach the appropriate density by the roller, and meet the thickness requirements according to the electrode.



.Lithium Battery Calendering Machine Manufacturer Roll To Roll Winding And Rewind 1

II. Equipment configuration and parameters:

Roll measure: ∮ 210x330mm (diameter × width)

Operation mode: continuous operation

Machine speed: 5m / min

Material Type: Electrode

Appearance: Grey



1. Main body:

The main functional: Pressing electrode reaches a certain thickness

Roller specification: ∮ 210x330mm (diameter * width)

Roller Material: 9Cr3Mo series alloy steel roller

Roller Surface hardness: above hrc66

Roller Hardening depth: ≥ 8mm

Roller chrome plating: 0.08-0.12mm

Roller surface roughness: Ra ≤ 0.4

Roller gap adjustment : manual adjustment

Roller gap adjustment range: 0 ~ 2.0mm

Maximum working pressure: 80T

Equipment Color: Grey



Roller heating mode:(Optional)

The closed-loop control heating system : composed of temperature controller, solid-state relay and K-type thermocouple.

Heating power: 1.6kw * 2 ( 1pc / upper and lower rollers)

2. Unwinding

Unwinding shaft : inflation shaft with control valve, equipped with inflation gun

Specification : ∮3inches * 350mm

Electrode tension control : magnetic brake

Guide control : linear bearing guide

3. Trimming

Function : used to cut off the uncoated foil on both sides of the electrode, reduce the fold of the electrode caused by the inconsistent ductility during rolling, and reduce the scrap rate caused by the broken electrode belt

Principle : the upper cutting blade is manually fed and supported, and the left and right cutting blades are controlled separately.

Drive : frequency conversion motor drives the lower cutter shaft to be consistent with the rolling speed

4. Rewinding



Function : winding the rolled electrode material on the mandrel

Winding shaft : with control valve, inflation shaft with inflation gun

Specification : ∮3 inches * 350mm

Electrode tension control : magnetic brake

Guide control : linear bearing guide

Drive : the winding shaft through the motor reducer and magnetic clutch
