GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine

GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine
GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine

Large Image :  GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine

Product Details:
Place of Origin: China
Brand Name: GELON
Certification: CE
Model Number: GN-S600P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US 3000-5000 set
Packaging Details: Wooden box can be customized
Delivery Time: 5-15 sky
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 set per month

GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine

Description
Product Name: Lithium Battery Electrode Automatic Punching Machine Die Cutter Name: Electrode Punching Machine
Power Supply: 380V 50HZ Power(W): 5500W
Maximum Die Size: L140mm X W110mm, It Can Be Customized Die-cutting Burr Height: ≤ 0.02mm (can Not Pierce The Diaphragm)
Die Cutting Accuracy: ± 0.1mm Pressure: 0.4-0.8Mpa
Warranty: 1 Year Weight (T): 4.5 T
Dimension(L*W*H): 5000*2300*2000mm
High Light:

Die Cutter Pouch Cell Assembly Equipment

,

Automatic Punching Pouch Cell Assembly Equipment

,

380V Pouch Cell Case Forming Machine

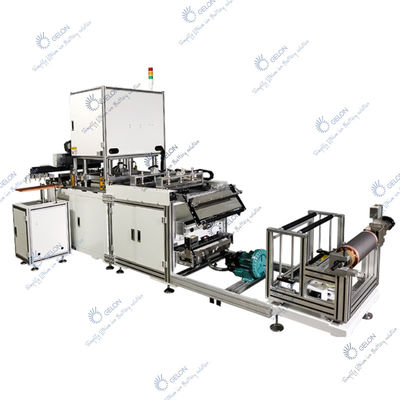

GELON Automatic Die Cutter Pouch Cell Electrodes Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine

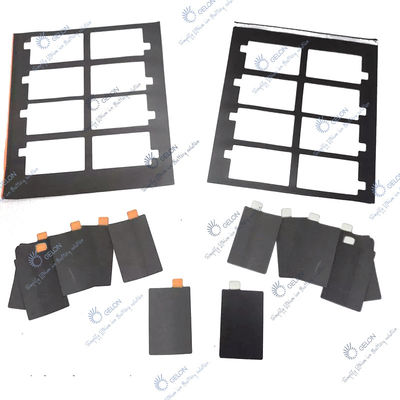

Semi-automatic die-cutting machine is an application in lithium ion laminated battery positive and negative die-cutting equipment.The device adopts the pneumatic way to carry out a single piece of punching for the chip pole piece, it can be placed in the glove box for use, and can provide various shapes of knife die according to customer's require to achieve different size of the battery pole piece forming and die cutting.





Chip pole piece feeding, knife template to achieve die cutting, can be used in the glove box;Cylinder drive, punching force and punching speed can be adjusted;High strength frame, upper and lower precision pressing plate, high performance cutting tools, to ensure the precision of die cutting;Die-cutting products burr small, no powder, no indentation and other bad appearance



Compressed air
0.4-0.8MPa
Max. Die size
L200*W200mm it can be customized
Max. Die Cutting Pressure
Max 1T
Die cutting accuracy:
± 0.1mm
Die-cutting burr height:
≤ 0.02mm (can not pierce the diaphragm)
Out Size
L5000 mm×W2300 mm×H2000mm



GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine 0

GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine 1

GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine 2

GELON Automatic Die Cutter Pouch Cell Assembly Equipment Pouch Cell Case Forming Machine 3
