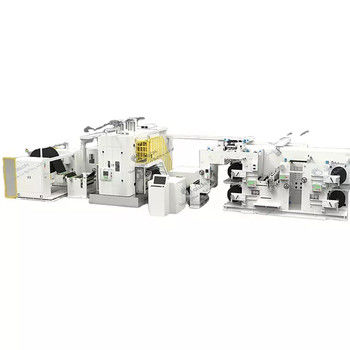

Large Image :  Battery Rolling Press Electrode Calendar Machine Pouch Cell Battery Assembly

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-HC800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD16482-26482/pcs
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5set/month

Battery Rolling Press Electrode Calendar Machine Pouch Cell Battery Assembly

Description
Product Name: Roll To Roll Calendar Machine For Li-ion Battery Max Working Pressure: 400T
Power: 120KW Effective Rolling Width: 700mm
Incoming Electrode Width: 50-800mm Width Cutting Accuracy: ≤ ±0.3mm
Voltage And Frequency: AC380V / 50Hz Calendaring Accuracy: ≤ ±2um
Correction Accuracy: ≤ 0.1mm Roll Size: 800*800mm(can Be Customized)
High Light:

Electrode Calendar Machine

,

Battery Rolling Press Calendar Machine

,

Pouch Cell Battery Assembly Calendar Machine

Battery Equipment Battery Rolling Press Machine Electrode Calendar Machine Pouch Cell Battery Assembly



The machine is to roll the positive / negative electrodes after coating continuously through the continuous hydraulic pressure roller machine, evenly calender the electrodes to the thickness required by the process, and then slit it into 2-4 electrodes that meet the technological requirement width, and rewind with alignment.

Incoming electrode width: 50-800mm;
Calendaring accuracy: ≤ ±2um
Width cutting accuracy: ≤ ±0.3mm;
Cutting burrs: Foil: ≤10um, Vertical direction of coating area: ≤7um;
Correction accuracy: ≤ 0.1mm



Roll Hardness HRC66-68
Voltage And Frequency AC380V/ 50Hz
Max. Working Pressure 400T



Battery Rolling Press Electrode Calendar Machine Pouch Cell Battery Assembly 0

Battery Rolling Press Electrode Calendar Machine Pouch Cell Battery Assembly 1Battery Rolling Press Electrode Calendar Machine Pouch Cell Battery Assembly 2Battery Rolling Press Electrode Calendar Machine Pouch Cell Battery Assembly 3Battery Rolling Press Electrode Calendar Machine Pouch Cell Battery Assembly 4Battery Rolling Press Electrode Calendar Machine Pouch Cell Battery Assembly 5
