Product Details:
|
| Name: | Lab Heat Coating Machine | Vacuum: | ≥-84Kpa |
|---|---|---|---|
| Temperature: | Max Temperature Can Be 150℃ | Adjusted Film Applicator: | 300mm |
| Power Supply: | AC220V/50Hz.110V/60Hz | Equipment Size: | L910*W570*H330mm |
| Net Weight: | 76Kg | Air Supply: | 0.5~0.8MPa Argon/nitrogen, Or 0.7MPa Compressed Air |
| High Light: | Lab Battery Electrode Coating Machine,300mm Battery Electrode Coating Machine,Lithium Battery Film Coating Machine |
||

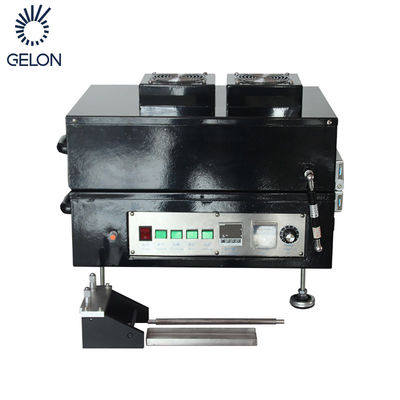

Electrode Coating Machine Lithium Ion Battery Film Coating Machine
Overview of equipment
This product is adjusted with a micrometer to achieve the thickness of the film to be applied. This machine is equipped with a precise adjustable film applicator, and the moving pole pushes it to move at a constant speed, so as to achieve the uniformity of the slurry coating on the substrate. This machine is especially suitable for making battery electrode, which can ensure the uniform density of cathode/anode electrode material everywhere on the electrode.
Features
1.The digital display temperature control drying system,
2.Digital display timer, free to set the drying time;
3.The appearance is exquisite, and the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
| Name | Parameters | Remarks |
| Vacuum | ≥-84Kpa | Can be adjusted according to need |
| Temperature | Max temperature can be 150℃ | Suggest temperature 120℃ |
| Vacuum plate | 300mm(L) x 600mm(W) | Other size can be customized |
| Vacuum plate hole | 231 holes(aboutΦ0.5mm/hole) | |

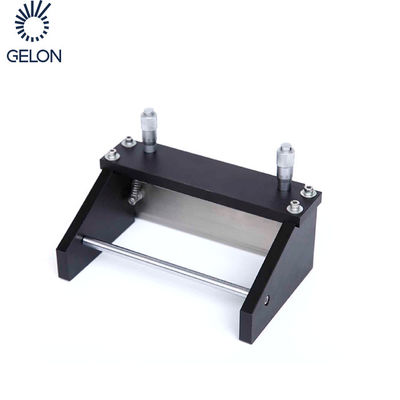

| Adjusted film applicator | 300mm | The equipment is equipped with a set of 300mm thickness adjustable film applicator as standard, accurancy 0.02mm, the adjustable thickness range is: 0.01 - 3.5 mm; (300mm thickness and width modulated film applicator is optional, and the coating film width can be anywhere between 0-300mm adjust);； |
| Air supply | 0.5~0.8MPa argon/nitrogen, or 0.7MPa compressed air | Compressed air is not recommended in the glove box |
| Power supply | AC220V/50Hz.110V/60Hz | Can be customized according to customer requirements |
| Capacity of vacuum pump | ≥30m³/h | |
| Power | 1200W | |
| Equipment size | About L910*W570*H330mm | |
| Package size | About L1230*W700*H510mm | |
| Net weight | About 76Kg | Not include vaccum pump |
| Gross weight | About 111kg | |
| Use the venue | It can be used in the glove box. Please check whether the space of the glove box matches the overall size of the equipment. | |
| Warranty | 1 year warranty, lifetime maintenance | |
| Remark: An viscometer can be optional to lock in the viscosity of the slurry used for optimal application, thus maintaining smoothness for each trial application. After coating, a vacuum oven may be required to dry the film and remove the adhesive . In order to secure the adhesion between the coated electrode material and the current collector base material, a roll press can be used. | ||
