Slurry Vacuum High Speed Double Planetary Mixing Machine For Li Ion Battery

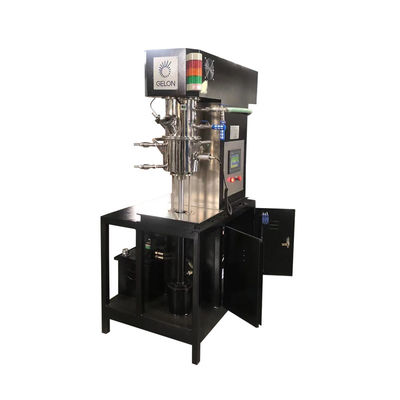

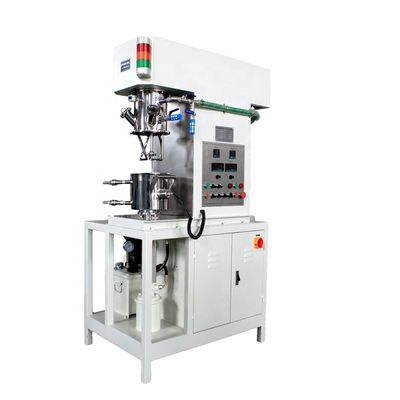

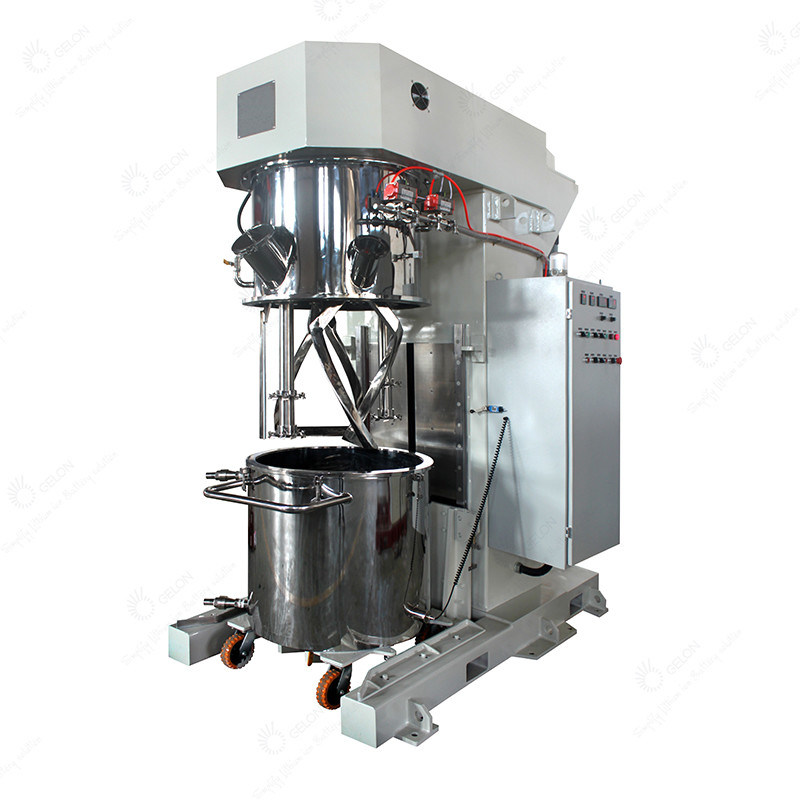

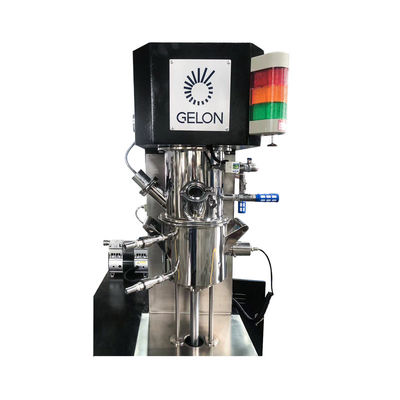

Large Image : Slurry Vacuum High Speed Double Planetary Mixing Machine For Li Ion Battery

Product Details:

Place of Origin:	CHINA
Brand Name:	GELON
Certification:	CE
Model Number:	2L 5L 10L 20L 60L 100L 1000L

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD20000-150000/Set
Packaging Details:	Wooden box
Delivery Time:	60days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000set/month

Contact Now

Slurry Vacuum High Speed Double Planetary Mixing Machine For Li Ion Battery

Description

Product Name:	Planetary Vacuum Mixing Machine	Barrel Volume (L):	2L 5L 10L 20L 60L 100L 1000L
Max. Loading Volume (L):	1000 L	Max. Loading Capacity:	1000
Material:	SUS304, SUS304L, SUS316, SUS316L	Applicable Industries:	Lithium Ion Battery Manufacturing
Mixing Propeller Shape:	Espiral	Vacuum Degree:	-0.098Mpa
Dispersion Speed(rotation):	0~4500rpm	Mixing Shaft/propeller Rotate Speed:	0~65rpm Can Be Adjustable
Linear Speed:	0~12m/s	Barrel Inside Materials:	SUS304
Range Of Spindle Speed(r.p.m):	1 - 50 R.p.m
Highlight:	Slurry Battery Mixing Machine , Li Battery Double Planetary Mixing Machine , Double Planetary Battery Mixing Machine

Slurry Vacuum Mixer High Speed Double Planetary Mixing Machine For Li ion Battery Equipment

GN-PM-20L Vacuum Planetary Mixer with effective 20-liter containers .It is a set of scattered, mixed multifunctional efficient equipment for lithium-ion polymer battery fluid and liquid lithium ion battery fluid, electronic battery paste.The main include disperser scraper paddle, mixing bucket, stir cover, stirring power head, temperature control device, the body lifting devices, lock barrel device and control system and other components.

Barrel part

lDesign Volume: 28L; working volume: 8-20L; lTank Liner Size: φ350mm × 300mm;

lContainer material: contact with material 304

Mixing part

lWorking frequency: 5-50hz lStirring power: 2.2kw

lRotor speed: 7-79rpm

lPlanetary box speed: 4-49 rpm

lImpeller diameter: 194mm


			Power
			1.85KW

			Working voltage
			380V/50Hz,3 phase

			Effective volume
			2L,5L,10L,20L,30L,60L

			Main shaft speed
			0-65rpm,can be adjustable

			Stirring speed
			0-105rpm,can be adjustable

			Dispersing speed
			0-3000rpm,can be adjustable

			Mixing blades
			3 axis planetary mixing 2 stirring blade

			1 dispersing blade

			1 spatula

			Accessories
			vacuum pump and water chiller can be included
