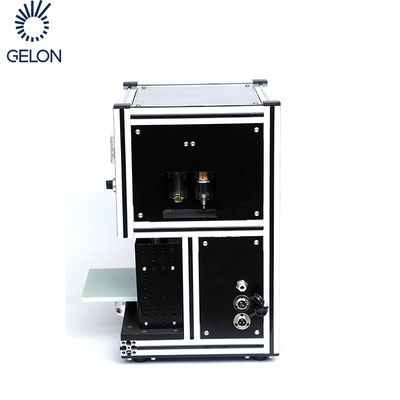

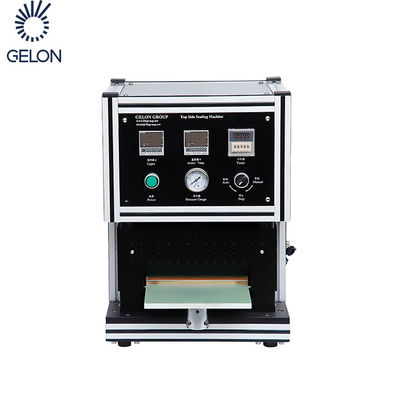

Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment

Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment
Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment

Large Image :  Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-HS200
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: USD 1400-1800/PCS
Packaging Details: Wooden Carton
Delivery Time: 4-6 week
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 PCS Per Month

Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment

Description
Power Supply: 220V 50Hz, 110V 60Hz Power: 2kw
Air Source: 0.4~ 0.6MPa Sealing Head Size: 300*10mm
Productivity: 600ea/H (According Worker's Experience) Outside Size: 550*500*500mm
High Light:

Battery Heat Sealing Machine 2kw

,

PLC control Battery Heat Sealing Machine

,

Heat Sealing Pouch Cell Assembly Equipment

Battery Top Side Heat Sealing Machine Pouch Cell Battery Sealing Assembly Machine Battery Equipment



1) The machine can be used for different sizes batteries and can be adjusted easily by speed governing (or changing) clamps or adjusting (or changing ) end cover.

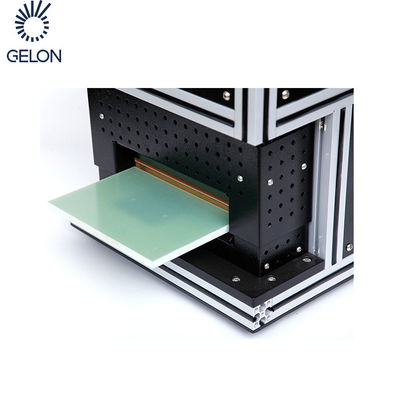

2) Top and bottom end covers are drove by two cylinders, moving elastically.

3) The cover is made of cooper material, having good heat effectiveness and saving electricity.

4) The pressure of top end cover can be adjusted by valve regulation.

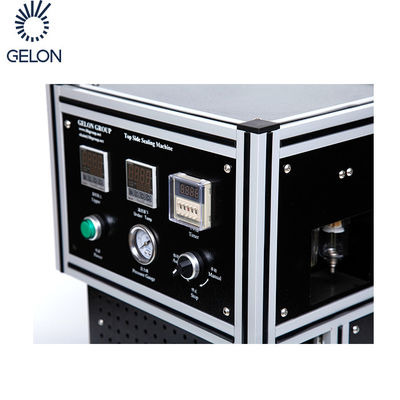

5) The temperature of top and bottom end covers can be adjusted by temperature controller.

6) The machine has the warning function on temperature anomaly.

7) The Machine has great protective function with safety light curtain and double buttons protection.

8) The machine has PLC controller for easily operating. It's light for carrying.

9) The machine's rack is
made of aluminium with good-looking. It can take manual operation while testing machine and take PLC auto-operation while bulk producing.

Machine Specification:

Name Model/Spec Name Model/Spec
Suitable size ≤200*200*12MM Dimension 450×300×400MM
Production capacity 600EA/H Weight 37KG
degree of parallelism of sealing head ±0.01mm Input power supply AC220V 50HZ
Sealing width 8MM Power 1.0KW
Temperature error ±2°C Input air source 0.6Mpa
Compressed air pipe diameter Φ8MM RH 20~90%RH
suitable thickness of aluminium film 0.1-0.3MM Current temperature 10~35°C
Sealing method Soft sealing






Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment 0



Our Services

1. Full set of lithium battery materials, including:
LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.
2. Full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine, etc.
3. Full set of lithium battery technology.
We can design the laboratory and production line, according to customer's requirements.

Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment 1



Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment 2

Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment 3

Top Side Battery Heat Sealing Machine 2kw 0.4 - 0.6MPa Pouch Cell Assembly Equipment 4
