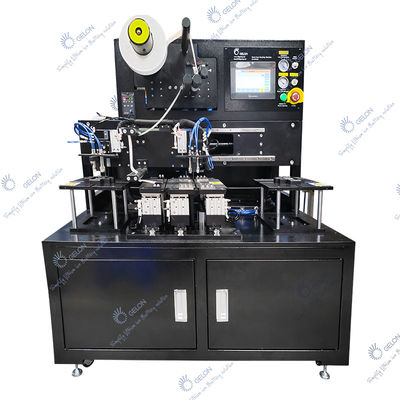

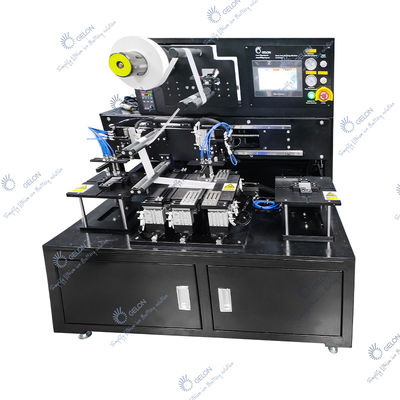

Desktop type Battery Electrode Separator Z Fold Lamination Semi Auto Battery Stacker

Description
Product Name: Battery Stacker Lamination Speed: Can Be Customization
Accuracy Of Laminated: ≤±0.5mm Compressed Sir Source: 0.5~0.8MPa
Warranty: 1 Year Laminated Type:: Z
Core Components: PLC, Gear, Pump Applicable Pole Piece Specifications: Long (0 ~ 200) Mm, Wide (0 ~ 200) Mm
Power Supply: AC220V/50Hz
High Light:

Battery Electrode Separator

,

Z Fold Battery Stacker

,

Semi Auto Battery Stacker

Battery Equipment Battery Electrode Separator Z-fold Lamination Semi-auto Stacking Machine Pouch Cell Battery Assembly



This equipment is suitable for the lamination process of lithium ion battery electrodes. The equipment adopts a tension roller structure design, automatic constant tension control of the coil isolation film, and the motor drives the left and right movement to realize the Z-type lamination. In this way, the entire cell’s stacking assembling is realized. the separator feeding adopts constant tension, and there is the automatic correction function of the electrode during the feeding process, and the feeding is neat and consistent; it has the characteristics of high stacking efficiency and high precision. Different electrode sizes can be realized by adjusting the fixture, which is suitable for R&D and sample production of laminated lithium-ion batteries.





1.Desktop type, which can be placed on an ordinary desktop; 2.Z-shaped semi-automatic stacking, automatic separator tension control; 3.Applicable cell stacks have a large size range, and battery size changes can be achieved by adjusting the fixture; 4.The number of stacking is automatically counted, reset manually, and a digital display counter is designed; 5.Use push button switch to control cylinder movement, PLC drive; 6.The electrode is placed manually, and the fixture assists the positioning to ensure the neatness of the stack;





No Item Data
1 Power 500W
2 Size L630*W710*H850mm
3 Weight 110kg
4 Laminated type Z-shaped
5 Lamination speed 12/s piece
6 Laminated layers Max.80
7 Accuracy of laminated ≤±0.5mm
8 Max Separator diameter 110mm
9 Separator width Max.200mm
10 Compressed sir source 0.5~0.8MPa



Our Services

We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
