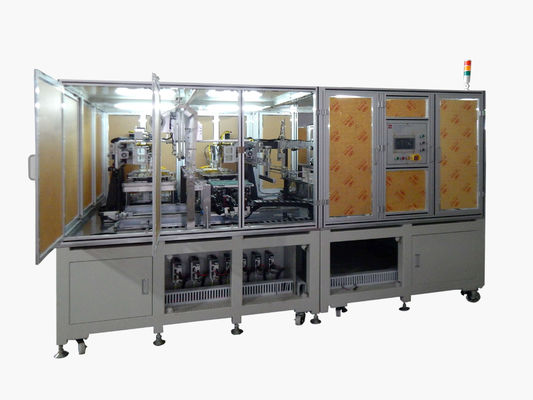

90Kpa-60Kpa Battery Manufacturing Machine , 220 / 110V Lithium Battery Production Line

Large Image : 90Kpa-60Kpa Battery Manufacturing Machine , 220 / 110V Lithium Battery Production Line

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-DP300A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$90,000 per set
Packaging Details:	Standard packing/Wood packing
Delivery Time:	20~35days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000 sets per month

Contact Now

90Kpa-60Kpa Battery Manufacturing Machine , 220 / 110V Lithium Battery Production Line

Description

Brand:	Gelon	Applicable Industries:	Energy & Mining
Weight (KG):	900KG	Power Supply:	220/110V 50/60Hz
Vacuum:	90Kpa-60Kpa	Air Pressure Source:	0.5MPa ~ 0.7MPa
Equipment Size:	200018001700mm(LWH)	Supply 1:	Lithium Ion Battery Materials
High Light:	90Kpa Battery Manufacturing Machine , 110V Battery Manufacturing Machine , Stacking Lithium Battery Production Line

Automatic Battery Lamination Stacking Machine Battery Equipment Manufacturers

1. Brief Description

The machine is used for stacking cathode, anode and separator together. Put cathode, anode and separator roll in the right

position, the mechanical arm automatically stacks electrodes and separator.

2. Technology Index * Power: AC220V±10%/2.0KW

* Compressed Air: 0.5 ～ 7Mpa

* Vacuum: 90Kpa ～ -60Kpa

* Weight: 900Kg

* Outside size: 2000mm*1800mm*1700mm (L*W*H)

* Productivity: 1.1~1.5S/pc

* Electrode putting precision: ±0.2mm

* Separator putting precision: ±0.2mm

Suitable battery core specification(can be customized according to the buyer’s request)

			Item

			GN-DP300A

Suitable

			battery core specs

			thickness(mm)

			0～20

			width(mm)

			80～150

			length(mm)

			200～300

			Tabs length(mm)

			Q≤30

			vacuum

			Connect the user’s vacuum source(match the vacuum

			magnetic valve

			temhumidity

			5-45℃; 5-65%

Compressed air

			pressure 0.5-0.7Mpa(5kgf-7kgf/cm2)

			using volume 200L/min

			dry(with filter device)

			Single piece efficiency

			2~2.5s/pcs

			Single cell making time

			20S-40S(according to the length)

			Accuracy for Electrode And separator

			center error<±0.5mm

			stacking core width

			Min: anode electrode +0.6mmMax: anode width+1.3mm

			Stacking layer

			If within the thickness allowed range,can be set

			Battery core thickness

			≤20

			Fixture

			Suitable the single side tab

			Take down

			Worker take down and taping

90Kpa-60Kpa Battery Manufacturing Machine , 220 / 110V Lithium Battery Production Line 5
