GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

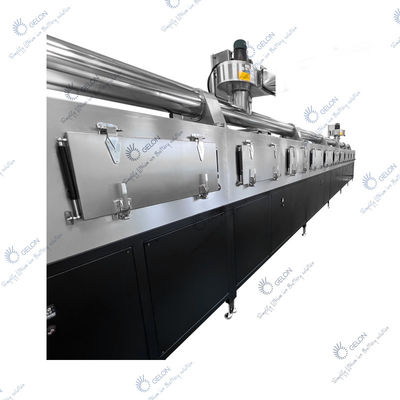

GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine

GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine
GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine

Large Image :  GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-500C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9000-14300/set
Packaging Details: Standard Export wooden Box
Delivery Time: 30 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 3 set per month

GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine

Description
Power Supply: AC380V, 50Hz Basic Material Thickness: Al Foil : 0.010--0.030mm Copper Foil : 0.006—0.030mm
Basic Material Width: 100-440mm The Max.thickness Of Wet Coating: 80-400um
Mechanical Belt Speed: 0. 5 ~ 7m/min Production Name: Battery Equipment Manufacturer Gelon Lithium Battery Production Line Slot Die Coating Machine
Warranty: 1 Year Coating Mould: Slot Die Coating
High Light:

AC380V Battery Electrode Coating Machine

,

7m/min Slot Die Coating Machine

,

PLC Slot Die Coating Machine

GELON Battery Electrode Coating Machine Battery Equipment Manufacturer Slot Die Coating Machine



Automatic coating machine adopt PLC touch screen to control tension,correction,servo,temperature and other system,high integration of the mechanical structure and high integrated closed-loop control system,reduce the equipment footprint,energy efficient,suitable for lagre-scale production of lithium battery production.


Type: Blade doctor, slot die coater


Coating accuracy:
1.dry thickness of the accuracy tolerance: single side cathode: ±2.5μm, single side anode: ±2.5μm(testing 4-5 point on the transverse section,100mm on the Vertical section)
2..coating the positive and negative alignment tolerance:≤ ± 1.0mm
3.The average length tolerance: ≤ ± 1.0mm ;
4.The average width of the tolerance: ≤ ± 1.0mm .



Basic maaterial thickness
Aluminum foil 0.012-0.030mm;Copper foil 0.008-0.030mm
Basic material width
Aluminum foil 100-440mm;Copper foil 100-440mm
The max coating width
300mm
Maximum wet coating thickness
80-400um(viscosity of the slurry be allowed)
The mechanical tape speed
0.5-8m/min(max)
The coating speed
0.5—2.5M/min(different from the slurry material,thickness,viscosity)

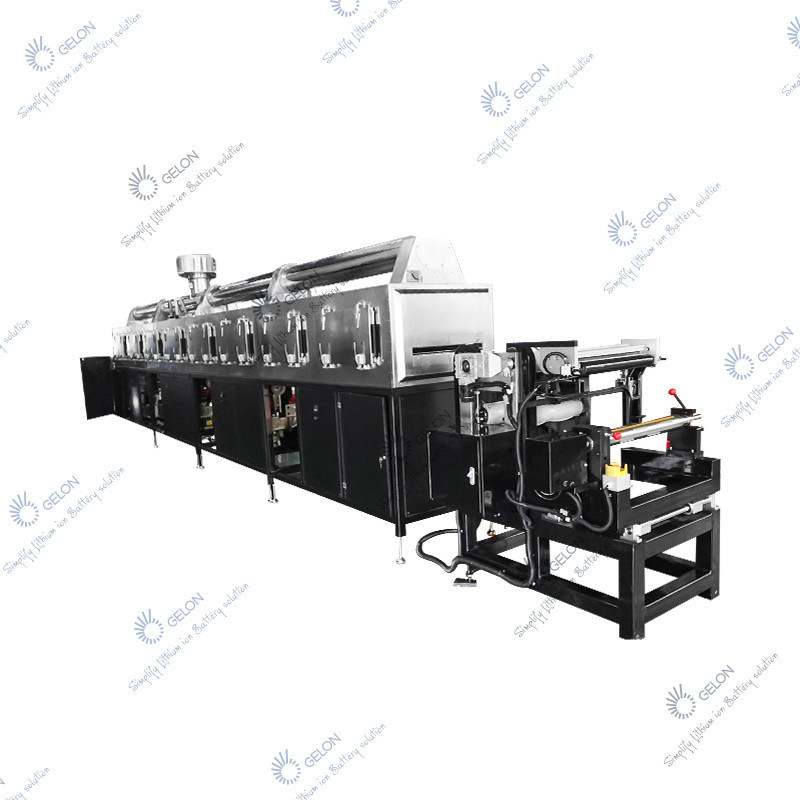

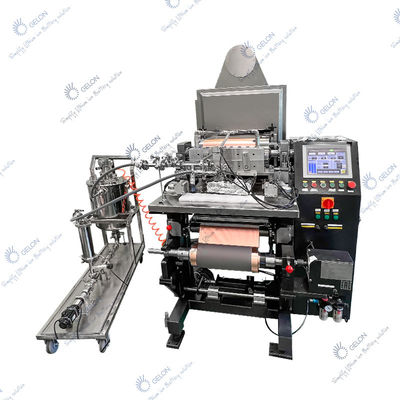

GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine 0GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine 1



Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

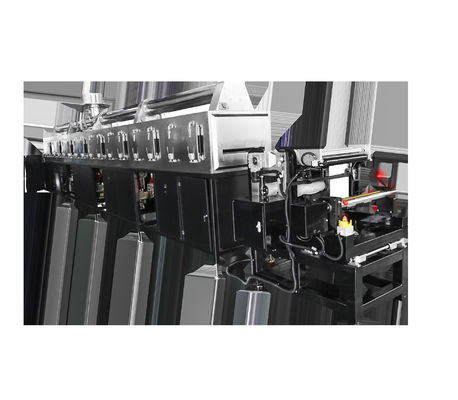

GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine 2GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine 3

GELON Battery Electrode Coating Machine , Battery Slot Die Coating Machine 4

What can we supply:

1.) full set of lithium battery materials,including :
LiMn2O4, LTO, NCA, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.


2.) full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.


3.) full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
