Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon

Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon
Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon

Large Image :  Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon

Product Details:
Place of Origin: CHINA
Brand Name: GELON
Certification: CE
Model Number: GN-WS21
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 89,000- 10900/set
Packaging Details: Standard Woodframe export package
Delivery Time: 30~45 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 set / month

Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon

Description
Power Supply: Single Phase AC220V ± 10% 50Hz Air Supply: 0.5-0.7mpa (when The Air Supply Is 0.5MPa, The Required Flow Is 300NL / Min)
Working Temperature: 0-55 ℃ Use Environment: No Corrosive Gas Or Combustible Environment, And No Harsh Environment Of Dust
Dimension: 2850 X 2050 X 1800mm (Customized) Color: Silver (Customized)
Weight: About 3000kg (≤ 750KG / M2) Power: 12KW
Noise: ≤ 75db (excluding Dust Suction Fan)
High Light:

12KW Lithium Battery Production Line

,

Cylinder Cell Battery Winding Machine

,

Semi Auto Battery Winding Machine

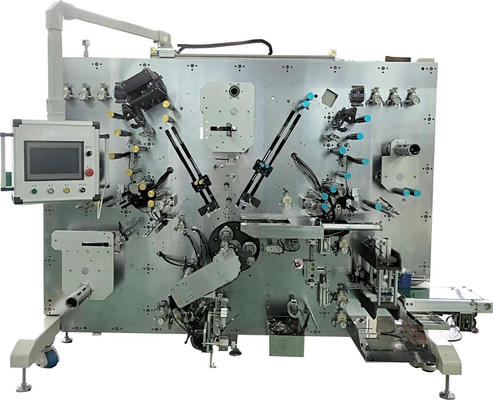

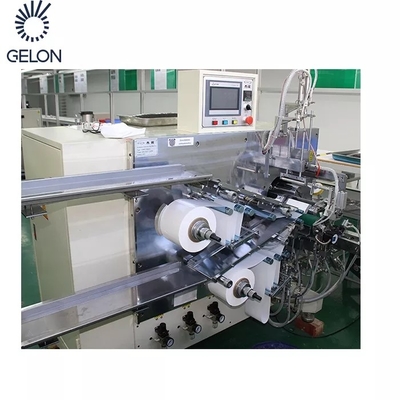

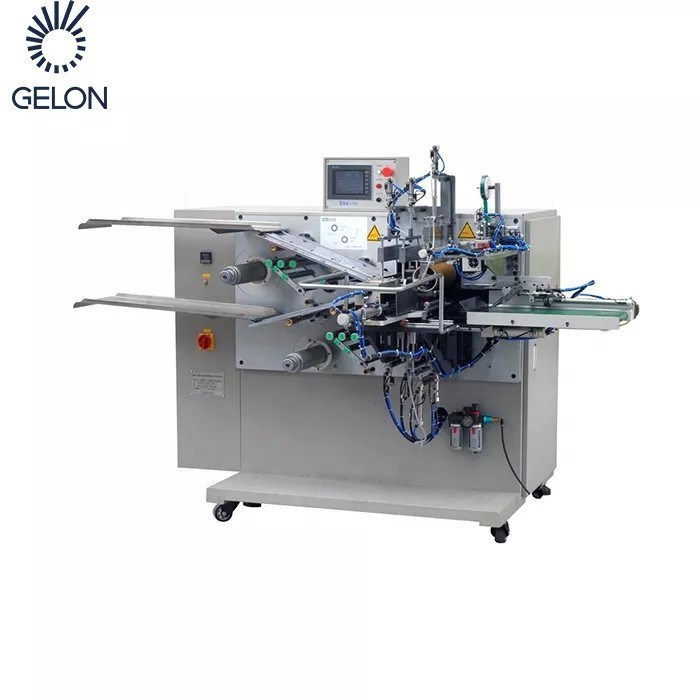

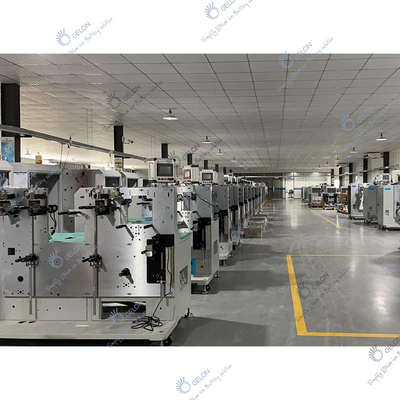

Gelon Battery Equipment Cylinder cell lithium battery production line Auto-Semiauto winding machine Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon 0Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon 1



I. Introduction



Feature:

1. Full cam control is adopted for the pulling and pushing needle and reversing. The equipment is stable, with high efficiency and low failure rate.

2. The electrode adopts three-way deviation correction control: unwinding , process and pre-winding to ensure product quality.



The equipment winds the positive and negative electrode pieces and diaphragms of lithium-ion battery elements around the battery cells after passing through mechanisms such as dust removal, tension control, quality inspection, length measurement, traveling deviation correction, static electricity elimination, etc; After the completion of the production of the cell, the short-circuit test, defective discharge and transmission from the conveyor belt.





II.Specifications



  Roller Width(mm) Thickness(μm) Length (mm) Material OD Max.(mm) Material ID (mm)
Cathode 1 40-70 80-180 700-1500 Φ450 Φ76.2
Anode 1 40-70 80-180 700-1500 Φ450 Φ76.2
separator 2 40-70 12-35   Φ300 Φ76.2
Strapping tape 1 25-65 20-60   Φ200 Φ76.2

1. Winding method:



A. 3 position winding with 3 winding needles.

B. Needle diameter Ø 3.5 (or customized (Ø 3.5 - Ø 8.0))

C. Winding diameter: Φ 18 - Φ 23mm (applicable to 18650, 21700, etc.)

D. Number of tabs: 1-2 for both cathode and anode, or all tabs

E. Exposed Tabs length: 8-25mm



2.Winding accuracy

A. Alignment of cathode and anode : ± 0.3mm

B. Alignment between electrode and separator: ± 0.3mm

Note: cathode and anode are corrected 3 times respectively (unwinding correction, process correction and pre-winding correction)

C.Alignment of two layers of separator: ± 0.5mm



3.Winding capacity

1. Production capacity



Production speed : ≥ 20 ppm within 1200mm long Anode; (21700 cells)

Crop mobilization rate ≥ 95%



mobilization rate = {total production / (startup time - necessary deduction time) × Theoretical production speed of equipment} × 100%, necessary deduction time: downtime caused by non equipment reasons, such as production preparation time for refueling and belt connection.



2. Qualification rate ≥ 98%



Qualification rate = total number of good products / (total production - necessary deduction) × 100%(except for poor materials)



It is necessary to deduct the quantity of defective products caused by non equipment factors, such as poor tape connection, out of tolerance of foil length, defective missing tabs, etc.



Tension of cathode and anode : 20N adjustable (settable)

Diaphragm tension: 10N adjustable (settable)





IV. Equipment installation and commissioning



1. Power supply: single phase AC220V ± 10% 50Hz



2. Air supply: 0.5-0.7mpa (when the air supply is 0.5MPa,

the required flow is 300NL / min)



3. Use environment (according to JISB3502)

A.Working temperature: 0-55 ℃

B. In the drying room, there must be no corrosive gas or combustible environment, and no harsh environment of dust



4. Dimension: 2850 X 2050 X 1800mm (Customized)



5. Color: silver (Customized)



6. Weight: About 3000kg (≤ 750KG / m2).



7. Power: 12KW



8.Noise: ≤ 75db (excluding dust suction fan)









Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon 2

Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon 3Cylinder Cell Lithium Battery Production Line Auto / Semi Auto Gelon 4



What can we supply:

1.) full set of lithium battery materials,including :
LiMn2O4, LTO, NCA, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.


2.) full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.


3.) full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
