Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

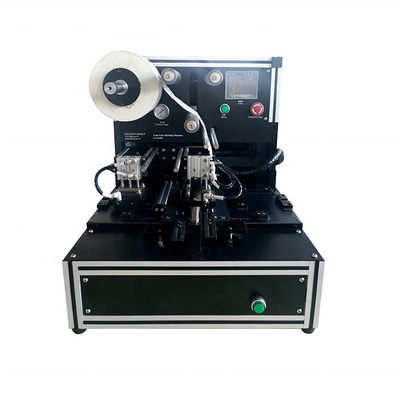

Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell

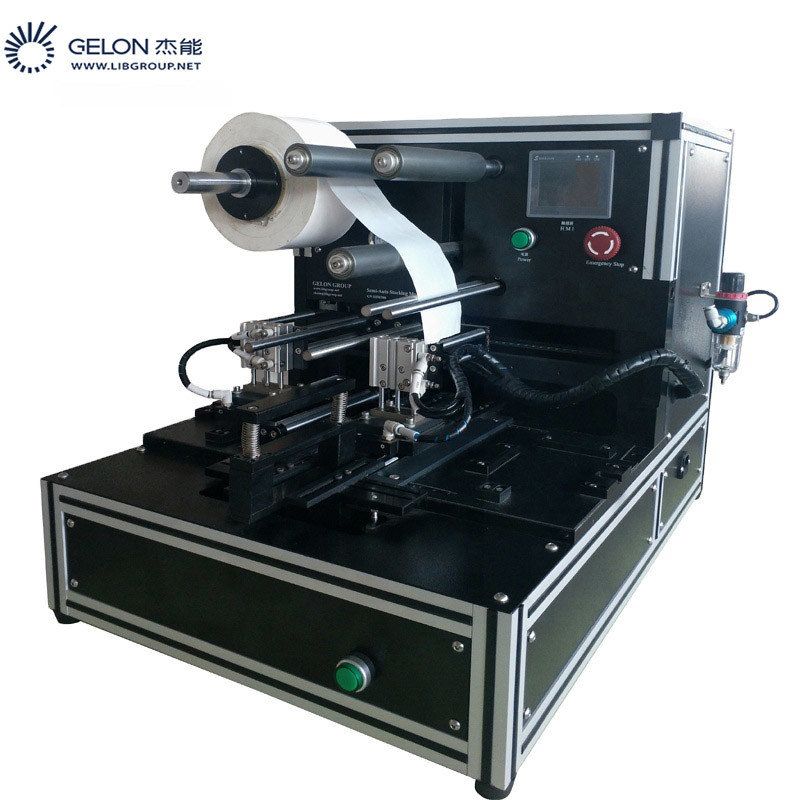

Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell

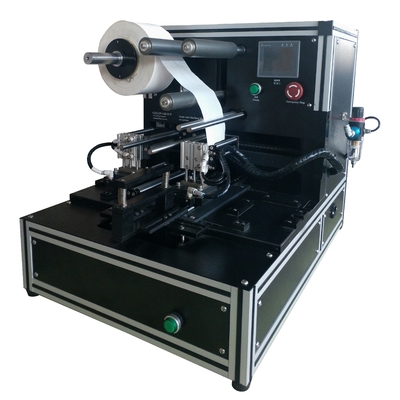

Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell
Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell

Large Image :  Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Stacking Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$2000~9000 per set
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month

Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell

Description
Brand: Gelon Lamination Speed: Can Be Customization
Accuracy Of Laminated: ≤±0.5mm Compressed Sir Source: 0.5~0.8MPa
Warranty: 1 Year Laminated Type:: Z
Core Components: PLC, Gear, Pump Production Name: Battery Euipment Manufacturer Gelon Semi-auto Lab Stacking Machine For Lithium Pouch Cell
High Light:

Lab Stacking Pouch Cell Battery Assembly

,

Lithium Pouch Cell Battery Stacking Machine

,

0.8MPa Battery Stacking Machine

Battery Euipment Manufacturer Gelon Semi-auto Lab Stacking Machine for Lithium Pouch Cell



This equipment is suitable for the lamination process of lithium ion battery electrodes. The equipment adopts a tension roller structure design, automatic constant tension control of the coil isolation film, and the motor drives the left and right movement to realize the Z-type lamination. In this way, the entire cell’s stacking assembling is realized. the separator feeding adopts constant tension, and there is the automatic correction function of the electrode during the feeding process, and the feeding is neat and consistent; it has the characteristics of high stacking efficiency and high precision. Different electrode sizes can be realized by adjusting the fixture, which is suitable for R&D and sample production of laminated lithium-ion batteries.





1.Desktop type, which can be placed on an ordinary desktop;

2.Z-shaped semi-automatic stacking, automatic separator tension control;

3.Applicable cell stacks have a large size range, and battery size changes can be achieved by adjusting the fixture;

4.The number of stacking is automatically counted, reset manually, and a digital display counter is designed;

5.Use push button switch to control cylinder movement, PLC drive;

6.The electrode is placed manually, and the fixture assists the positioning to ensure the neatness of the stack;





No Item Data
1 Power 500W
2 Size L630*W710*H850mm
3 Weight 110kg
4 Laminated type Z-shaped
5 Lamination speed 12/s piece
6 Laminated layers Max.80
7 Accuracy of laminated ≤±0.5mm
8 Max Separator diameter 110mm
9 Separator width Max.200mm
10 Compressed sir source 0.5~0.8MPa



Our Services

We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.

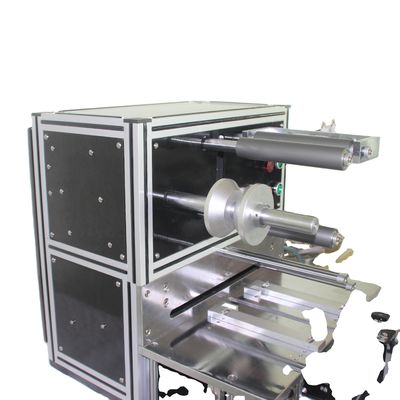

Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell 0







Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell 1

Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell 2Gelon Semi Auto Lab Battery Stacking Machine For Lithium Pouch Cell 3
