Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm

Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm
Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm

Large Image :  Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-500C:GN-1100C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9000-14300/set
Packaging Details: Standard Export wooden Box
Delivery Time: 30-60 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 3 set per month

Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm

Description
Power Supply: AC380V, 50Hz Basic Material Thickness: Al Foil : 0.010--0.030mm Copper Foil : 0.006—0.030mm
Basic Material Width: 100-1100mm The Max.thickness Of Wet Coating: 80-400um
Mechanical Belt Speed: 0. 5 ~ 70m/min Production Name: Battery Equipment Manufacturer Gelon Lithium Battery Production Line Slot Die Coating Machine
Warranty: 1 Year Coating Mould: Slot Die Coating
High Light:

Slot Die Battery Electrode Coating Machine

,

1100mm Battery Electrode Coating Machine

,

70m/min Electrode Coating Machine

Battery Electrode Coating Machine Gelon Lithium Ion Battery Electrode Coating Machine

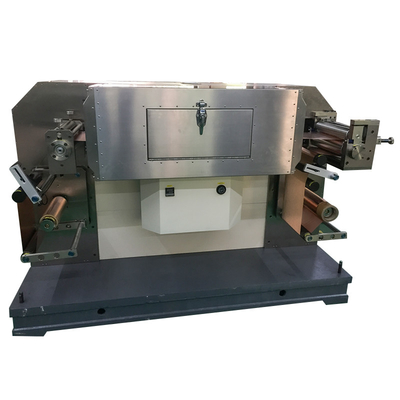

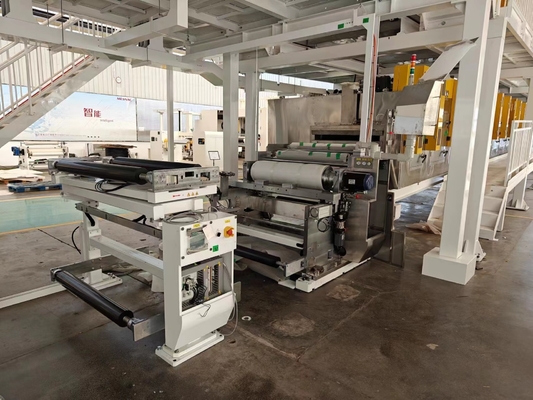

This equipment is used for precise coating of cathode and anode electrode of lithium ion batteries, which is mainly composed of unwinding part, machine head part, oven part, traction part, winding part and electric control part; Evenly coat the mixed slurry on the substrate to ensure that the size, weight, etc. are within the scope of the process. Winding the electrode after drying, prepare for the subsequent process.



Type: Blade doctor, slot die coater


Coating accuracy:
1.dry thickness of the accuracy tolerance: single side cathode: ±2.5μm, single side anode: ±2.5μm(testing 4-5 point on the transverse section,100mm on the Vertical section)
2..coating the positive and negative alignment tolerance:≤ ± 1.0mm
3.The average length tolerance: ≤ ± 1.0mm ;
4.The average width of the tolerance: ≤ ± 1.0mm .



Basic maaterial thickness
Aluminum foil 0.012-0.030mm;Copper foil 0.008-0.030mm
Basic material width
Aluminum foil 100-1000mm;Copper foil 100-1000mm
The max coating width
900mm
Maximum wet coating thickness
80-400um(viscosity of the slurry be allowed)
The mechanical tape speed
0.5-80m/min(max)
The coating speed
0.5—70M/min(different from the slurry material,thickness,viscosity)

Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm 0Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm 1

Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm 2



Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm 3Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm 4

Gelon Lithium Ion Battery Electrode Coating Machine 100-1100mm 5

What can we supply:

1.) full set of lithium battery materials,including :
LiMn2O4, LTO, NCA, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.


2.) full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.


3.) full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
