Lithium Battery Electrode Coating Machine , AC380V Battery Production Line

Lithium Battery Electrode Coating Machine , AC380V Battery Production Line
Lithium Battery Electrode Coating Machine , AC380V Battery Production Line Lithium Battery Electrode Coating Machine , AC380V Battery Production Line Lithium Battery Electrode Coating Machine , AC380V Battery Production Line Lithium Battery Electrode Coating Machine , AC380V Battery Production Line Lithium Battery Electrode Coating Machine , AC380V Battery Production Line

Large Image :  Lithium Battery Electrode Coating Machine , AC380V Battery Production Line

Product Details:
Place of Origin: China
Brand Name: Gelon
Model Number: GN-SD1100
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD700,000-7,000,000
Packaging Details: Wooden box
Delivery Time: 16 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20Set per year

Lithium Battery Electrode Coating Machine , AC380V Battery Production Line

Description
Certification: CE, ISO Accuracy: 2um
Weight: 30T Dimension(l*w*h): 80m*2.5m*8m
Power(w): AC380V Speed: 100M/min
Warranty: 1Year
High Light:

100M/min Battery Electrode Coating Machine

,

Electrode Coating Battery Production Line

,

AC380V Battery Production Line

Electrode Coating Machine Battery Production Line Equipment Battery Factory Machine Battery Electrode Coating Machine

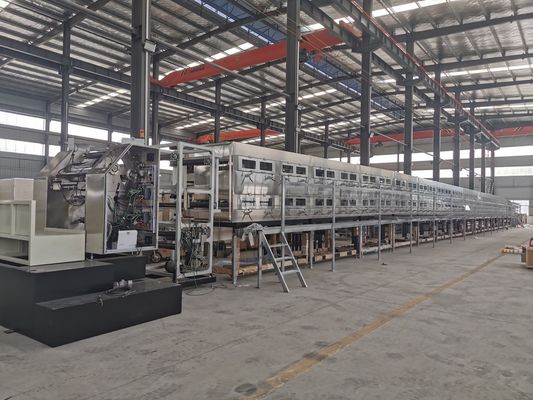

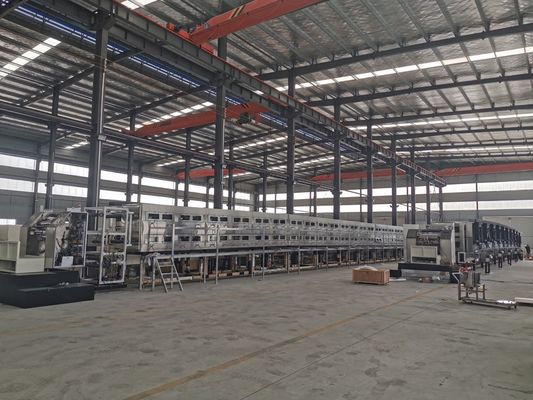

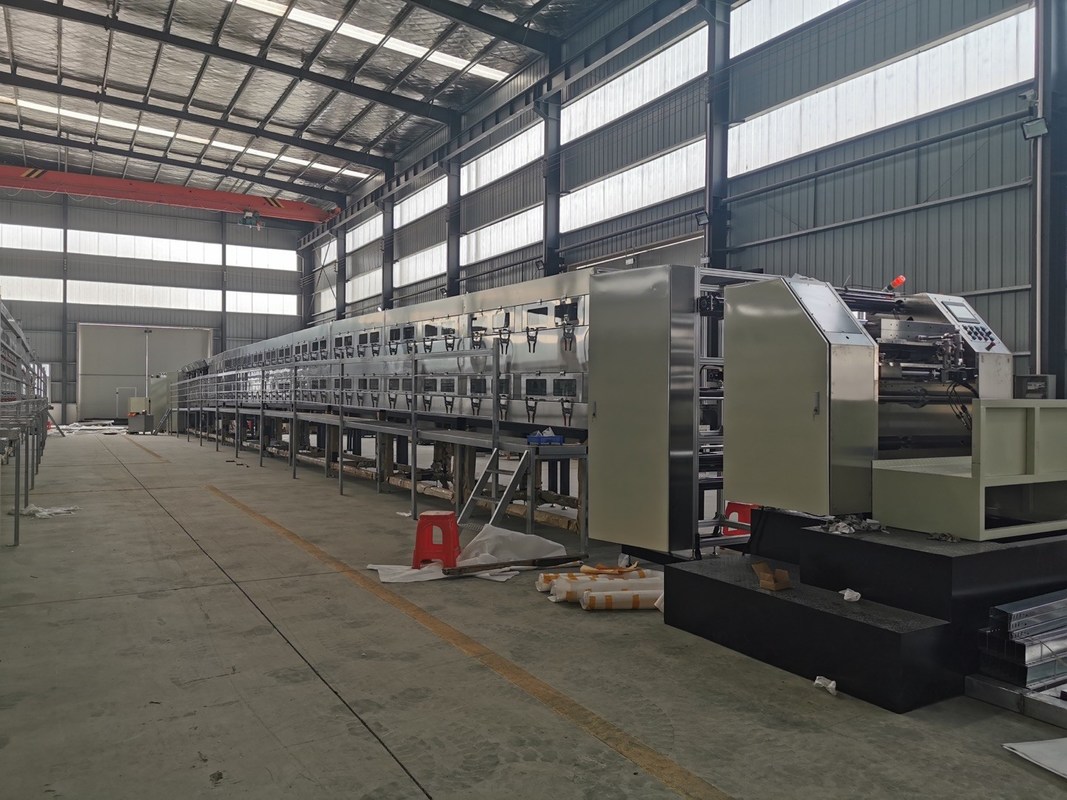

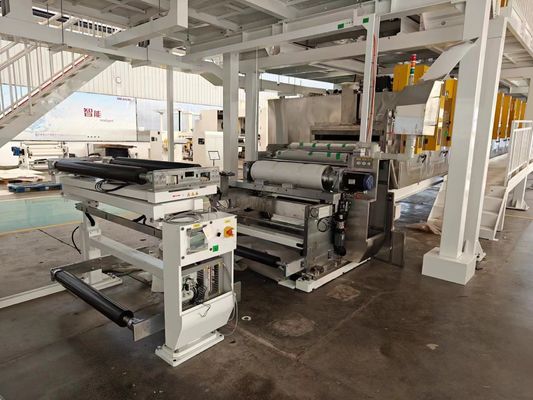

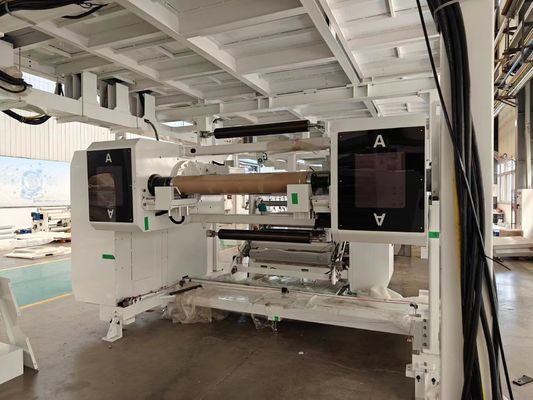

This equipment is used for precise coating of cathode and anode electrode of lithium ion batteries, which is mainly composed of unwinding part, machine head part, oven part, traction part, winding part and electric control part; Evenly coat the mixed slurry on the substrate to ensure that the size, weight, etc. are within the scope of the process. Winding the electrode after drying, prepare for the subsequent process.



Type: Blade doctor, slot die coater


Coating accuracy:
1.dry thickness of the accuracy tolerance: single side cathode: ±2.5μm, single side anode: ±2.5μm(testing 4-5 point on the transverse section,100mm on the Vertical section)
2..coating the positive and negative alignment tolerance:≤ ± 1.0mm
3.The average length tolerance: ≤ ± 1.0mm ;
4.The average width of the tolerance: ≤ ± 1.0mm .



Basic maaterial thickness
Aluminum foil 0.012-0.030mm;Copper foil 0.008-0.030mm
Basic material width
Aluminum foil 100-1000mm;Copper foil 100-1000mm
The max coating width
900mm
Maximum wet coating thickness
80-400um(viscosity of the slurry be allowed)
The mechanical tape speed
0.5-120m/min(max)
The coating speed
0.5—100M/min(different from the slurry material,thickness,viscosity)



Item Cathode Anode Tab film
Materials LFP,NMC ect Graphite Al2O3,Boehmite
Solvent NMP DI-Water NMP
Solid content(wt%) 40~75% 35~65% 15~30%
Slurry specific gravity(g/cm3) 1.5~3.0 1.0~2.0 1.1~1.7
Viscosity(mPa.s) 5000~15000 2000~8000 1000~8000

Remark:

  • Solid content of slurry in the same batch: fluctuation ≤±0.5%;
  • The viscosity of the same batch of slurry: fluctuation ≤±500mPa.s, 25±2℃;




Lithium Battery Electrode Coating Machine , AC380V Battery Production Line 0Lithium Battery Electrode Coating Machine , AC380V Battery Production Line 1Lithium Battery Electrode Coating Machine , AC380V Battery Production Line 2





Lithium Battery Electrode Coating Machine , AC380V Battery Production Line 3Lithium Battery Electrode Coating Machine , AC380V Battery Production Line 4

Lithium Battery Electrode Coating Machine , AC380V Battery Production Line 5Lithium Battery Electrode Coating Machine , AC380V Battery Production Line 6Lithium Battery Electrode Coating Machine , AC380V Battery Production Line 7
