Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation

Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation

Large Image :  Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-VM-7P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2000-2300$
Packaging Details: wooden box
Delivery Time: 30 days
Payment Terms: D/A,L/C,D/P,T/T
Supply Ability: 99sets/month
Contact Now

Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation

Description

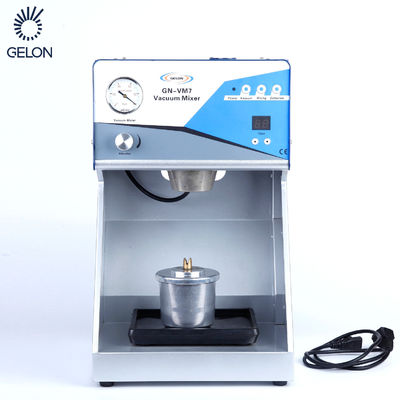

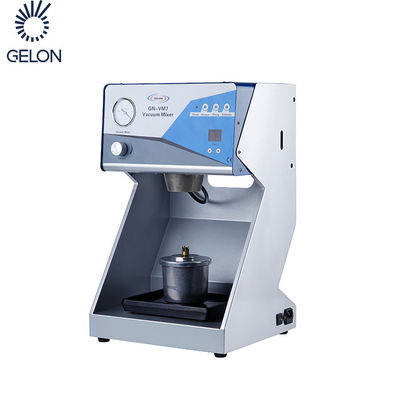

Product Name: Lab Planetary Vacuum Mixer Model: GN-VM-7P
Speed: Max.600rpm Mixing Time: 0-600min Can Be Set
Mixing Tank: 50ml-500ml Working Viscosity: Max.10000mpa.s Under The Condition Of 600r/min Speed
Vacuum: Built-in Vacuum Pump, -70Kpa Size: 360(L)*340(W)*580(H)mm

Lab Planetary Vacuum Mixer
The planetary vacuum mixer is designed for mixing various solvents and powders, particularly in the raw material batching process for lithium ion batteries, tape, solar energy, and chemical industries. This compact, user-friendly equipment features a human-machine interface for motor speed adjustment, driving blades to rotate and achieve uniform slurry mixing—making it an ideal choice for laboratory slurry preparation.
Key Features
  • Dual-shaft planetary ribbon stirring paddle and single-shaft blade stirring paddle configuration
  • Customizable stirring shaft forms and combinations based on tank size requirements
  • Forward and reverse mixing function for high-viscosity slurry with excellent uniformity
  • Vacuum environment effectively eliminates bubbles generated during mixing
  • Built-in vacuum system for optimal performance
  • Multi-stage speed operation with customizable stirring speed and time settings
  • Safety-focused bracket design for secure vacuum mixing operations
Available Specifications
Stirring Tank Volume Availability
50ml Standard Option
150ml Standard Option
500ml Standard Option
Custom Sizes Available upon request
