Cylinder Drive Aluminum Laminated Film Pouch Cell Case Forming Machine

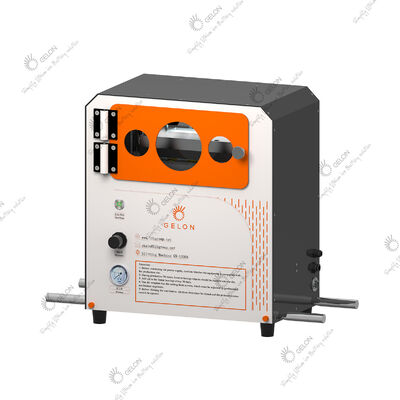

Large Image : Cylinder Drive Aluminum Laminated Film Pouch Cell Case Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	GELON
Certification:	CE
Model Number:	GN-S100F

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	standard wooden case
Delivery Time:	20-30 DAYS
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	50 pcs per month

Contact Now

Cylinder Drive Aluminum Laminated Film Pouch Cell Case Forming Machine

Description

Mobile Phone Lithium Ion Battery Aluminum Laminated Film Pouch Cell Case Forming Machine

Equipment Overview

Aluminum-plastic film forming machine is specialized equipment designed for forming aluminum-plastic film shells used in lithium-ion soft pack batteries. This cylinder-driven system accommodates various battery sizes through custom upper and lower forming dies, making it ideal for R&D and sample preparation applications.

Cylinder-driven operation requiring no electrical power, with adjustable molding pressure and speed

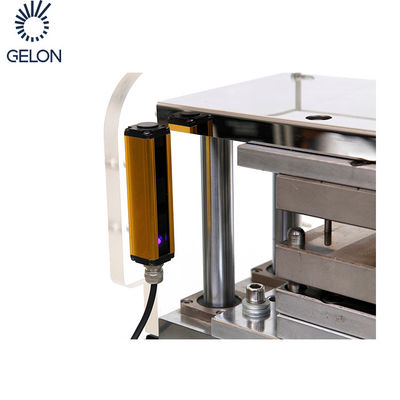

High-strength frame with precision upper and lower templates ensuring exceptional forming accuracy
Produces uniformly stretched products with high-quality stretching effects, free from defects like strain and cracks
Available with standard size molds or custom-produced according to specific customer requirements

Technical Specifications

Specification	Details
Air Source	0.8-1MPa compressed gas
Molding Size	Maximum L62*W46mm
Aluminum Plastic Film Size	160mm long * 110mm wide
Molding Pressure	Maximum 1T (1MPa compressed gas), adjustable
Punching Depth	Maximum 6mm (dependent on aluminum plastic film quality), standard depth gauge of 3, 4, 5, 6mm
Molding Accuracy	±0.05mm
Forming Thickness	0.1~0.2mm aluminum plastic film
Installation Size	L370mm * W245mm * H336mm
Weight	Approximately 45Kg
