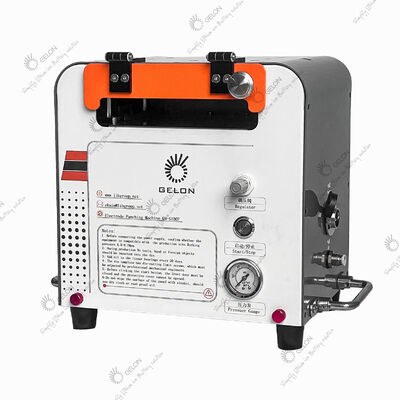

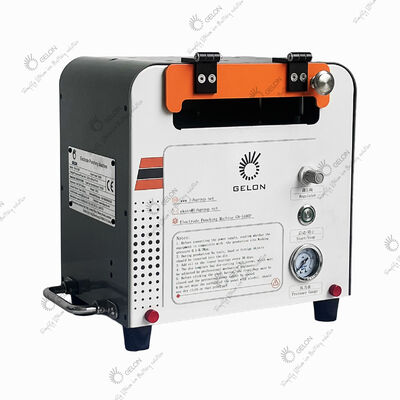

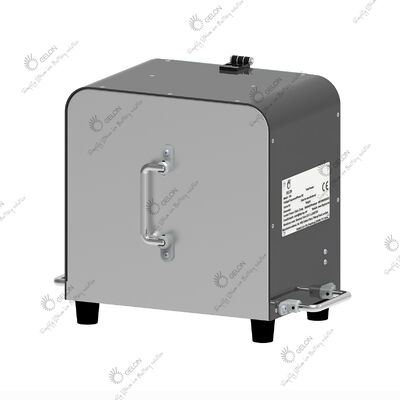

I. Equipment Introduction

1. This device is mainly suitable for die-cutting the cathode and anode electrodes of lithium-ion stacked batteries.

2. The device adopts pneumatic method to punch the single piece of the electrode , which can be placed in a glove box for use, and can provide various shapes of dies according to customer requirements to achieve the forming and die-cutting of battery electrode of different sizes

3. Chip electrode feeding, die cutting with die template, can be used in glove box

4. Comes standard with a set of cathode and anode electrode dies, which can also be customized according to customer requirements


II. Equipment Technical Parameters

Name

Parameters

Remarks

Standard Cutting Die

Cathode 56*43mm

Anode 58*45mm

Customized

Die Cutting Dimension

Max. L120*W80mm

Includes tab

Punching Pressure

Max. 1T

Recommended adjustment pressure 500Kg (0.5MPa)

Punching Stroke

About 30mm

The distance between the die and the punching plate

Die Life

5000~10,000 times



Die Cutting Burrs

≤100μm



Punching Thickness

Max. 0.35mm

Foil cathode and anode are aluminum/copper

Punching Accuracy

±0.1mm



Gas Source

0.5~0.8MPa argon, nitrogen, or 0.7MPa compressed air

1. The equipment must be placed in the glove box with inert gas (argon, nitrogen).

2. The equipment is placed in the drying room with conventional air source/drying gas

Power Source

AC220V/50Hz.110V/60Hz

Customized

Power

100W



Equipment Dimensions

≈L397*W314*H336mm



Size after Packaging

≈L470*W400*H560mm



Equipment N.W.

About 35kg



Equipment G.W.

About 47.5kg



Usage Site



It can be used in the glove box. Please check whether the space of the glove box matches the overall size of the equipment.

Warranty

1 year warranty, lifetime maintenance
