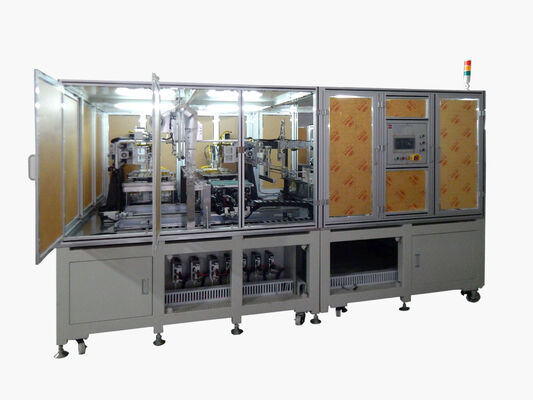

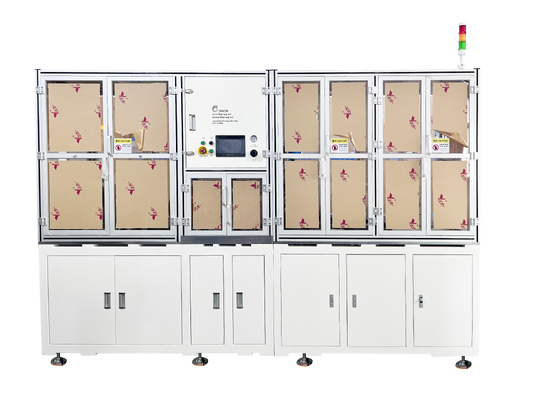

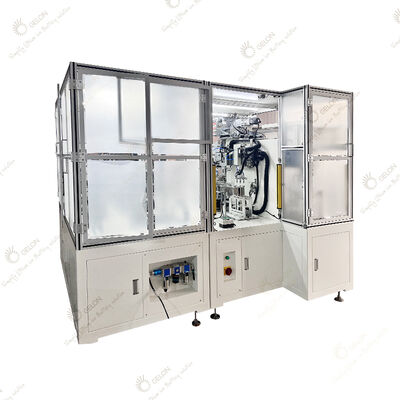

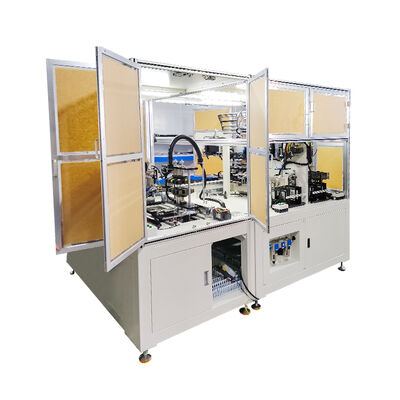

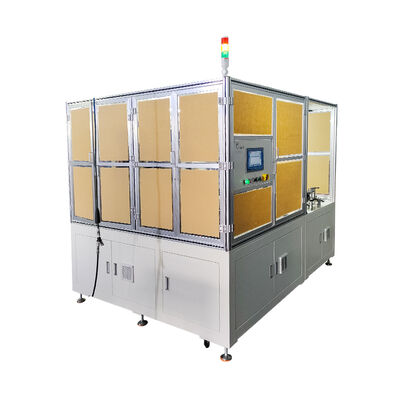

Automatic Battery Electrode Stacking Machine with 1.5~1.8 s/pcs Efficiency and ≥99% Pass Rate for Pouch Cell Manufacturing

This advanced stacking machine utilizes robotic arms to move left and right, picking up electrode pole pieces from the two extreme positions and alternately discharging electrodes. During the left-right movement, it completes Z-stacking of the diaphragm, enabling reciprocating assembly of the entire cell core through electrode pole piece manipulation.

The system employs linear servo motion modules to achieve high-speed, smooth, and precise operation. Diaphragm discharge incorporates constant tension control, while a correction mechanism ensures uniform discharge throughout the process. The electrode pole piece silo utilizes linear servo motion modules to accommodate different pole piece configurations.

Customizable according to customer requirements:
