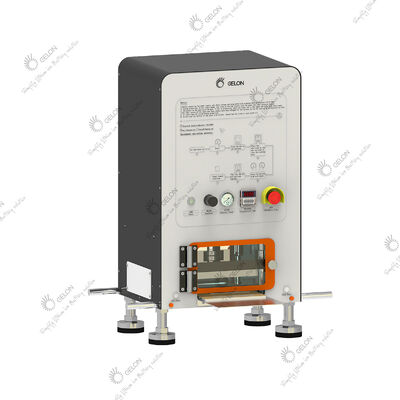

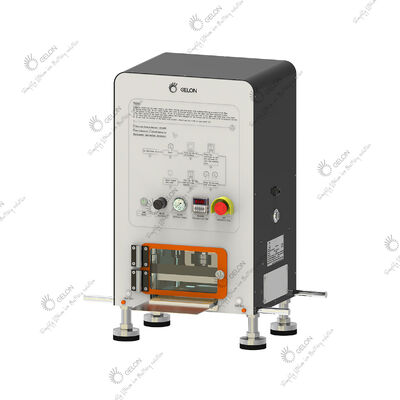

Automatic High-Precision Electrode Punching Machine for Lithium Battery Cutting with Max. 3T Pressure and 0.5mm Thickness

Automatic High-Precision Electrode Punching Machine for Lithium Battery Cutting with Max. 3T Pressure and 0.5mm Thickness
Automatic High-Precision Electrode Punching Machine for Lithium Battery Cutting with Max. 3T Pressure and 0.5mm Thickness Automatic High-Precision Electrode Punching Machine for Lithium Battery Cutting with Max. 3T Pressure and 0.5mm Thickness Automatic High-Precision Electrode Punching Machine for Lithium Battery Cutting with Max. 3T Pressure and 0.5mm Thickness

Large Image :  Automatic High-Precision Electrode Punching Machine for Lithium Battery Cutting with Max. 3T Pressure and 0.5mm Thickness

Product Details:
Place of Origin: CHINA
Brand Name: GELON
Certification: CE
Model Number: GN-S200P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood
Delivery Time: 30~45 working day
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now

Automatic High-Precision Electrode Punching Machine for Lithium Battery Cutting with Max. 3T Pressure and 0.5mm Thickness

Description
Standard Cutting Die: Cathode 56*43mm / Anode 58*45mm Die Cutting Dimension: Max. L180*W150mm
Punching Pressure: Max. 3T Punching Stroke: About 50mm
Die Life: 5000~10,000 Times Punching Thickness: Max. 0.5mm
Gas Source: 0.5~0.8 MPa Argon/nitrogen Gas(when Used Inside A Glove Box) Dimensions: L662*W582*H830mm
Net Weight: 130kg Gross Weight: 164kg

Automatic Electrode Punching Machine for Lithium Battery Electrode Cutting
Product Highlights
High-Precision Punching
Ensures accurate electrode placement for optimal battery performance.
Efficient Manufacturing
Reduces waste and increases production speed.
User-Friendly Interface
Simplifies operation for quick setup and maintenance.
Durable Construction
Built to withstand heavy industrial use.
Precision Control
Maintains consistent quality across all operations.
Automatic electrode punching machine in operation Close-up view of electrode punching mechanism Machine control panel and interface
About Gelon LIB Group
Established in 2003, Gelon LIB Group is a professional manufacturer and exporter specializing in lithium-ion battery materials, equipment and complete production lines. Most of our senior management team graduated from Central South University - China's top university for electrochemistry, which has cultivated numerous industry leaders in China's lithium-ion battery sector.
Backed by engineers with in-depth experience in lithium-ion battery material production, cell manufacturing and equipment development since 2003, our team of skilled professionals delivers not only reliable products and technologies, but also premium services and genuine value to our partners.
Company Overview
Gelon LIB Group company facility Manufacturing plant overview Company certifications and achievements Advanced manufacturing equipment
Factory Profile
Factory production area Quality control station Assembly line operations
Trade Show Participation
Gelon exhibition booth at trade show Product demonstration at industry event
Packaging & Shipping
Secure packaging for industrial equipment Shipping documentation and labels Equipment ready for shipment
Production Workflow
Initial production stage Component assembly process Quality testing phase Final assembly operations Calibration and testing Packaging preparation Finished product inspection
Frequently Asked Questions
"What is the warranty period for your machines?" and "What kind of technical support or repair services do you provide if the machine has a problem?"
Generally, our warranty period is one year. If any problems arise afterward, our engineering team will provide guidance and solutions through online and on-site after-sales services, tailored to different equipment.
"Can the machine be customized? (e.g., voltage, color, etc.)"
Yes, Besides voltage, we can customize according to the requirements of customers in different countries. For colors and other parameters and information, you can communicate with me, and our team will provide you with the most professional solution.
"What shipping methods do you offer?"
Sea freight, air freight, and express delivery are all standard transportation and logistics methods for us. Of course, the transportation method is based on the customer's specific requirements, and we will provide recommendations based on our past experience.
"How much is the shipping cost?"
Based on the weight and volume of the packaged goods, this depends on the specific product.
