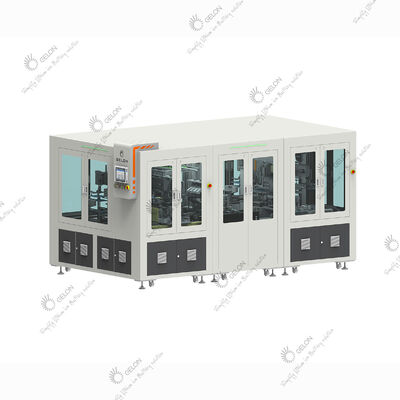

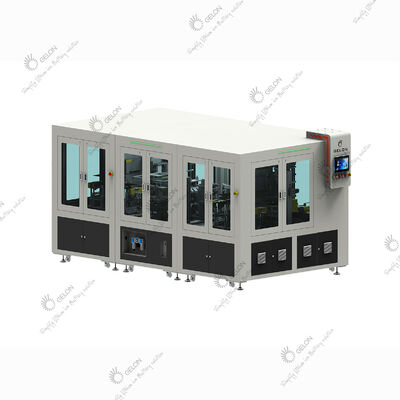

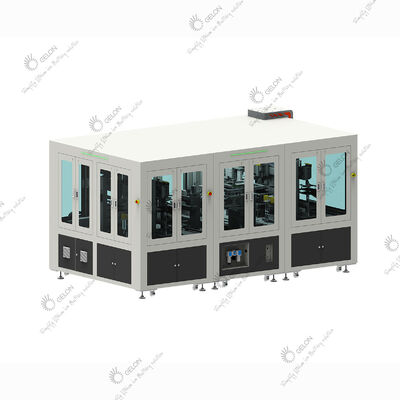

Automatic Dual-Station Z-Fold Stacking Machine with CCD Vision Positioning for High-Speed Lithium Battery Assembly

The GELON Automatic Dual-Station Z-Fold Stacking Machine is engineered for high-speed, high-precision stacking of cathode electrodes, anode electrodes, and separators in lithium battery cell manufacturing. Featuring dual-station simultaneous stacking technology, this machine significantly enhances production efficiency while maintaining exceptional stacking accuracy and product consistency.

This integrated system combines automatic separator unwinding, EPC alignment, CCD vision positioning, robotic electrode handling, Z-fold stacking, separator cutting, automatic taping, and cell unloading into one intelligent production platform. Advanced servo motion control and precision vision inspection ensure accurate electrode alignment, stable separator tension, and reliable cell assembly throughout the manufacturing process.

Designed for battery manufacturers, pilot production lines, and research institutions, this machine is ideal for high-quality pouch cell production requiring stable, efficient, and automated stacking performance.

• Dual-station simultaneous Z-fold stacking for enhanced productivity
• High-speed automatic electrode stacking capability
• CCD vision positioning system with superior alignment accuracy
• Automatic separator unwinding with EPC control
• Servo-driven robot arm handling system
• Automatic separator cutting and cell taping
• Intelligent multi-sheet detection and NG rejection
• Automatic dust collection and static elimination
• PLC touch screen control with comprehensive parameter management
• Compatible with MES communication interface
• Fully enclosed structure with FFU clean air system

• Lithium-ion pouch cell manufacturing
• Sodium-ion battery production
• Battery pilot production lines
• EV battery manufacturing
• Energy storage battery production
• Battery research institutes
• Automated battery assembly lines
