220VAC Cylinder Cell Grooving Machine with 1.2~2.0mm Adjustable Groove Depth for 18650/21700/26650/32650 Lithium Ion Battery Making

Large Image : 220VAC Cylinder Cell Grooving Machine with 1.2~2.0mm Adjustable Groove Depth for 18650/21700/26650/32650 Lithium Ion Battery Making

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-G50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2890-3290$
Packaging Details:	wooden box
Delivery Time:	30 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99sets/month

Contact Now

220VAC Cylinder Cell Grooving Machine with 1.2~2.0mm Adjustable Groove Depth for 18650/21700/26650/32650 Lithium Ion Battery Making

Description

Production Name:	Cylindrical Cell Grooving Machine	Application:	For Cylinder Cell Grooving After Sealing
Cylinder Cell Type:	18650/26650/32650/21700	Voltage:	Single-phase 220VAC±10%
Power Supply:	200W	Working Beat:	About 8pcs/min
Roll Groove Depth:	1.2~2.0mm	Roll Groove Width:	1.1~1.5mm
Supply:	Lithium Ion Battery Materials And Equipment

Cylinder Cell Grooving Machine 18650 21700 26650 Cylinder Cell Lithium Ion Battery Making Machine

Product Overview

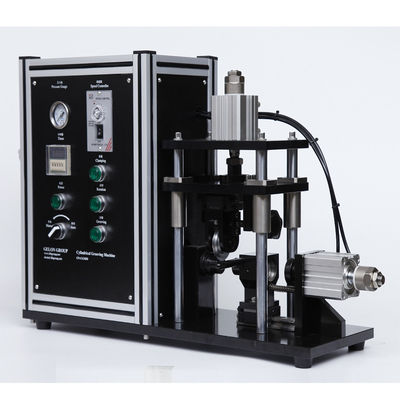

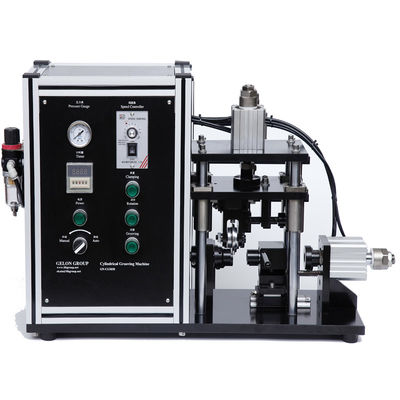

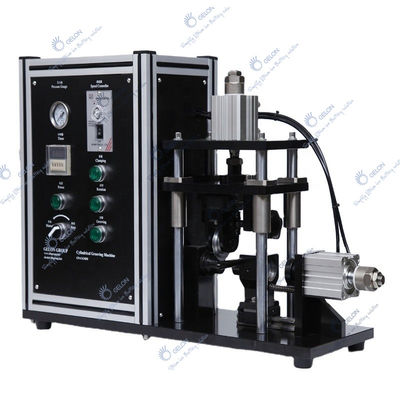

Cylindrical battery rolling groove machine is specialized equipment designed for the grooving process in cylindrical lithium-ion battery manufacturing. This precision machine ensures consistent and accurate groove formation for various battery cell sizes including 18650, 21700, and 26650 formats.

Technical Specifications

Parameter	Specification
Power Supply	Voltage: Single-phase 220VAC±10% (110VAC customizable) Frequency: 50Hz/60Hz Power: 200W

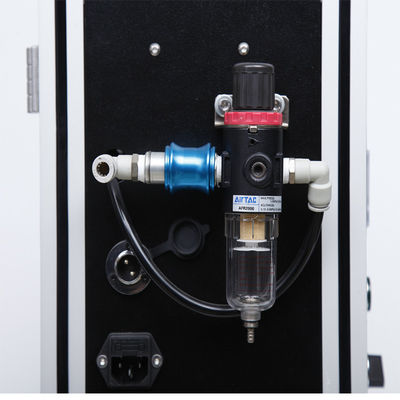

Air Source	0.5-0.8MPa compressed air
Operating Environment	Recommended ambient temperature: 25±3℃ Humidity: 30~90RH Environment: No vibration and electromagnetic interference
Groove Depth	1.2~2.0mm adjustable
Groove Width	1.1~1.5mm (customizable according to requirements)
Processing Accuracy	±0.1mm
Hob Life	≥1 million cycles

Tag:

Contact Person: Ekain Zhang

Tel: +8618669965529

Fax: 86-0539-8067529
