Vacuum Pre-sealing Machine for Lithium Battery Pouch Cell with 180℃ Sealing Temperature, Adjustable Sealing Pressure and Compact Glove Box Compatible Design

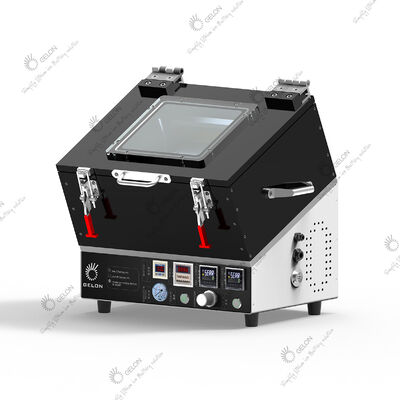

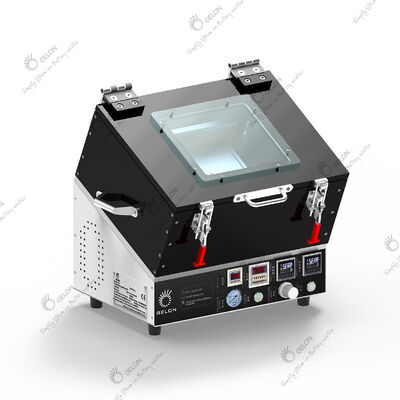

Large Image : Vacuum Pre-sealing Machine for Lithium Battery Pouch Cell with 180℃ Sealing Temperature, Adjustable Sealing Pressure and Compact Glove Box Compatible Design

Product Details:

Place of Origin:	China
Brand Name:	Gelon

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	3250-5990USD
Packaging Details:	Standard Export Carton
Delivery Time:	30-45 Working Days

Contact Now

Vacuum Pre-sealing Machine for Lithium Battery Pouch Cell with 180℃ Sealing Temperature, Adjustable Sealing Pressure and Compact Glove Box Compatible Design

Description

Coating Length:	250-1000mm	Sealable Battery Size:	Max L180mmW180mmH10mm
Sealing Temperature:	Standard 180 ℃	Compressed Air:	0.5~0.8MPa
Material:	Aluminum Shell	Pneumatic Control:	Air Pressure At 0.4-0.6MPa
Cutting Thickness:	Max.0.5mm	Roll Width:	100mm
Operatingtemperaturerange:	15°C To 35°C	Punching Pressure:	Max. 1T,For Electrode 500Kg(0.5MPa)
Timing Range:	0~9999min	Die Life:	5,000~10,000
Sealing Pressure:	Through Air Pressure Regulation	Power:	1kw
Filling Options:	Two Fillings(adjustable)

Vacuum Pre-sealing Machine for Lithium Battery Pouch Cell

Product Overview

The GELON Vacuum Pre-sealing Machine GN-HS200V is specially designed for the vacuum pre-sealing process of pouch cell batteries after electrolyte filling and aging. The equipment integrates vacuum extraction and thermal sealing functions to effectively remove gas inside the pouch cell and achieve reliable sealing of aluminum laminated film packaging.

The machine adopts a vacuum chamber structure with upper and lower sealing heads. During operation, the chamber creates a negative pressure environment, and the heated sealing head softens the aluminum-plastic film through thermal conduction to complete the sealing process. The sealing pressure can be adjusted through a pressure regulating valve to meet different battery process requirements.

With compact design, excellent vacuum retention capability, and glove box compatibility, GN-HS200V is suitable for lithium battery laboratories, pilot production lines, and pouch cell manufacturing applications requiring stable and precise pre-sealing performance.

Main Features

Designed for pouch cell vacuum pre-sealing process
Integrated vacuum chamber and hot sealing system
Adjustable sealing pressure and sealing time
Brass sealing head with excellent thermal conductivity
Efficient heating performance with reduced energy consumption
Excellent vacuum retention capability
Pneumatic driven sealing head with precise vertical movement
Observation window for real-time process monitoring
Compact structure suitable for glove box operation
Compatible with laboratory and pilot production applications

Technical Specifications

Item	Specification
Product	Vacuum Pre-sealing Machine
Model	GN-HS200V
Application	Pouch Cell Battery Pre-sealing
Sealing Method	Vacuum Hot Sealing
Upper/Lower Sealing Head Temperature	Recommended 180℃, Max. 200℃
Vacuum Level	≥ -90 kPa (Adjustable)
Sealing Time	3-6 s (Adjustable: 0-99 s)
Seal Thickness	≤0.5 mm
Sealing Head Length	200 mm
Maximum Battery Size	180 × 180 × 10 mm
Maximum Sealing Edge Width	6 mm (Standard)
Gas Source	0.5-0.7 MPa Argon/Nitrogen or Compressed Air
Power Supply	AC220V/50Hz, AC110V/60Hz Customized
Vacuum Source	Provided by Customer
Power	1800 W
Machine Dimensions	Approx. 557 × 460 × 529 mm
Packaging Dimensions	Approx. 740 × 640 × 760 mm
Net Weight	Approx. 80 kg
Gross Weight	Approx. 110 kg
Installation	Glove Box Compatible
Warranty	1 Year

Applications

Lithium-ion pouch cell manufacturing
Pouch battery assembly lines
Battery research laboratories
Pilot battery production
New energy battery development
University and research institute projects
Glove box battery experiments
