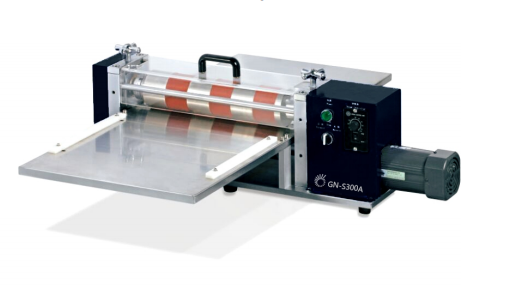

Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife

Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife
Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife
Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife

Large Image :  Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S300A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 6000-9000$
Packaging Details: wooden box
Delivery Time: 30 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 10sets/month
Contact Now

Lab Lithium Cell Electrode Electric Slitting Machine with ≤1500mm Maximum Slitting Length, ±0.05mm Accuracy, and D2 Material Knife

Description
Name: Electric Slitting Machine Burr Control: Longitudinal ≤15μm, Transverse ≤30μm
Cutting Material: Copper Foil, Aluminum Foil, Cathode And Anode Electrodes Material Thickness: 15—350um
Maximum Width Of Incoming Material: 300mm Minimum Slitting Width: ≥50mm
Maximum Slitting Length: ≤1500mm Slitting Width Accuracy: ±0.05mm
Highlight:

≤1500mm Maximum Slitting Length Electric Slitting Machine

,

±0.05mm Slitting Width Accuracy Lithium Cell Electrode Slitting Machine

,

D2 Material Slitting Knife Lab Slitting Machine

Lab Lithium Cell Electrode Electric Slitting Machine
Overview

This machine utilizes circular cutter roller slitting technology to precisely cut lithium-ion battery electrodes. The system features manual feeding with automatic discharge functionality. Operators position pre-cut electrodes against the feed guide edge and gently guide them into the cutting blade system to achieve the desired length specifications.

Key Features
  • Chip-type feeding system with upper and lower circular knife cutting method
  • Motor-driven operation with feeding guide for minimal cutting burrs
  • D2 material slitting knives with specialized heat treatment for optimal cutting performance and extended service life
  • Stainless steel material plates at both inlet and outlet positions
