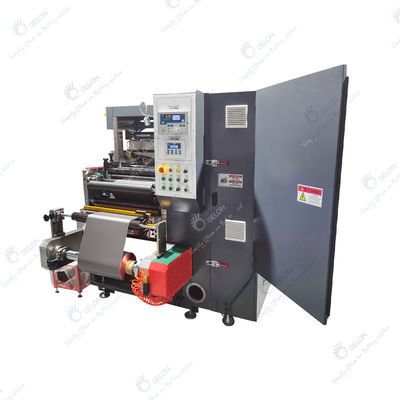

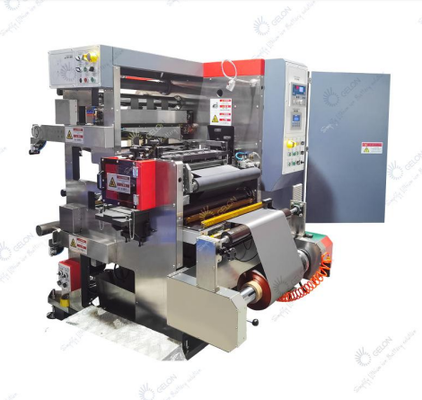

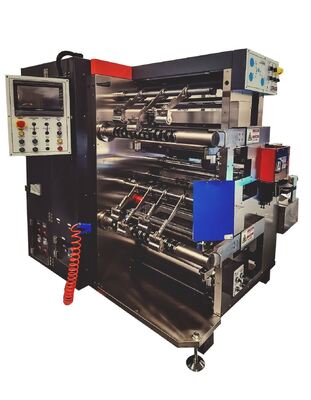

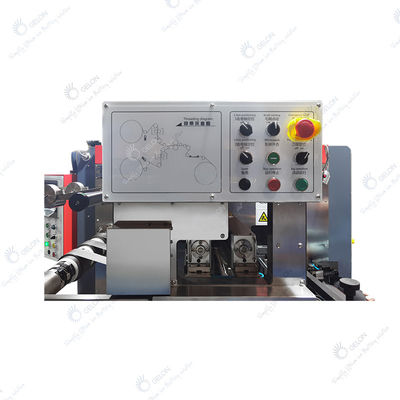

Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width

Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width
Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width
Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width

Large Image :  Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 77000-80000$
Packaging Details: wooden box
Delivery Time: 60 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 10sets/month
Contact Now

Lithium Battery Electrode Slitting Machine with ±0.05mm Precision, Circular Knife Cutting, and 40-200mm Reel Width

Description

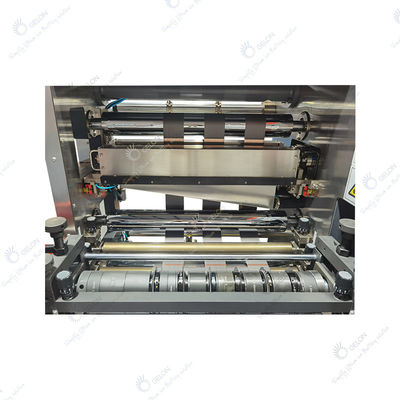

Suitable For Substrate Width: 200mm -600mm Slitting System: Circular Knife Cutting
Unwinding Roll: 3 In. Mechanical Speed: 1～60m/min
Reel Width After Slicing: 40-200mm Slitting Width Precision: ±0.05mm
Highlight:

±0.05mm Slitting Width Precision Electrode Slitting Machine

,

Circular Knife Cutting Slitting Machine

,

40-200mm Reel Width Lithium Battery Electrode Slitting Machine

Lithium Battery Automatic Electrode Slitting Machine
Equipment Specifications
Installation Environment Requirements:
  • Ambient temperature: ≤ 28°C
  • Relative humidity: RH ≤ 70%
  • Field air must be kept dry and smooth (free of water and oil)
Ancillary Facilities:
  • Power supply: 3-phase 5-wire 380V, 50Hz
  • Voltage fluctuation range: +8% to -8%
  • Total power supply: 6kW
  • Compressed air: After drying, filtering and stabilizing
  • Outlet pressure: > 5.0 kg/cm²
Equipment Dimensions & Weight:
Overall dimensions: 1150 × 1100 × 1350 mm (L × W × H)
Mass: Approximately 300kg
Total volume: 2.5m³
Device Appearance:
Main color: Milky white
