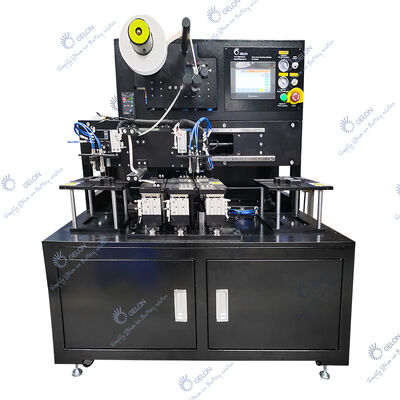

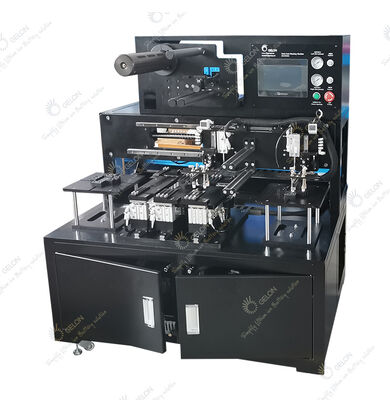

Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction

Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction
Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction

Large Image :  Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DP200S
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: US$19700/set
Packaging Details: Export standard package
Delivery Time: 1 month
Payment Terms: T/T
Supply Ability: 100set/month
Contact Now

Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction

Description
Stacking Type: Z-stacking Guide Roller Width: 220mm
Substrate Widt: Max.200mm Separator Core: 3 Inches
Stacking Speed: 2-6S/piece (typical Value) Stacking Size: Length:56-200mm; Width:45-160mm (including Tab Size)
Stacking Precision: ≤±0.5mm
Highlight:

Semi-auto battery cell stacking machine

,

Z type electrode stacking machine

,

Automatic electrode suction stacking machine

Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction


Overview :
1. This machine is specially designed for large square lithium-ion batteries, using a Z-shaped stacking method. The equipment achieves manual loading, subsequent electrode position correction, and a fully automatic stacking process. By adjusting the fixtures, different sizes can be realized, making it suitable for the development and sample production of stacked lithium-ion batteries.
2. The equipment features a single cantilever structure design, with automatic servo tension control for web separation and automatic EPC control.
Features:
1. Z-shaped automatic stacking, with automatic servo constant tension control for the separator. Figure 1 is the adjustment of the stacking table, Figure 2 is the adjustment of the cathode and anode electrodes, Figure 3 is the automatic unwinding of the separator, and Figure 4 is the adjustment of the suction cup.
2. Automatic counting of stacking pieces, manual reset, and design of digital counter. Automatic photoelectric EPC control for the separator.
3. Pneumatic cylinder actions are controlled by button switches, driven by PLC.
4. Manual placement of electrodes, with fixture-assisted positioning to ensure the neatness of stacking.
5. Adopting a compatible design to meet the requirements of different cell size variations.
Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode SuctionSemi-auto Battery Cell Stacking Machine Z type with Automatic Electrode SuctionSemi-auto Battery Cell Stacking Machine Z type with Automatic Electrode SuctionSemi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction
Name Parameters Remarks
Stacking Type Z-stacking
Guide Roller Width 220mm
Substrate Width Max.200mm
Separator Core 3 inches
Separator Roll Diameter Max.200mm
Stacking Speed 2-6S/piece (typical value) Freely set
Stacking Thickness Max.20m
Stacking Size Length:56-200mm;
Width:45-160mm
(including tab size)		 Customized fixture according to customer size
Stacking Precision ≤±0.5mm Relative position size between electrodes
Gas source 0.5~0.8MPa Argon, Nitrogen gas (inside glove box), or 0.5~0.8MPa Compressed Air If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used if the equipment is placed outside the glove box.
Power Supply AC220V/50Hz,
AC110V/60Hz		 Customized
Power 1500W
Equipment Dimensions Approx. L1040*W840*H1210mm
Size of Wooden Box after Equipment Packaging Approx. L1190*W990*H1400mm
Net Weight Approx. 410kg
Gross Weight Approx. 445kg
Warranty Period 1-year warranty, lifetime maintenance
Semi-auto Battery Cell Stacking Machine Z type with Automatic Electrode SuctionSemi-auto Battery Cell Stacking Machine Z type with Automatic Electrode SuctionSemi-auto Battery Cell Stacking Machine Z type with Automatic Electrode SuctionSemi-auto Battery Cell Stacking Machine Z type with Automatic Electrode Suction
