Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode

Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode
Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode
Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode

Large Image :  Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S100P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1750-2010$
Packaging Details: wooden box
Delivery Time: 30 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 10sets/month
Contact Now

Lithium Cell Electrode Punching Machine with Vertical Burr ≤100μm and Max. L120*W80mm Die Cutting Dimension for Pouch Cell Electrode

Description
Standard Cutting Die: Cathode 56*43mm ; Anode 58*45mm Die Cutting Dimension: Max. L120*W80mm
Punching Pressure: Max. 1T Punching Stroke: 12mm
Die Life: 5000~10,000 Times Die Cutting Burrs: Vertical Burr ≤100μm Horizontal Burr ≤100μm
Power Source: AC220V/50Hz.110V/60Hz
Highlight:

Vertical burr ≤100μm Lithium Cell Electrode Punching Machine

,

Max. L120*W80mm Die Cutting Dimension Pouch Cell Electrode Die Cutting Machine

,

Pneumatic Punching Method Battery Electrode Punching Machine

Lithium Cell Electrode Punching Machine for Pouch Cell Electrode Prismatic Battery
Product Overview

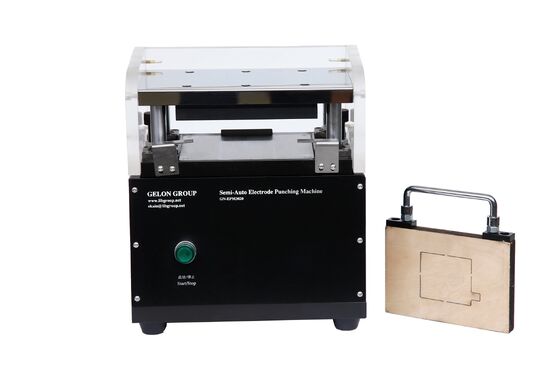

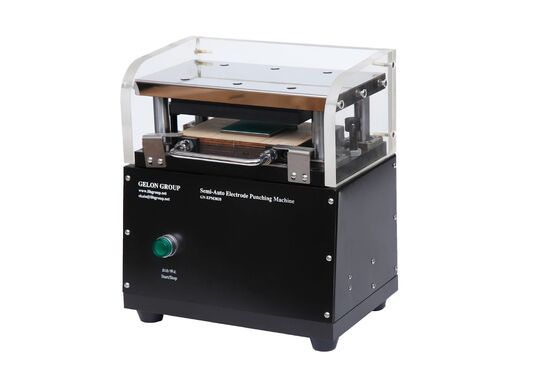

This specialized pneumatic device is designed for precision die-cutting of cathode and anode electrodes in lithium-ion stacked batteries, featuring glove box compatibility and customizable die configurations.

Key Applications

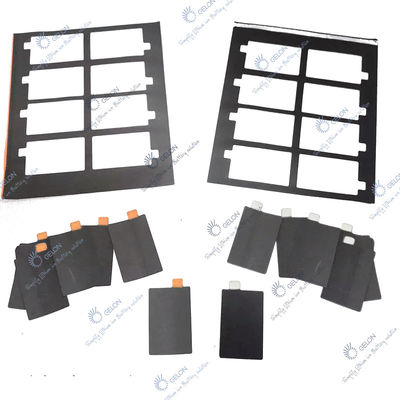

  • Die-cutting cathode and anode electrodes for lithium-ion stacked batteries
  • Pneumatic single-piece electrode punching suitable for glove box operation
  • Customizable die shapes for various battery electrode sizes and formations
  • Chip electrode feeding with die template cutting in controlled environments
Standard Configuration

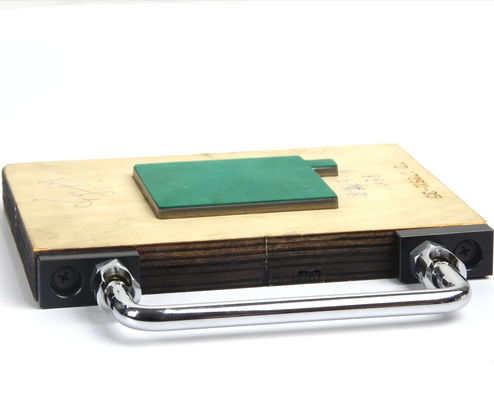

Includes one set of cathode and anode electrode dies, with custom configurations available to meet specific customer requirements.

Technical Features
Cylinder Driven Operation: Adjustable cutting force through precise air pressure control

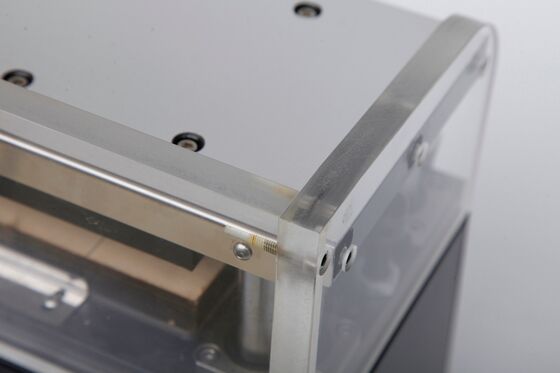

Precision Construction: High-strength frame with precision upper/lower pressure plates and high-performance cutting tools
Quality Output: Minimal burrs with no indentation or appearance defects on die-cut products

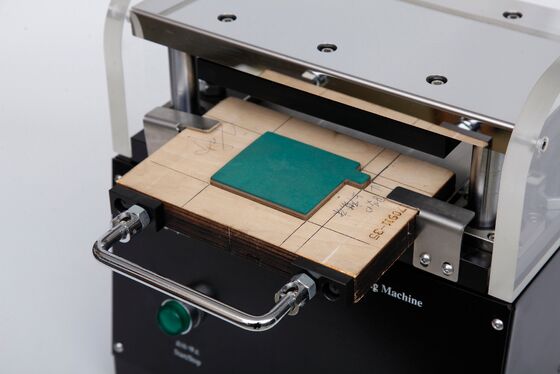

Safety Design: Pull-out upper and lower dies ensure secure and safe operation
