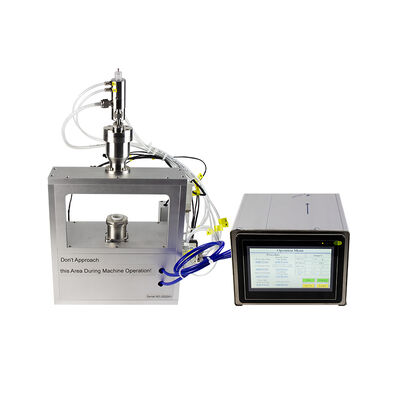

Desktop Electrolyte Filling Machine with 0-7.2mL Capacity and Precision +-1% for 18650/21700/32650 Batteries

Desktop Electrolyte Filling Machine with 0-7.2mL Capacity and Precision +-1% for 18650/21700/32650 Batteries
Desktop Electrolyte Filling Machine with 0-7.2mL Capacity and Precision +-1% for 18650/21700/32650 Batteries
Desktop Electrolyte Filling Machine with 0-7.2mL Capacity and Precision +-1% for 18650/21700/32650 Batteries Desktop Electrolyte Filling Machine with 0-7.2mL Capacity and Precision +-1% for 18650/21700/32650 Batteries

Large Image :  Desktop Electrolyte Filling Machine with 0-7.2mL Capacity and Precision +-1% for 18650/21700/32650 Batteries

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-EF18650
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 8500-9000$
Delivery Time: 30 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 10sets/month
Contact Now

Desktop Electrolyte Filling Machine with 0-7.2mL Capacity and Precision +-1% for 18650/21700/32650 Batteries

Description
Capacity: 0-7.2mL,precision+-1% Battery: 18650/21700/32650
Speed: About 1minute Finish One Battery Power: 220V
Air: 75PSI
Highlight:

Precision +-1% Electrolyte Filling Machine

,

0-7.2mL Capacity Battery Electrolyte Dispenser

,

Desktop Design Cylindrical Cell Filler

18650/21700/32650 Cylindrical Cell Electrolyte Filling Machine
This desktop electrolyte filler features a speed and volume control console with injection pump for high-precision dispensing applications. The control console enables customization of dispensing volume through an internal stepper motor, while the injection pump precisely adjusts each dispensation volume. This machine is an ideal tool for electrolyte preparation in battery research and development.
System Configuration
Component Specification
Rack Construction Stainless steel and alumina alloy
Automatic Lifting Device 1 station with pneumatic control of spring lifting mechanism
Vacuum Injection System 1 set with 316 stainless steel pouring head container featuring double pneumatic lift-off valve structure
Precision Metering Pump Model: E2-R12T
Stepper motor-driven piston pump with precision ceramic rotary valve
Injection volume capacity: 7.2ML
Pneumatic Control SMC pneumatic control valve module
Controller PLC controller with color touch screen configuration
Piping All liquid piping utilizes PFA plastic pipe
